[Technische Daten]
Variant Details

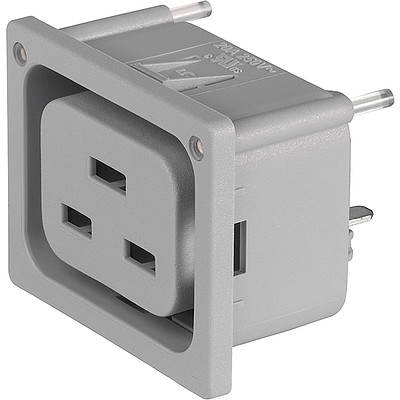

Grey, Light Pipe Position C and D

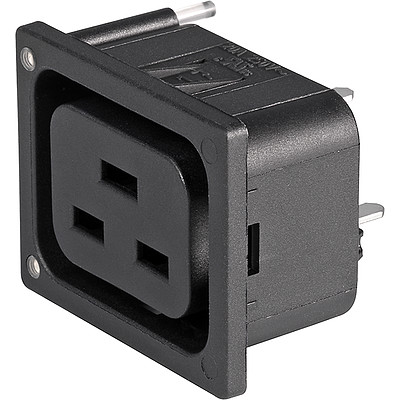

Black, Light Pipe Position B and C

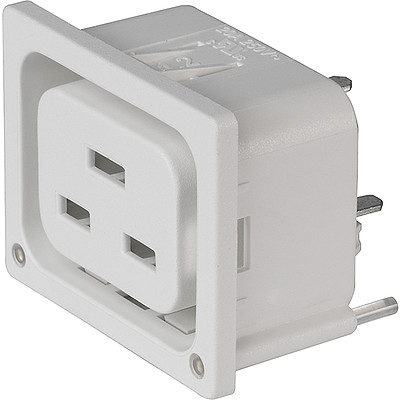

White, Light Pipe Position A and B
3 Variants
type J
70° C |
Description
- Panel mount: Snap-in version front side:
- IEC Outlet type J, Pin temperature -25 °C to 70 °C, Protection class I
- Ideal for smart PDU and UPS applications
- Pre-assembled light pipes
- For PCB mounting
Unique Selling Proposition
- Integrated Light Pipe for a space saving status indication
- Clear assignment of the status indication
- Optionally up to four Light Pipes
- Cord retention systems of V-Lock, P-Lock and TwyLock supported
Other versions on request
- Panel thickness 1.0, 1.2, 2.0, 2.5 und 3.0 mm
- Other Light Pipe Arrangements
- Other Light Pipe lengths: 32.7, 37.4 to 50 mm
- Samples available in grey and white
The integration of light pipes in the appliance outlet provides status indication in smart PDUs. See PDU Landing Page for more information. Power Distribution Units
Ratings IEC
16 A / 250 VAC; 50 Hz
Ratings UL/CSA
20 A / 250 VAC; 60 Hz
Dielectric Strength
> 1.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temperature
-25 °C to 70 °C
IP-Protection
front side IP40 acc. to IEC 60529
Protection against electric shock
Suitable for appliances with protection class I acc. to IEC 61140
Terminal
For PCB mounting
Panel Thickness S
Snap-in: 1.5 mm
Light Pipe Length L
ø2 x 27.5 mm
Material: Housing
Thermoplastic, black / grey / white, UL 94V-0
Appliance inlet/-outlet
type J acc. to IEC 60320-1 and
IEC 60320-3, UL 60320-1, CSA C22.2 no. 60320-1-11 (for cold conditions) pin-temperature 70 °C, 16 A, Protection Class I
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 4797-5
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
VDE | Certificate Number: 40046643 | |
|
UL | UR File Number: E103791 | |
|
CCC | CCC Certificate Number: 2018180204005525 |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
| Designed according to | IEC 60320-1 | Appliance couplers for household and similar general purposes | |
| Designed according to | UL 60320-1 | Standard for Attachment Plugs and Receptacles | |
| Designed according to | CSA C22.2 no. 60320-1-11 | General Use Receptacles, Attachment Plugs, and Similar Wiring Devices |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
| Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements | |
| Suitable for applications acc. | IEC 60335-1 | Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13. |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | ||
|
SCHURTER AG | Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13. |
LOADING...
[Kurze Variantentabelle] 4797-5 [Öffne vollständige Tabelle] 4797-5
Mating Inlets/Plugs (2)
Mating Inlets/Plugs shuttered (4)
3-100-362
VAC19KS, Interconnection, V-Lock cord retaining, 2.0 m, Connector IEC C19, H05VV-F3G1.5 / SJT 3x14 AWG, black
3-100-363
VAC19KS, Interconnection, V-Lock cord retaining, 3.0 m, Connector IEC C19, H05VV-F3G1.5 / SJT 3x14 AWG, black
6051.2147
VAC19KS, Interconnection, V-Lock cord retaining, 1.0 m, Connector IEC C19, H05VV-F3G1.5, black
6051.2197
VAC19KS, Interconnection, V-Lock cord retaining, 1.0 m, Connector IEC C19, H05VV-F3G1.5 / SJT 3x14 AWG, black
