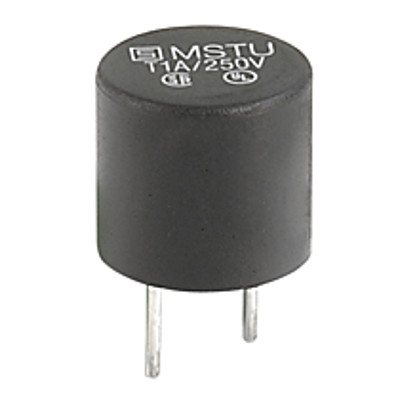

MSTU 250 GS Non-resettable fuses: Subminiature Fuse, 8.5 mm, Time-Lag T, 250 VAC, cULus

Description

-	Directly solderable on printed circuit boards
-	Low Breaking Capacity

Standards

-	UL 248-14
-	CSA C22.2 no. 248.14

Approvals

- UL File Number:	E41599
- CSA File Number:	51172

References

Packaging Details
Corresponding Fuseholder FMS__250V_

Weblinks

pdf-datasheet, General Product Information , Approvals, CE declaration of conformity, RoHS , CHINA-RoHS , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings , Detailed request for product

Top

Technical Data

Rated Voltage	250 VAC
Rated Current	0.063 - 10 A
Breaking Capacity	50 A
Characteristic	Time-Lag T
Mounting	PCB,THT
Admissible Ambient Air Temp.	-40 °C to 85 °C
Climatic Category	40/085/21 acc. to IEC 60068-1
Material: Housing	Thermoplastic, UL 94V-0
Material: Terminals	Tin-Plated Copper
Unit Weight	0.53 g
Storage Conditions	0 °C to 40 °C, max. 70% r.h.
Product Marking	, Type, Current, Dielectric strength, Characteristic, Approvals

Soldering Methods	Wave, Iron
Solderability	235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta
Resistance to Soldering Heat	260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb
Current Carrying Capacity	acc. to EIA/IS-722, Test 4.3.3
Moisture Resistance Test	MIL-STD-202, Method 106E (50 cycles in a temp./mister chamber)
Terminal Strength	MIL-STD-202, Method 211A Deflection of board 1 mm for 1 minute
Case Resistance	acc. to EIA/IS-722, Test 4.7 >100 MΩ (between leeds and body)
Mechanical Shock	(acc. to EIA/IS-722, Test 4.9)
Vibration, High Frequency	MIL-STD-202, Method 204D Shock 20 gn, 20 min, 10-2 kHz, 12 cyc.
Resistance to Solvents	MIL-STD-202, Method 215A
Flammability	UL 94V-0 (acc. to EIA/IS-722, Test 4.12)

Top

Dimensions

Drilling diagram

Top

CAD

Electrical Data

Pre-Arcing Time

Rated Current In	1.0 x Inmin.	2.0 x Inmax.
0.063 A - 10 A	4 h	60 s

Top

Time-Current-Curves

Time in Seconds

Multiple of Rated Current In

Top

Variants

Tabel of Variants

Rated Current [A]	Rated Voltage [VAC]	Breaking Capacity	Voltage Drop 1.0 In typ. [mV]	Power Dissipation 1.0 In typ. [mW]	Melting I²t 10.0 In typ. [A²s]		S	L	T	Order Number	MOQ [?] Term: MOQ Explanation: Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders. Please contact us for assistance: Contact Form Close	PU [?] Term: Packaging unit Explanation: The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity). Please contact SCHURTER for further assistance: Contact Form Close

0.063	250	1)	544	37	0.0176	•	•			0034.7103	1	100
0.08	250	1)	413	38	0.0313	•	•			0034.7104	1	100
0.1	250	1)	318	35	0.0456	•	•			0034.7105	1	100
0.125	250	1)	289	40	0.0567	•	•			0034.7106	1	100
0.16	250	1)	219	38	0.0692	•	•			0034.7107	1	100
0.2	250	1)	262	60	0.133	•	•			0034.7108	1	100
0.25	250	1)	202	55	0.258	•	•			0034.7109	1	100
0.315	250	1)	168	49	0.361	•	•			0034.7110	1	100
0.4	250	1)	159	69	0.528	•	•			0034.7111	1	100
0.5	250	1)	143	78	0.898	•	•			0034.7112	1	100
0.63	250	1)	124	85	2.24	•	•			0034.7113	1	100
0.8	250	1)	114	98	4.05	•	•			0034.7114	1	100
1	250	1)	100	107	6.85	•	•			0034.7115	1	100
1.25	250	1)	94	127	7.93	•	•			0034.7116	1	100
1.6	250	1)	85	145	17.5	•	•			0034.7117	1	100
2	250	1)	80	175	28.6	•	•			0034.7118	1	100
2.5	250	1)	75	205	40.9	•	•			0034.7119	1	100
3.15	250	1)	71	240	55	•	•			0034.7120	1	100
4	250	1)	72	303	67.2	•	•			0034.7121	1	100
5	250	1)	70	376	142	•	•			0034.7122	1	100
6.3	250	1)	68	488	287	•	•			0034.7123	1	100
8	250	1)	50	445	422	•	•			0034.7124	1	100
10	250	1)	50	630	564	•	•			0034.7125	1	100
0.063	250	1)	544	37	0.0176	•		•		0034.7203	1	100
0.08	250	1)	413	38	0.0313	•		•		0034.7204	1	100
0.1	250	1)	318	35	0.0456	•		•		0034.7205	1	100
0.125	250	1)	289	40	0.0567	•		•		0034.7206	1	100
0.16	250	1)	219	38	0.0692	•		•		0034.7207	1	100
0.2	250	1)	262	60	0.133	•		•		0034.7208	1	100
0.25	250	1)	202	55	0.258	•		•		0034.7209	1	100
0.315	250	1)	168	49	0.361	•		•		0034.7210	1	100
0.4	250	1)	159	69	0.528	•		•		0034.7211	1	100
0.5	250	1)	143	78	0.898	•		•		0034.7212	1	100
0.63	250	1)	124	85	2.24	•		•		0034.7213	1	100
0.8	250	1)	114	98	4.05	•		•		0034.7214	1	100
1	250	1)	100	107	6.85	•		•		0034.7215	1	100
1.25	250	1)	94	127	7.93	•		•		0034.7216	1	100
1.6	250	1)	85	145	17.5	•		•		0034.7217	1	100
2	250	1)	80	175	28.6	•		•		0034.7218	1	100
2.5	250	1)	75	205	40.9	•		•		0034.7219	1	100
3.15	250	1)	71	240	55	•		•		0034.7220	1	100
4	250	1)	72	303	67.2	•		•		0034.7221	1	100
5	250	1)	70	376	142	•		•		0034.7222	1	100
6.3	250	1)	68	488	287	•		•		0034.7223	1	100
8	250	1)	50	445	422	•		•		0034.7224	1	100
10	250	1)	50	630	564	•		•		0034.7225	1	100
0.063	250	1)	544	37	0.0176	•			•	0034.7303	1
0.08	250	1)	413	38	0.0313	•			•	0034.7304	750	750
0.1	250	1)	318	35	0.0456	•			•	0034.7305	750	750
0.125	250	1)	289	40	0.0567	•			•	0034.7306	750	750
0.16	250	1)	219	38	0.0692	•			•	0034.7307	750	750
0.2	250	1)	262	60	0.133	•			•	0034.7308	750	750
0.25	250	1)	202	55	0.258	•			•	0034.7309	750	750
0.315	250	1)	168	49	0.361	•			•	0034.7310	750	750
0.4	250	1)	159	69	0.528	•			•	0034.7311	750	750
0.5	250	1)	143	78	0.898	•			•	0034.7312	750	750
0.63	250	1)	124	85	2.24	•			•	0034.7313	750	750
0.8	250	1)	114	98	4.05	•			•	0034.7314	750	750
1	250	1)	100	107	6.85	•			•	0034.7315	750	750
1.25	250	1)	94	127	7.93	•			•	0034.7316	750	750
1.6	250	1)	85	145	17.5	•			•	0034.7317	750	750
2	250	1)	80	175	28.6	•			•	0034.7318	750	750
2.5	250	1)	75	205	40.9	•			•	0034.7319	750	750
3.15	250	1)	71	240	55	•			•	0034.7320	750	750
4	250	1)	72	303	67.2	•			•	0034.7321	750	750
5	250	1)	70	376	142	•			•	0034.7322	750	750
6.3	250	1)	68	488	287	•			•	0034.7323	750	750
8	250	1)	50	445	422	•			•	0034.7324	750	750
10	250	1)	50	630	564	•			•	0034.7325	750	750
1) 50 A @ 250 VAC

Top

Packaging Unit

S =	Plastic Bag (100 pcs.)
L =	Bulk (100 pcs.)
T =	Taped 36 cm Reel (750 pcs.)
