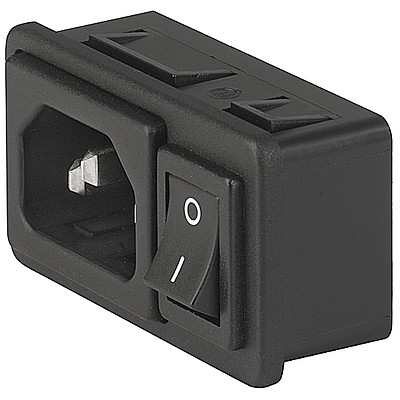

6010-K GST Power Entry Module without Filter: IEC Appliance Inlet C14 with Line Switch 1- or 2-pole
Description
| - |
Panel Mount: Snap-in version, from front side |
| - |
Solder, Quick Connect or Screw Terminals |
Approvals
| - |
UL File Number:E45115 |
| - |
CSA File Number:1406497 |
Characteristics
| - |
Line switch non-illuminated or illuminated |
Weblinks
pdf-datasheet,
General Product Information , Approvals, CE declaration of conformity,
RoHS ,
CHINA-RoHS ,
Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
CAD-Drawings ,
Accessories ,
Product News
, Detailed request for product
,
White Paper
| Ratings IEC |
10 A / 250 VAC; 50 Hz |
| Ratings UL/CSA |
15 A / 250 VAC; 60 Hz |
| Dielectric Strength |
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz) |
| Allowable Operation Temp. |
-25 °C to 70 °C |
| Degree of Protection |
from front side IP 20 acc. to IEC 60529 |
| Protection Class |
Suitable for appliances with protection class I acc. to IEC 61140 |
| Terminal |
Solder, Quick Connect or Screw Terminals |
| Panel Thickness s |
Snap-in
Snap-in: 1/1.5/2/2.5/3 mm |
| Material: Housing |
PA6, black or grey, UL 94V-0 |
| Line Switch |
Rocker switch 1 or 2 pole, illuminated black or grey, acc. to IEC 61058-1
Technical Details
|
|
Length of the terminal please find at the order code configuration table
Dimension "X" please ref. to table order code
|
6010-K - - A B C N - D - E G O P
The characters are placeholders for the correspondingly keys of selections from the key tables.
6010-K - - A B C N - D - E G O P = Terminals
| Terminal L |
|
Configuration key |
| screw terminal |
|
A |
| short solder terminal (L = 4.8 mm) |
|
2 |
| long solder terminal (L = 8.5 mm) |
|
3 |
| Blade terminal (4.8 x 0.8 mm) |
|
8 |
| Blade terminal (6.3 x 0.8 mm) |
|
9 |
6010-K - - A B C N - D - E G O P = Terminals
| Terminal N |
Configuration key |
| screw terminal |
A |
| short solder terminal (L = 4.8 mm) |
2 |
| long solder terminal (L = 8.5 mm) |
3 |
| Blade terminal (4.8 x 0.8 mm) |
8 |
| Blade terminal (6.3 x 0.8 mm) |
9 |
| Symbols similar as in table A |
6010-K - - A B C N - D - E G O P = Terminals
| Terminal Ground |
Configuration key |
| screw terminal |
A |
| short solder terminal (L = 4.8 mm) |
2 |
| long solder terminal (L = 8.5 mm) |
3 |
| Blade terminal (4.8 x 0.8 mm) |
8 |
| Blade terminal (6.3 x 0.8 mm) |
9 |
| Symbols similar as in table A |
6010-K - - A B C N - D - E G O P = Terminal Fuseholder
| Terminal Fuseholder |
Configuration key |
|
|
6010-K - - A B C N - D - E G O P = Color
| Color |
Configuration key |
| Black |
A |
| Grey |
B |
|
6010-K - - A B C N - D - E G O P = Style
| Style |
Configuration key |
| snap-in (x=panel thickness) |
4 |
6010-K - - A B C N - D - E G O P = Dimension X
| Dimension "X" |
Configuration key |
| 15 |
|
| 20 |
|
| 25 |
|
| 30 |
|
| The dimension "X" is dispalyed in (1/10 mm). This information is also valid for the order code |
6010-K - - A B C N - D - E G O P = Features
| Features |
Configuration key |
| not used |
0 |
|
6010-K - - A B C N - D - E G O P = Switches
| Switches |
Configuration key |
| unipolar switch, 4,8mm blade terminal, black rocker |
2 |
| unipolar switch, solder terminal, black rocker |
3 |
| bipolar switch, 4,8mm blade terminal, black rocker |
4 |
| bipolar switch, solder terminals, black rocker |
5 |
| bipolar switch, 4,8mm blade terminal, rocker red illuminated |
6 |
| bipolar switch, solder terminal, rocker red illuminated |
7 |
| bipolar switch, 4,8mm blade terminals, rocker green illuminated |
8 |
| bipolar switch, solder terminals, rocker green illuminated |
9 |
» Variants
|
Config. Code |
Description |
Order Number |
Most Popular
[?]
Term: Most Popular
Explanation:
Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact Form
Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER
|
MOQ
[?]
Term: MOQ
Explanation:
Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders.
Please contact us for assistance:
Contact Form
|
PU
[?]
Term: Packaging unit
Explanation:
The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity).
Please contact SCHURTER for further assistance:
Contact Form
|
e-Shop
[?]
Term: e-Shop
Explanation:
The e-Shop is intended as a simple and easy way to get samples. Please observe the MOQ (minimum order quantity).
The below listed links for the respective part numbers link to the current stock. To assure effective availability before entering the e-Shop.
e-Shop
The access to the e-Shop is also possible without the offered part number selection is possible if you enter the respective part number and the required amount.
You can place an inquiry if a product is currently not available. Products that are not listed with a link to the e-Shop are only available by placing a request. Please assure hereby to indicate the respective part number.
Contact Form
SCHURTER likes to assure with this approach the fastest way to get samples of current items on stock.
|
SCHURTER Stock Check
[?]
Term: SCHURTER Stock Check
Explanation:
The following links reffers to the inquiry form for current stock information of the selected products. It allows checking for the directly available amount as well as the expected delivery time if no or not enough stock is available.
The
SCHURTER Stock Check
Stock Check SCHURTER
|
Distributor Stock Check
[?]
Term: Distributor Stock Check
Explanation:
The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The
Distributor Stock Check
Stock Check Distributor
|
| 6010-K--7770-A-4256 |
6010-K, IEC Power Entry Module C14, 70°C, version: 1, L: Blade terminal (2.8 x 0.8 mm), N: Blade terminal (2.8 x 0.8 mm), ground: Blade terminal (2.8 x 0.8 mm)without terminal, color: Black, design: snap-in (x=panel thickness), dimension X: 25, features: not used, bipolar switch, 4,8mm blade terminal, rocker red illuminated |
4304.6045 |
|
|
50 |
|
|
|
| 6010-K--9990-A-4154 |
6010-K, IEC Power Entry Module C14, 70°C, version: 1, L: Blade terminal (6.3 x 0.8 mm), N: Blade terminal (6.3 x 0.8 mm), ground: Blade terminal (6.3 x 0.8 mm)without terminal, color: Black, design: snap-in (x=panel thickness), dimension X: 15, features: not used, bipolar switch, 4,8mm blade terminal, black rocker |
4304.6046 |
|
|
50 |
|
|
|
| 6010-K--9990-A-4254 |
6010-K, IEC Power Entry Module C14, 70°C, version: 1, L: Blade terminal (6.3 x 0.8 mm), N: Blade terminal (6.3 x 0.8 mm), ground: Blade terminal (6.3 x 0.8 mm)without terminal, color: Black, design: snap-in (x=panel thickness), dimension X: 25, features: not used, bipolar switch, 4,8mm blade terminal, black rocker |
4304.6047 |
|
|
50 |
|
|
|
| 6010-K- -9990-A-425 4 |
6010-K, IEC Power Entry Module C14, 70°C, version: 1, L: Blade terminal (6.3 x 0.8 mm), N: Blade terminal (6.3 x 0.8 mm), ground: Blade terminal (6.3 x 0.8 mm)without terminal, color: Black, design: snap-in (x=panel thickness), dimension X: 25, features: not used, bipolar switch, 4,8mm blade terminal, black rocker |
4304.6048 |
|
|
50 |
|
|
|
| The listet variants should be available from stockOther versions on request www.schurter.com/contact |
|
Category / Description |
|
▲
| IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal |
4787
|
| IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal |
4788
|
| IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal |
5091
|
| IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal |
5092
|
|
|
|
|
▲
| IEC Connector C15, Rewireable, Straight |
0101
|
| IEC Connector C15A, Rewireable, Straight |
0102
|
| IEC Connector C15A, Rewireable, Straight |
0102-G
|
| IEC Connector C15A, Rewireable, Angled |
0112
|
| IEC Connector C13, Rewireable, Angled |
4012
|
| IEC Connector C13, Rewireable, Angled |
4013
|
| IEC Connector C13, Rewireable, Straight |
4020
|
| IEC Connector C13, Rewireable, Angled |
4021
|
| IEC Connector C13, Rewireable, Straight |
4022
|
| IEC Connector C13, Rewireable, Angled |
4300-06
|
| IEC Connector C15, Rewireable, Straight |
4781
|
| IEC Connector C13, Rewireable, Straight |
4782
|
| IEC Connector C15, Rewireable, Angled |
4784
|
| IEC Connector C13, Rewireable, Angled |
4785
|
| IEC Connector C15, Rewireable, Straight |
8101
|
| IEC Connector C15, Rewireable, Angled |
8111
|
|
|
|
|
▲

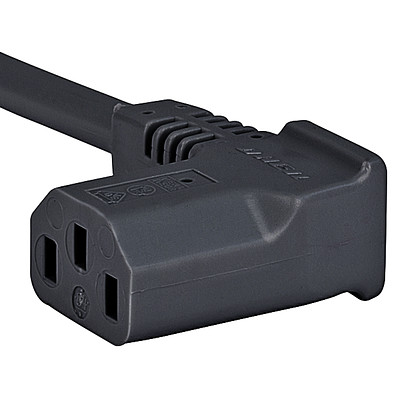

| Power Cord with IEC Connector C13, Angled |
0311
|
| Power Cord with IEC Connector C13, Angled |
3011
|
| Power Cord with IEC Connector C13, Angled |
3012
|
| Power Cord with IEC Connector C13, Angled |
3013
|
| Power Cord with IEC Connector C13 |
3020
|
| Power Cord with IEC Connector C13, Straight |
3027
|
| Power Cord with IEC Connector C13, Straight |
302U
|
| Power Cord with IEC Connector C13, Straight |
3030
|
| Power Cord with IEC Connector C13, Angled |
311L
|
| Power Cord with IEC Connector C13, Angled |
312L
|
| Power Cord with IEC Connector C15, Straight, 120°C |
3366
|
| Power Cord with IEC Connector C15, Angled, 120°C |
3368
|
|
|
|
|
▲
| Diverse Power Supply and Interconnection Cords 10 A |
|
|
|
|
| The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. |
04.04.2013
|
|
