DC11 GST Power Entry Module without Filter: IEC Appliance Inlet C14 with Line Switch 1- or 2-pole

C14
Connector Logo
70° C		 C18
Connector Logo
70° C
Environment_Safety RoHS   Environment_Safety China-RoHS Approval marks cURus   Approval marks ENEC 10   Approval marks China

Description

Description

- Panel Mount: Screw-on version from front or rear side, snap-in version from front side
- 2 Functions: Appliance Inlet protection class I or II, Line Switch 1  or 2 pole
- Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
- Quick connect terminals 4.8 x 0.8 mm

Approvals

- VDE Certificate Number:40007009
- UL File Number:E96454

Characteristics

- Ultra-compact design
- All single elements are already wired
Unwired versions available on request
- Line switch non-illuminated or illuminated
- Ideal for application with high transient loads
- Suitable for use in equipment according to IEC 60950

Other versions on request

- Unwired versions
- Solder terminals
- Line switch with other rocker marking

References

Alternative: version with line filter DC12
Substitute for type KEB1 KEB2 6010-K

Weblinks

pdf-datasheet, General Product Information , Approvals, CE declaration of conformity, RoHS , CHINA-RoHS , Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings , Accessories , Wire Harnessing , Product News , PCS , Detailed request for product

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.

Top

Technical Data

Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 15 A / 250 VAC; 50/60 Hz ¹�?�
Dielectric Strength > 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temp. -25 °C to 70 °C
Degree of Protection from front side IP 40 acc. to IEC 60529
Protection Class Suitable for appliances with protection class I or II acc. to IEC 61140
Terminal Quick connect terminals 4.8 x 0.8 mm
Panel Thickness s Screw: max 6 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1/1.5/2/2.5/3 mm
Material: Housing Thermoplastic, black, UL 94V-0
Line Switch Rocker switch 1 or 2 pole, non-illuminated or illuminated, acc. to IEC 61058-1
Technical Details
Top

Dimensions

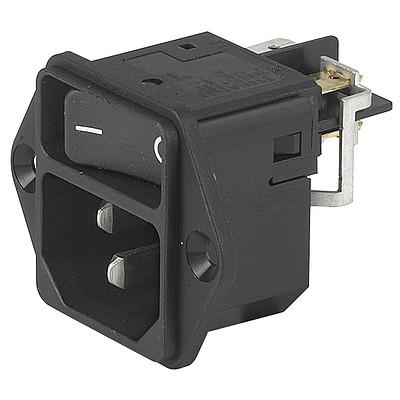

Screw on panel mounting
DC11_Schraub_Massbild_Mehransicht
1) 1-pol non-illuminated
2) 2-pol illuminated, 2-pol non-illuminated

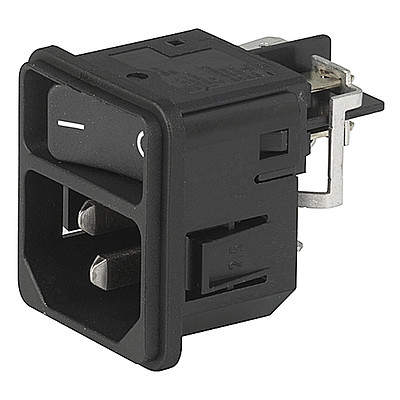

Snap-in mounting
DC11_Schnapp_Massbild_Mehransicht
1) 1-pol non-illuminated
2) 2-pol illuminated, 2-pol non-illuminated
Top

CAD

Electrical Data

Diagrams

Line switch non-illuminated 2-pole
DC11_Schaltbild_unbel_2pol
1) Line2) Load
Line switch illuminated 2-pole
DC11_Schaltbild_bel_2pol
1) Line2) Load
Line switch non-illuminated 1-pole
DC11_Schaltbild_unbel_1pol
1) Line2) Load
Top

Variants

Tabel of Variants

Rated Current UL [A] Protection Class Panel mounting Panel Thickness s [mm] Line Switch Illumination Color Order Number Most Popular [?] MOQ [?] PU [?] e-Shop [?] SCHURTER Stock Check [?] Distributor Stock Check [?] Wire Harness [?]

12 I Screw - 2-pole • red DC11.0021.001  A  1 50 » » » »
15 I Screw - 2-pole • red DC11.0021.006 1 50 » » » »
12 I Screw - 2-pole • green DC11.0031.001  A  1 50 » » » »
12 I Screw - 1-pole - DC11.0001.003  A  1 50 » » » »
15 I Screw - 1-pole - DC11.0001.007 1 50 » » » »
12 I Screw - 2-pole - DC11.0001.001  A  1 50 » » » »
12 I Screw - 2-pole - DC11.0001.001.21 1 50 » » » »
15 I Screw - 2-pole - DC11.0001.006 1 50 » » » »
12 I Snap-in 1 2-pole • red DC11.0021.101 1 50 » » » »
12 I Snap-in 1.5 2-pole • red DC11.0021.201 1 50 » » » »
15 I Snap-in 1.5 2-pole • red DC11.0021.206 1 50 » » » »
12 I Snap-in 2 2-pole • red DC11.0021.301 1 50 » » » »
12 I Snap-in 2.5 2-pole • red DC11.0021.401 1 50 » » » »
12 I Snap-in 1.5 2-pole • green DC11.0031.201  A  1 50 » » » »
12 I Snap-in 2 2-pole • green DC11.0031.301 1 50 » » » »
12 I Snap-in 2.5 2-pole • green DC11.0031.401 1 50 » » » »
12 I Snap-in 1.5 1-pole - DC11.0001.203  A  1 50 » » » »
15 I Snap-in 1.5 1-pole - DC11.0001.207 1 50 » » » »
12 I Snap-in 2 1-pole - DC11.0001.303 1 50 » » » »
12 I Snap-in 2.5 1-pole - DC11.0001.403 1 50 » » » »
12 I Snap-in 2.5 1-pole - DC11.0001.403.21 1 50 » » » »
12 I Snap-in 1.5 2-pole - DC11.0001.201  A  1 50 » » » »
12 I Snap-in 1.5 2-pole - DC11.0001.201.21 1 50 » » » »
15 I Snap-in 1.5 2-pole - DC11.0001.206 1 50 » » » »
12 I Snap-in 2 2-pole - DC11.0001.301  A  1 50 » » » »
12 II Snap-in 2 2-pole - DC11.0001.351 1 50 » » » »
12 I Snap-in 2.5 2-pole - DC11.0001.401  A  1 50 » » » »
12 I Snap-in 3 2-pole - DC11.0001.501 1 50 » » » »
With screw mounting on PCB, 2 screws are included
All variants according VDE (ENEC 10) approved for 10 A
Suffix ".21" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
Top

Packaging unit

50 Pcs

Mating Components

Category / Description
4787, SGE GST, PG07, Gerätesteckdose 10A Frontplatte s/w
Appliance Outlet Overview complete
▼
0101xaaa0a81_G_Steckdose_10A_120_Grad_SGE_GST_PG07
Connector Overview complete
▼
0311, SGE GST, PG07, Geräteanschlussleitung
Power Cord Overview complete
▼
Top
Description
A_Schutzabdeckung_Diverse_Kombielemente
Assorted Covers
▼
Kabelende_KD_Kundenspezifischer_Anschluss
Wire Harness
▼

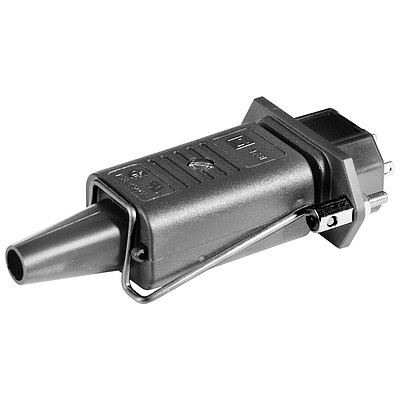

Sicherungsbügel_Set
Cord retaining kits
▼
Top
The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. 04.06.2013
