Fuseholder Blocks and Clips [shortcut:PG02b] |
| PRV |
7141.2001 [id:24512]
|
General Informations

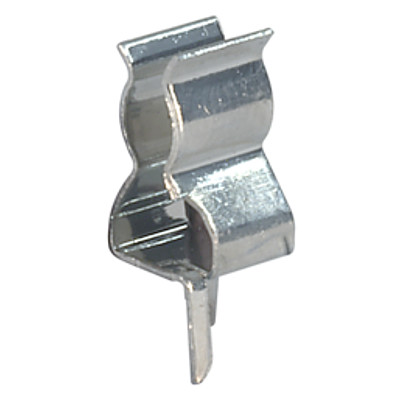

231828 GS Fuseholder Blocks and Clips: Clip, 5 x 20 mm, Version 2
| Fuse-Link |
5 x 20 mm |
| Mounting |
PCB |
| Terminal |
Solder THT |
| Rated Voltage |
250 VAC |
| Rated Current |
6.3 A |
| Degree of Protection |
IP 00 |
| Material: Terminals |
see variants |
| Unit Weight (Socket/Cap) |
0.7 g |
| Storage Conditions |
0 °C to 60 °C, max. 70% r.h. |
| Product Marking |
none |
| Soldering Methods |
Wave |
| Solderability |
235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta, method 1 |
| Resistance to Soldering Heat |
260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 1A |
|
Drilling diagram
|
|
Clip |
Terminal |
Material: Terminals |
Order Number |
ABC-Code
[?]
Term: ABC-Code
Explanation:
ABC-Code describes the availability of parts based on the manufacturers perspective. Following simplifying conventions used to describe the general availability of the specific parts:
A parts: available within 1 week (green)
B parts: available within 3 weeks (orange)
C parts: available within 5 weeks (red)
Z parts: disontinued products
Contact us regarding parts showing phase-out, or check our stock or our distributor's stock in the event there are residual quantities in the pipeline.
Contact Form
The current availability for all products can be checked dynamically upon detailed requirements:
Stock Check SCHURTER
|
MOQ
[?]
Term: MOQ
Explanation:
Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders.
Please contact us for assistance:
Contact Form
|
PU
[?]
Term: Packaging unit
Explanation:
The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity).
Please contact SCHURTER for further assistance:
Contact Form
|
e-Shop
[?]
Term: e-Shop
Explanation:
The e-Shop is intended as a simple and easy way to get samples. Please observe the MOQ (minimum order quantity).
The below listed links for the respective part numbers link to the current stock. To assure effective availability before entering the e-Shop.
e-Shop
The access to the e-Shop is also possible without the offered part number selection is possible if you enter the respective part number and the required amount.
You can place an inquiry if a product is currently not available. Products that are not listed with a link to the e-Shop are only available by placing a request. Please assure hereby to indicate the respective part number.
Contact Form
SCHURTER likes to assure with this approach the fastest way to get samples of current items on stock.
|
SCHURTER Stock Check
[?]
Term: SCHURTER Stock Check
Explanation:
The following links reffers to the inquiry form for current stock information of the selected products. It allows checking for the directly available amount as well as the expected delivery time if no or not enough stock is available.
The
SCHURTER Stock Check
Stock Check SCHURTER
|
Distributor Stock Check
[?]
Term: Distributor Stock Check
Explanation:
The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The
Distributor Stock Check
Stock Check Distributor
|
|
|
|
|
|
|
|
|
|
|
| • |
Straight |
Tin-Plated Bronze |
7141.2001 |
|
100 |
|
|
|
|
|
