ASO 10.3x38

General Informations

ASO 10.3x38 GS Non-resettable fuses: Midget Fuse, 10.3 x 38 mm, 1000 VDC, Photovoltaic, gPV

New_Logo

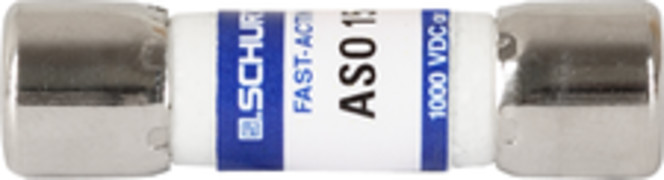

ASO10.3x38_Standard_Katalogbild

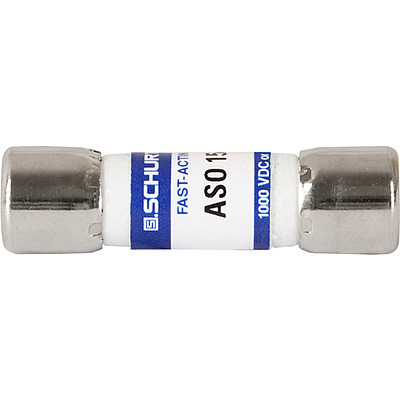

Standard

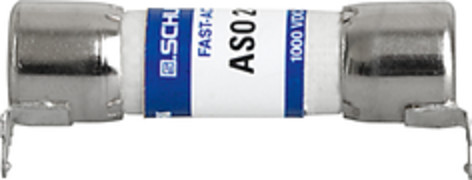

ASO_10.3x38_PCB_Katalogbild

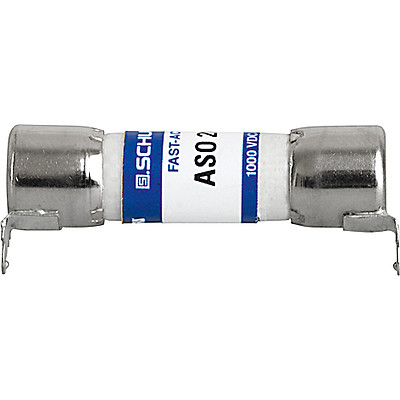

PCB version
Environment_Safety RoHS   Environment_Safety China-RoHS Approval marks VDE   Approval marks UL

Descriptions

Description

- Meets the new UL and IEC photovoltaic standards
- UL Recognized for 1000 VDC
- High breaking capacity of 20 kA @ 1000 VDC
- Low min. interrupting rating of 1.35 x In
- Bolted contacts available on request

Standards

- IEC 60269-6
- UL 2579

Approvals

- VDE Certificate Number: 40033592
- UL File Number: E345791

Applications

- All photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuse

References

Corresponding Fuseholder FSO 231660

Weblinks

pdf, General Product Information , Approvals, RoHS , CHINA-RoHS , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check , PCN
top

Technical Data

Rated Voltage 1000 VDC
Rated Current 1 - 30 A
Breaking Capacity 20 kA
Characteristic gPV
Mounting Insert, PCB/THT
Admissible Ambient Air Temp. -40 °C to 85 °C
Unit Weight 8.3 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking S_SCHURTER_Logo, Type, Current, Voltage, Breaking Capacity, Characteristic, Approvals
top

Dimensions

Standard
ASO_10.3x38_Massbild
PCB
ASO10.3x38_PCB_Massbild_Mehransicht
top

CAD

Electrical Details

Derating Curves

Percentage of Rating [%]
ASO_10.3x38_Derating_Kurve
Ambient Temperature [°C]
top

Pre-Arcing Time

Rated Current In 1.0 x Inmin. 1.13 x Inmin. 1.35 x Inmin. 1.45 x Inmax. 2.0 x Inmax.
1 A - 30 A 60 min 60 min 60 min 60 min 4 min
top

Time-Current-Curves

Time in Seconds
ASO10.3x38_Auslösekennlinie
Current in Amperes
top

Variants

Table of variants

Rated Current [A] Mounting Rated Voltage [VDC] Breaking Capacity Power Dissipation 1.0 In typ. [mW] Melting I²t 20 kA typ. [A²s] Approval marks Logo Approval marks Logo Order Number ABC-Code [?] MOQ [?] PU [?] e-Shop [?] SCHURTER Stock Check [?] Distributor Stock Check [?]

1 Standard 1000 1) 602 0.554 • • 0090.0001  A  10 10 » » »
2 Standard 1000 1) 1586 4.755 • • 0090.0002  A  10 10 » » »
3 Standard 1000 1) 1504 7.882 • • 0090.0003  A  10 10 » » »
4 Standard 1000 1) 1491 23.03 • • 0090.0004  A  10 10 » » »
5 Standard 1000 1) 1465 42.6 • • 0090.0005  A  10 10 » » »
6 Standard 1000 1) 1348 80.25 • • 0090.0006  A  10 10 » » »
8 Standard 1000 1) 1610 199 • • 0090.0008  A  10 10 » » »
10 Standard 1000 1) 1760 401 • • 0090.0010  A  10 10 » » »
12 Standard 1000 1) 1965 642 • • 0090.0012  A  10 10 » » »
15 Standard 1000 1) 1914 505 • • 0090.0015  A  10 10 » » »
20 Standard 1000 1) 2810 1313 • • 0090.0020  A  10 10 » » »
25 Standard 1000 1) 2981 2371 • • 0090.0025  A  10 10 » » »
30 Standard 1000 1) 3923 2679 • 0090.0030  A  10 10 » » »
1 PCB 1000 1) 602 0.554 • • 0090.1001 100 10 » » »
2 PCB 1000 1) 1586 4.755 • • 0090.1002 100 10 » » »
3 PCB 1000 1) 1504 7.882 • • 0090.1003 100 10 » » »
4 PCB 1000 1) 1491 23.03 • • 0090.1004 100 10 » » »
5 PCB 1000 1) 1465 42.6 • • 0090.1005 100 10 » » »
6 PCB 1000 1) 1348 80.25 • • 0090.1006 100 10 » » »
8 PCB 1000 1) 1610 199 • • 0090.1008 100 10 » » »
10 PCB 1000 1) 1760 401 • • 0090.1010 100 10 » » »
12 PCB 1000 1) 1965 642 • • 0090.1012 100 10 » » »
15 PCB 1000 1) 1914 505 • • 0090.1015 100 10 » » »
20 PCB 1000 1) 2810 1313 • • 0090.1020 100 10 » » »
25 PCB 1000 1) 2981 2371 • • 0090.1025 100 10 » » »
30 PCB 1000 1) 3923 2679 • 0090.1030 100 10 » » »
1) 20 kA @ 1000 VDC, L/R < 2ms
top

Packaging Unit

Standard version Bulk (10 pcs.)
PCB version Bulk (100 pcs.)
