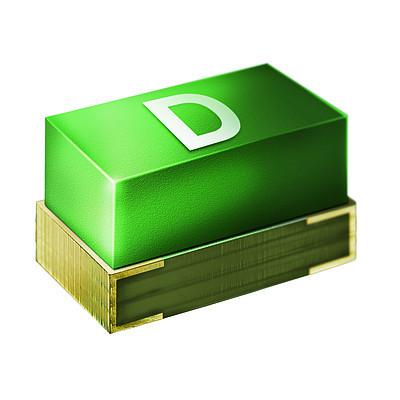

USFF 1206 GS Non-resettable fuses: Surface Mount Fuse, 3.2 x 1.6 mm, Super-Quick-Acting FF, 63 VDC, low impedance
Environment_Safety RoHS   Environment_Safety China-RoHS   Environment_Safety Halogen Free Approval marks cURus

Descriptions

Description

- Low impedance, very fast opening time
- Complement USF 1206 with lower current ratings

Standards

- UL 248-14
- CSA C22.2 no. 248.14

Approvals

- UL File Number: E41599

Applications

- Semiconductor Protection

References

Packaging Details

Weblinks

pdf, General Product Information , Approvals, RoHS , CHINA-RoHS , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check
top

Technical Data

Rated Voltage 125 VAC, 63 VDC
Rated Current 0.16 - 0.25 A
Breaking Capacity 100 A
Characteristic Super-Quick-Acting FF
Mounting PCB,SMT
Admissible Ambient Air Temp. -55 °C to 90 °C
Climatic Category 55/090/21 acc. to IEC 60068-1
Material: Housing Epoxyd Glass, UL 94V-0
Material: Terminals Gold-Plated Copper Alloy
Unit Weight 0.0133 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking Letter (see variants)
Soldering Methods Reflow
Solderability 245 °C / 3 sec acc. to IEC 60068-2-58, Test Td
Resistance to Soldering Heat 260 °C / 30 sec acc. to IPC/JEDEC J-STD-020D, Level 1
Terminal Strength MIL-STD-202, Method 211A
Deflection of board 1 mm for 1 minute
Resistance to Solvents MIL-STD-202, Method 215A
top

Dimensions

USFF1206_Massbild_Mehransicht
USF1206_USI1206_UST1206_USFF1206_Massbild_Lötflächen
Soldering pads
top

CAD


Electrical Details

Pre-Arcing Time

Rated Current In 1.0 x Inmin. 2.5 x Inmax. 10.0 x Inmin. 10.0 x Inmax.
0.16 A - .25 A 4 h 5 s 0.1 ms 1 ms
top

Time-Current-Curves

Time in Seconds
USFF1206_Auslösekennlinie
Current in Amperes
top

Variants

Table of variants

Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] Marking Breaking Capacity Voltage Drop 1.0 In typ. [mV] Cold Resistance typ. [mΩ] Melting I²t 8.0 In typ. [A²s] Approval marks Logo Order Number ABC-Code [?] MOQ [?] PU [?] e-Shop [?] SCHURTER Stock Check [?] Distributor Stock Check [?]

0.16 125 63 0.16 1) 95 510 0.0015 3413.0008.11  A  100 100 » » »
0.2 125 63 C 1) 87 365 0.0029 3413.0009.11  A  100 100 » » »
0.25 125 63 D 1) 75 255 0.0032 3413.0010.11  A  100 100 » » »
1) 100 A @ 125 VAC, 100 A @ 63 VDC
top

Packaging Unit

.xx = .11 Blister Tape (100 pcs.)
.xx = .22 Blister Tape 18 cm Reel (1000 pcs.)
.xx = .24 Blister Tape 18 cm Reel (5000 pcs.)
.xx = .26 Blister Tape 33 cm Reel (15000 pcs.)
