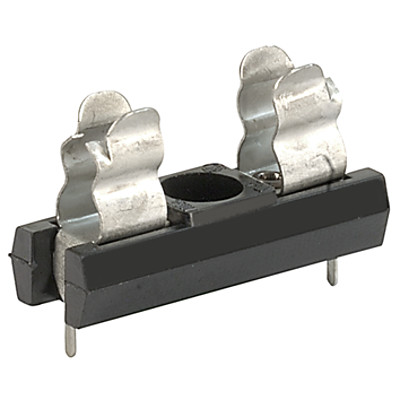

GS Fuseholder Blocks and Clips: Fuseholder Open Design, 5 x 20 mm, THT, Cover

Description

Description

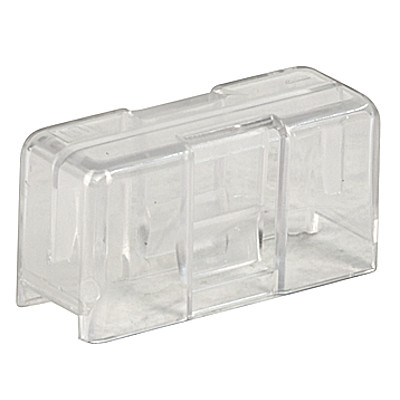

- Optional covers, see accessories

Standards

- IEC 60127-6
- UL 4248-1
- CSA 22.2 no. 4248.1

Approvals

- UL File Number: E39328
Top

Technical Data

Fuse-Link 5 x 20 mm
Mounting PCB
Mounting Screw or Rivet
Terminal Solder THT
Rated Voltage 600 VAC/DC
Rated current 10 A (UL/CSA)
Rated Power Acceptance IEC 2.5 W / 10 A @ Ta 23 °C
2 W / 10 A with cover, see derating curves
Degree of Protection IP 00
Protection Class Suitable for appliances with protection class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoset, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight 2.9 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking Rated voltage, Rated current, Approvals
Soldering Methods Wave
Solderability 245 °C / 3 sec acc. to IEC 60068-2-20, Test Ta, method 1
Resistance to Soldering Heat 260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 1A
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV
(50 Hz; 1 min)
Impulse Withstand Voltage > 4 kV between L-N
Insulation Resistance > 10 MΩ between L-N
(500 VDC; 1 min)
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degree 1 - 3 acc. to IEC 60664-1
Top

Dimension

Dimension

OG8001_Massbild_Mehransicht
OG8001_Massbild_Borplan
Drilling diagram
Top

CAD


Your Results (1)
Picture(s) [?] Type [?] Order Number [?] Configuration key [?] Comment Model Description [?] CAD Format [?]
            IGS [?] Step [?] Parasolid [?] DXF [?] WRL [?]

Preview
OG (Holder), 5x20 31-8001_IGS.ZIP
(107.68 kB)
31-8001_STP.ZIP
(35.94 kB)
- 31-8001_DXF.ZIP
(26.80 kB)
-




Electrical Data

Derating Curves

without Cover
Admissible power acceptance in Watt
Derating_2.5W_GS_open_ohne_Abdeckung
Ambient air temperature Ta °C
with cover
Admissible Power Acceptance in Watt
Derating_2W_GS_open_mit_Abdeckung
Ambient Air Temperature Ta °C
Top

All Variants

Tabel of Variants

Holder Order Number A=Most Popular [?]
0031.8001  A
Most Popular.
Availability for all products can be searched real-time: http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Top

Packaging Unit

Bulk (100 pcs.)

Mating Components

Accessories

Top

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. 11.12.2014
