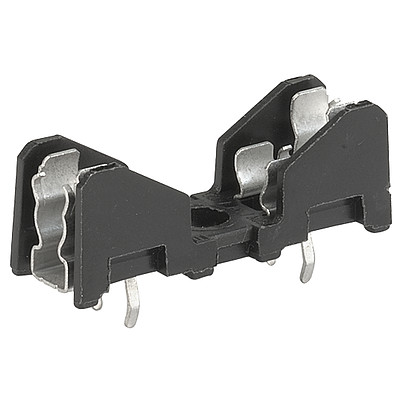

OGD GS Fuseholder Blocks and Clips: Fuseholder Open Design, 5 x 20 / 6.3 x 32 mm, THT, VDE: 500 VAC, UL/CSA: 600 VAC/DC, Cover, IEC 60335-1
Description
| - |
Fuseholder for 500 VAC applications |
| - |
Meets the new requirements of IEC 60335-1 Ed. 4.0 for appliances in unattended use (clause 30.2.3). This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13. Order number: 0031.8231.15 |
| - |
Fuse block accepts 5x20 or 6.3x32 fuse-links |
Standards
| - |
IEC 60127-6 |
| - |
UL 4248-1 / UL 512 |
| - |
CSA C22.2 no. 39 |
Approvals
| - VDE Certificate Number: |
40008993 (250V) + 40018378 (500V) |
| - UL File Number: |
E39328 |
Applications
| - |
Equipment with three-phase supply (400 VAC) |
| - |
Industrial electronic |
Weblinks
pdf-datasheet,
General Product Information , Approvals, CE declaration of conformity,
RoHS ,
CHINA-RoHS , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
CAD-Drawings ,
Accessories
, PCN
, Detailed request for product
,
White Paper
| Fuse-Link |
5 x 20 or 6.3 x 32 mm |
| Mounting |
PCB |
| Mounting |
Screw or Rivet |
| Terminal |
Solder THT |
| Rated Voltage |
500 VAC (VDE), 600 VAC/DC (UL/CSA) |
| Rated Current |
10 A (VDE), 16 A (UL/CSA) |
| Rated Power Acceptance IEC |
4 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher ambient temperature see derating curves |
| Degree of Protection |
IP 00 / IP 20 |
| Protection Class |
Suitable for appliances with protection class I or II acc. to IEC 61140 |
| Admissible Ambient Air Temp. |
-40 °C to 85 °C |
| Climatic Category |
40/085/21 acc. to IEC 60068-1 |
| Material: Socket |
Thermoplastic, black, UL 94V-0 |
| Material: Cover |
Thermoplastic black UL 94V-0 |
| Material: Terminals |
Tin-Plated Copper Alloy |
| Unit Weight (Socket/Cap) |
3.7 g |
| Storage Conditions |
0 °C to 60 °C, max. 70% r.h. |
| Product Marking |
 , Type, Dielectric strength, Power Acc./Current Rating, Approvals |
| Soldering Methods |
Wave |
| Solderability |
245 °C / 2 sec acc. to IEC 60068-2-20, Test Ta, method 1 |
| Resistance to Soldering Heat |
260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 1A |
| Contact Resistance |
< 5 mΩ at 20 mV |
| Dielectric Strength |
> 3 kV
(50 Hz; 1 min) |
| Impulse Withstand Voltage |
> 4 kV between L-N |
| Insulation Resistance |
> 10 MΩ between L-N
(500 VDC; 1 min) |
| Overvoltage Category |
I - III acc. to IEC 60664-1 |
| Pollution Degree |
2 acc. to IEC 60664-1 |
| Resistance to Vibration |
acc. to IEC 60068-2-6, test Fc |
|
Drilling diagram
|
Derating Curves
| Admissible Power Acceptance in Watt |
|
Ambient Air Temperature Ta °C
|
|
Holder |
Material |
Remark |
Order Number |
Most Popular
[?]
Term: Most Popular
Explanation:
Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact Form
Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER
|
MOQ
[?]
Term: MOQ
Explanation:
Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders.
Please contact us for assistance:
Contact Form
|
PU
[?]
Term: Packaging unit
Explanation:
The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity).
Please contact SCHURTER for further assistance:
Contact Form
|
e-Shop
[?]
Term: e-Shop
Explanation:
The e-Shop is intended as a simple and easy way to get samples. Please observe the MOQ (minimum order quantity).
The below listed links for the respective part numbers link to the current stock. To assure effective availability before entering the e-Shop.
e-Shop
The access to the e-Shop is also possible without the offered part number selection is possible if you enter the respective part number and the required amount.
You can place an inquiry if a product is currently not available. Products that are not listed with a link to the e-Shop are only available by placing a request. Please assure hereby to indicate the respective part number.
Contact Form
SCHURTER likes to assure with this approach the fastest way to get samples of current items on stock.
|
SCHURTER Stock Check
[?]
Term: SCHURTER Stock Check
Explanation:
The following links reffers to the inquiry form for current stock information of the selected products. It allows checking for the directly available amount as well as the expected delivery time if no or not enough stock is available.
The
SCHURTER Stock Check
Stock Check SCHURTER
|
Distributor Stock Check
[?]
Term: Distributor Stock Check
Explanation:
The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The
Distributor Stock Check
Stock Check Distributor
|
|
|
|
|
|
|
|
|
|
|
| • |
Thermoplastic |
- |
0031.8231 |
A
|
1 |
100 |
|
|
|
| • |
Spec. Thermoplastic 1 |
Approvals pending |
0031.8231.15 |
|
1 |
100 |
|
|
|
| Spec. thermoplastic meets the new requirements of IEC 60335-1 Ed. 4.0 for appliances in unattended use (clause 30.2.3). This standard includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13. |
| Bulk 178 x 91 x 71 mm (100 pcs.) |
|
Description |
|
|
|
|
| The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. |
03.04.2013
|
|
