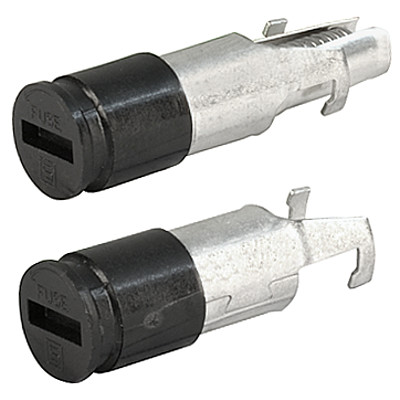

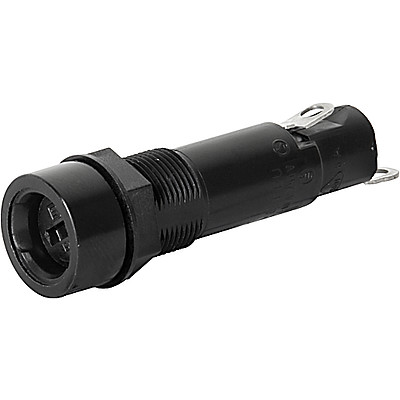

GS Fuseholder: Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slot, Medical


Medical
FEU_MED_Kopf_mit_Schlitz

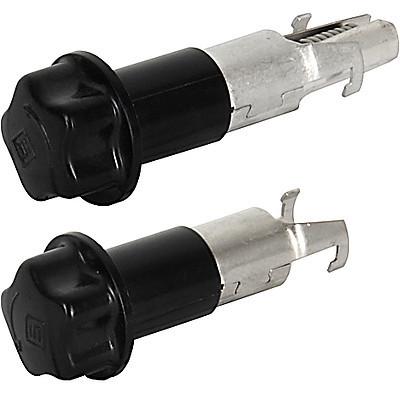

Socket with Slot Knop
Caps must be ordered separately (see accessories)
Environment_Safety RoHS   Environment_Safety China-RoHS Approval marks VDE   Approval marks UR   Approval marks CSA

Description

Description

- Quick-conntect or solder terminals

Standards

- IEC 60127-6
- UL 4248-1 / UL 512
- CSA C22.2 no. 39

Approvals

- VDE Certificate Number: 134125
- UL File Number: E39328
Top

Technical Data

Shock-Safe Category PC2
Fuse-Link 5 x 20 or 6.3 x 32 mm
Mounting Panel Mount, Front Side
Mounting Fixing Nut
Terminal Solder
Rated Voltage 250 VAC
Rated current 10 A (VDE), 20 A (UL)
Rated Power Acceptance IEC 4 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher ambient temperature see derating curves
Degree of Protection IP 40
Protection Class Suitable for appliances with protection class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoset, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight 5.5 g / 3.22 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking S_SCHURTER_Logo, Type, Rated voltage, Rated current, Approvals
Soldering Methods Iron
Solderability 350 °C / 2 sec acc. to IEC 60068-2-20, Test Ta, method 2
Resistance to Soldering Heat 350 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 2
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV
> 4 kV between L/N-PE
(50 Hz; 1 min)
Impulse Withstand Voltage > 4 kV between L-N
> 6 kV between L/N-PE
Insulation Resistance > 10 MΩ between L-N
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degree 1 - 3 acc. to IEC 60664-1
Admissible Torque on Fixing Nut max 1.2 Nm
Panel Thickness s max 7 mm
Top

Dimension

Dimension

FEU_Massbild_Mehransicht_3_medical
Variant 0031.1681
FEU_Massbild_Plattenausschnitte_alle
Mounting holes
Top

CAD


Your Results (0)

Picture(s) [?] Type [?] Order Number [?] Configuration key [?] Comment Model Description [?] CAD Format [?]
            IGS [?] Step [?] Parasolid [?] DXF [?] WRL [?]




Electrical Data

Derating Curves

Admissible Power Acceptance in Watt
Derating_4W_GS
Ambient Air Temperature Ta °C
Top

All Variants

Tabel of Variants

Holder Cap Fuse-Link Degree of Protection Colour Cap Remark Order Number A=Most Popular [?]
- 5 x 20 or 6.3 x 32mm IP 40 - - 0031.1681  A
Most Popular.
Availability for all products can be searched real-time: http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Top

Packaging Unit

Bulk (100 pcs.)

Mating Components

Required Accessory

Description
FEU_FAU_FAC_Koepfe
Caps to FEU, FAU, FAC
Top

Accessories

Description
Schutzabdeckung_FEU_FEUMED

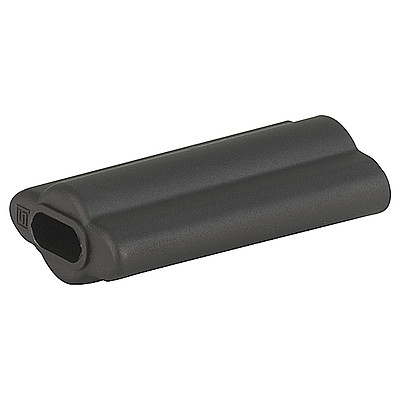

Cover FEU, FEU (Med)
Top

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. 27.11.2014
