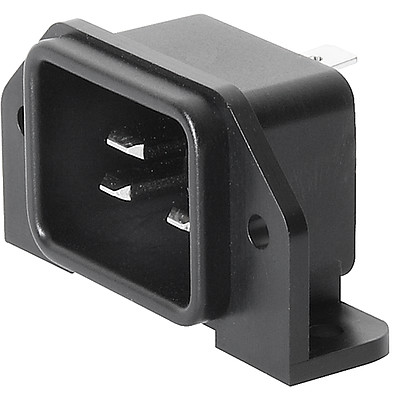

1601 GST Connector (Inlet/Outlet): IEC Appliance Inlet C20, Screw-on Mounting, Rear Side, PCB Terminal
Description
| - |
Panel Mount: Screw-on mounting, from rear-side |
| - |
1 Function: |
| - |
Appliance Inlet, Pin temperature 70 °C, Protection class I |
| - |
For PCB mounting |
Approvals
| - |
UL File Number:E96454 |
| - |
CSA File Number:27324 |
Weblinks
pdf-datasheet,
General Product Information , Approvals, CE declaration of conformity,
RoHS ,
CHINA-RoHS ,
Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
CAD-Drawings ,
Accessories ,
Product News
, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
| Ratings IEC |
16 A / 250 VAC; 50 Hz |
| Ratings UL/CSA |
21 A / 250 VAC; 60 Hz |
| Dielectric Strength |
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz) |
| Allowable Operation Temp. |
-25 °C to 70 °C |
| Degree of Protection |
from front side IP 20 acc. to IEC 60529 |
| Protection Class |
Suitable for appliances with protection class I acc. to IEC 61140 |
| Terminal |
For PCB mounting Solder terminal straight |
|
Panel cut-out and Drilling diagram
|
1601 - H - A B C 0- D - E I
The characters are placeholders for the correspondingly keys of selections from the key tables.
1601 - H - A B C 0- D - E I = Type
| Type |
Configuration key |
| protection class 1 |
X |
1601 - H - A B C 0- D - E I = Terminals
| Terminal L |
|
Configuration key |
| PCB-terminal (standard) |
|
4 |
1601 - H - A B C 0- D - E I = Terminals
| Terminal N |
Configuration key |
| PCB-terminal (standard) |
4 |
| Symbols similar as in table A |
1601 - H - A B C 0- D - E I = Terminals
| Terminal Ground |
Configuration key |
| PCB-terminal (long) |
6 |
| Symbols similar as in table A |
1601 - H - A B C 0- D - E I = Color
| Color |
Configuration key |
| Black |
A |
| Grey |
B |
| White |
D |
|
1601 - H - A B C 0- D - E I = Style
| Style |
Configuration key |
| flange with through holes |
2 |
| flange with through holes (special type) |
7 |
1601 - H - A B C 0- D - E I = Additional Terminals
| Additional Terminals |
Configuration key |
| without terminal |
0 |
| Blade terminal (6.3 x 0.8 mm) |
9 |
» Variants
|
Config. Code |
Description |
Order Number |
Most Popular
[?]
Term: Most Popular
Explanation:
Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact Form
Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER
|
MOQ
[?]
Term: MOQ
Explanation:
Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders.
Please contact us for assistance:
Contact Form
|
PU
[?]
Term: Packaging unit
Explanation:
The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity).
Please contact SCHURTER for further assistance:
Contact Form
|
e-Shop
[?]
Term: e-Shop
Explanation:
The e-Shop is intended as a simple and easy way to get samples. Please observe the MOQ (minimum order quantity).
The below listed links for the respective part numbers link to the current stock. To assure effective availability before entering the e-Shop.
e-Shop
The access to the e-Shop is also possible without the offered part number selection is possible if you enter the respective part number and the required amount.
You can place an inquiry if a product is currently not available. Products that are not listed with a link to the e-Shop are only available by placing a request. Please assure hereby to indicate the respective part number.
Contact Form
SCHURTER likes to assure with this approach the fastest way to get samples of current items on stock.
|
SCHURTER Stock Check
[?]
Term: SCHURTER Stock Check
Explanation:
The following links reffers to the inquiry form for current stock information of the selected products. It allows checking for the directly available amount as well as the expected delivery time if no or not enough stock is available.
The
SCHURTER Stock Check
Stock Check SCHURTER
|
Distributor Stock Check
[?]
Term: Distributor Stock Check
Explanation:
The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The
Distributor Stock Check
Stock Check Distributor
|
| 1601-X-4460-A-29 |
1601, IEC Appliance Inlet C20, 70°C1, L: PCB-terminal (standard), N: PCB-terminal (standard), ground: PCB-terminal (long), color: Black, design: flange with through holes, addtional terminal L:Blade terminal (6.3 x 0.8 mm) |
6163.0018 |
|
1 |
50 |
|
|
|
| 1601-X-4460-A-20 |
1601, IEC Appliance Inlet C20, 70°C1, L: PCB-terminal (standard), N: PCB-terminal (standard), ground: PCB-terminal (long), color: Black, design: flange with through holes, addtional terminal L:without terminal |
6163.0019 |
|
1 |
50 |
|
|
|
| The listet variants should be available from stockOther versions on request www.schurter.com/contact |
|
Category / Description |
|
▲

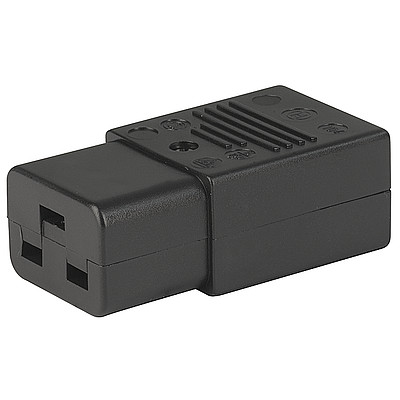

| IEC Connector C19, Rewireable, Straight |
0104
|
| IEC Connector C19, Rewireable, Straight |
0104U
|
| IEC Connector C19, Rewireable, Angled |
1651
|
| IEC Connector C19, Rewireable, Straight |
1652
|
| IEC Connector C19, Rewireable, Angled |
4790
|
| IEC Connector C19, Rewireable, Straight |
4795
|
|
|
|
|
▲

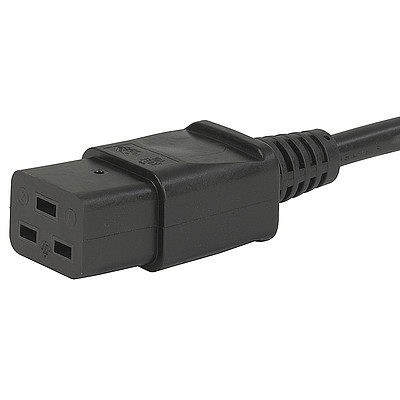

| Power Cord with IEC Connector C19, Straight |
1654
|
|
|
|
|
▲

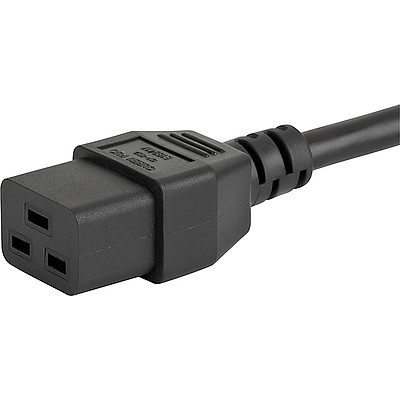

| EU Power Supply Cord with IEC Connector C19, straight/ angled |
|
| US Power Supply Cord with IEC Connector C19, straight |
|
|
|
|
|
|
▲
| Diverse Power Supply and Interconnection Cords 16 A |
|
|
|
|
| The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. |
05.04.2013
|
|
