Titel	IEC Appliance Outlet J, Snap-in/Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Publ_Produktgruppe	Connector (Inlet/Outlet) [shortcut:PG07]
Publ_Workflow	[shortcut:]
SGE_Name	Connectors
PG_Name	Connectors (Inlets/Outlets)
PG_Url	www.schurter.com/pg07
Variants	4797.0000, 4797.0000.01, 4797.0010, 4797.0012, 4797.0015, 4797.0015.01, 4797.0020, 4797.0025, 4797.0030, 4797.0100, 4797.0110, 4797.0112, 4797.0115, 4797.0120, 4797.0125, 4797.0130, 4797.3000, 4797.3010, 4797.3012, 4797.3015, 4797.3015.01, 4797.3020, 4797.3025, 4797.3030, 4797.3100, 4797.3110, 4797.3112, 4797.3115, 4797.3120, 4797.3125, 4797.3130

4797

General Information

pdf-datasheet

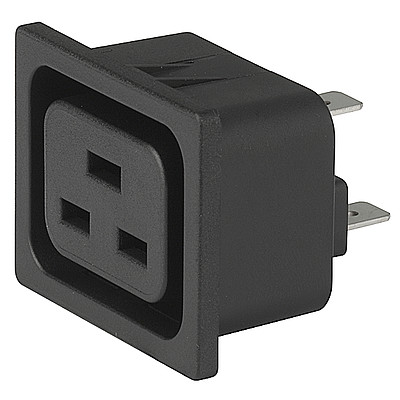

4797 GST Connector (Inlet/Outlet): IEC Appliance Outlet J, Snap-in/Screw-on Mounting, Front Side, Solder or Quick-connect Terminal

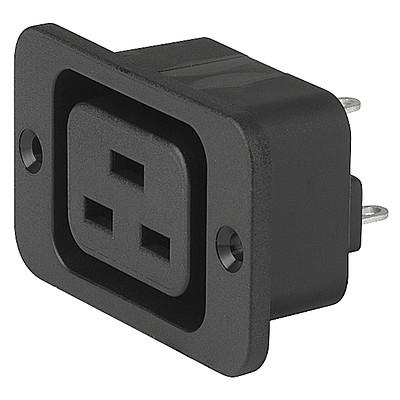

Screw-On Version

70° C

Description

-	Panel Mount: Snap-in or screw-on mounting, from front side
-	1 Function: Connector, Pin temperature 70 °C Protection class I
-	Solder terminals or quick connect terminals

Approvals

-	UL File Number:E103791

Characteristics

-	Qualified for use in equipment according IEC/EN 60950

Other versions on request

-	Other panel thickness
-	For protection class II
-	Types for enhanced glow wire test requirements acc. IEC 60695-2-12 and -13 for the use in unattended household equipment acc. IEC 60335-1
-	Variant with notch for V-Lock mating Cordsets

References

Substitute for type 0723 5213 5216

Weblinks

pdf-datasheet, General Product Information , Approvals, CE declaration of conformity, RoHS , CHINA-RoHS , Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings , Accessories , Wire Harness , Product News , PCN , PCS , Detailed request for product

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.

Top

Technical Data

Ratings IEC	16 A / 250 VAC; 50 Hz
Ratings UL/CSA	20 A / 250 VAC; 60 Hz
Dielectric Strength	> 2.5 kVAC between L-N > 3 kVAC between L/N-PE (1 min/50 Hz)
Allowable Operation Temp.	-25 °C to 70 °C
Protection Class	Suitable for appliances with protection class I or II acc. to IEC 61140
Terminal	Solder terminals or quick connect terminals
Panel Thickness s	Screw: max 8 mm Mounting screw torque max 0.5 Nm Snap-in: 0.8 mm to 3 mm
Material: Housing	Thermoplastic, black, UL 94V-0

Top

Dimensions

Snap-in mounting from front side

Screw-on mounting from front side

Top

CAD

Variants

Tabel of Variants

Panel mounting	Panel Thickness s [mm]	Terminal	Protection Class	Order Number	Most Popular [?] Term: Most Popular Explanation: Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER Close	MOQ [?] Term: MOQ Explanation: Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders. Please contact us for assistance: Contact Form Close	PU [?] Term: Packaging unit Explanation: The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity). Please contact SCHURTER for further assistance: Contact Form Close

Screw	-	Quick connect terminals 6.3 x 0.8 mm	I	4797.0000	A	1	50
Screw	-	Quick connect terminals 6.3 x 0.8 mm	I	4797.0000.01		1	50
Screw	-	Solder terminals	I	4797.3000		1	50
Snap-in	1	Quick connect terminals 6.3 x 0.8 mm	I	4797.0010		1	50
Snap-in	1.2	Quick connect terminals 6.3 x 0.8 mm	I	4797.0012	A	1	50
Snap-in	1.5	Quick connect terminals 6.3 x 0.8 mm	I	4797.0015	A	1	50
Snap-in	1.5	Quick connect terminals 6.3 x 0.8 mm	I	4797.0015.01		1	50
Snap-in	2	Quick connect terminals 6.3 x 0.8 mm	I	4797.0020		1	50
Snap-in	2.5	Quick connect terminals 6.3 x 0.8 mm	I	4797.0025		1	50
Snap-in	3	Quick connect terminals 6.3 x 0.8 mm	I	4797.0030		1	50
Snap-in	1	Solder terminals	I	4797.3010		1	50
Snap-in	1.2	Solder terminals	I	4797.3012		1	50
Snap-in	1.5	Solder terminals	I	4797.3015	A	1	50
Snap-in	1.5	Solder terminals	I	4797.3015.01		1	50
Snap-in	2	Solder terminals	I	4797.3020		1	50
Snap-in	2.5	Solder terminals	I	4797.3025		1	50
Snap-in	3	Solder terminals	I	4797.3030		1	50
Suffix ".01" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset. Articles for enhanced glow wire test requirements acc. IEC 60695-2-12 and -13 can be ordered with ending “.15" (xxxx.xxxx.15). They are suitable for the use in unattended household equipment acc. IEC 60335-1.

Top

Packaging unit

50 Pcs

Mating Components

Mating Inlets/Plugs

Category / Description

Plug Overview complete

▼

▲

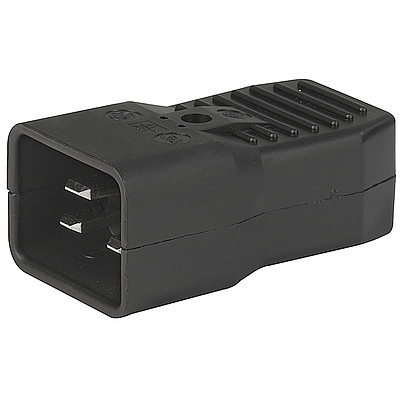

IEC Plug I, Cord Connector (Rewireable), Straight	0106
IEC Plug I, Cord Connector (Rewireable), Angled	1611
IEC Plug I, Cord Connector (Rewireable), Straight	1612
IEC Plug I, Cord Connector (Rewireable), Angled	4789
IEC Plug I, Cord Connector (Rewireable), Straight	4796

Top

Accessories

Description

Assorted Covers

▼

Wire Harness

▼

Cord retaining kits

▼

Top

Product Comparison

...

Top

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments.

05.04.2013
