General Informations

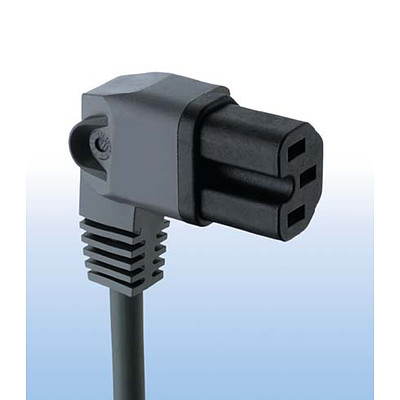

3368 GST Cord Sets: Power Cord with IEC Connector C15, Angled, 120°C
Description
| - |
Protection class I, Pin temperature 120 °C, Cable |
Approvals
| - |
VDE Certificate Number:62323 |
Weblinks
pdf,
General Product Information , Approvals,
RoHS ,
CHINA-RoHS ,
Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
Accessories ,
Product News
| Ratings IEC |
10 A / 250 VAC; 50 Hz |
| Ratings UL/CSA |
15 A / 250 VAC; 60 Hz |
| Dielectric Strength |
> 2 kVDC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz) |
| Allowable Operation Temp. |
-25 °C to 70 °C |
| Degree of Protection |
from front side IP 20 acc. to IEC 60529 |
| Protection Class |
Suitable for appliances with protection class 1 acc. to IEC 61140 |
| Terminal |
moulded |
| Material: Housing |
PVC, black or grey |
| Connector |
C15 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (For hot conditions) pin-temperature 120 °C, 10 A, Protection Class 1 |
Type - R - 3368 - D - Length
The characters are placeholders for the correspondingly keys of selections from the key tables. �?? Typ is placed for the connector type on the second end, length is the cord length in mm.
Type - R - 3368 - D - Length = Cord end 2
| Cord end 2 |
Configuration key |
| zzzz2343422U4250431043214370 |
Type - R - 3368 - D - Length = cord type
| cord type |
Configuration key |
| H05RR-F 3G0,75mm2 |
H |
Type - R - 3368 - D - Length = Color
| Color |
Configuration key |
| Black |
A |
Type - R - 3368 - D - Length = Cord length
| Cord length |
Configuration key |
| 000500, 001000, 001500, 002000, 002500, 003000, 005000 |
