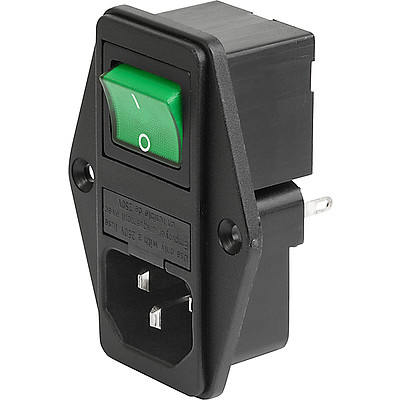

6765 GST Power Entry Module without Filter: IEC Appliance Inlet C14 or C18 with Line Switch 2 pole and Fuseholder 1- or 2-pole
Description
| - |
Panel Mount: Screw-on version from front or rear side, |
| - |
Solder terminals or quick connect terminals |
Approvals
| - |
UL File Number:E93617 |
| - |
CSA File Number:27324 |
Characteristics
| - |
Line switch non-illuminated or illuminated |
Weblinks
pdf-datasheet,
General Product Information , Approvals, CE declaration of conformity,
RoHS ,
CHINA-RoHS ,
Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
CAD-Drawings ,
Accessories ,
Wire Harness ,
Product News
, PCS
, Detailed request for product
,
White Paper
| Ratings IEC |
10 A / 250 VAC; 50 Hz |
| Ratings UL/CSA |
10 A / 250 VAC; 60 Hz |
| Dielectric Strength |
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz) |
| Allowable Operation Temp. |
-25 °C to 70 °C |
| Degree of Protection |
from front side IP 20 acc. to IEC 60529 |
| Protection Class |
Suitable for appliances with protection class I or II acc. to IEC 61140 |
| Terminal |
Solder terminals or quick connect terminals |
| Material: Housing |
PA6, black, UL 94V-0 |
| Fuseholder |
1 or 2 pole, acc. to IEC 60127-6,
for fuse-links 5 x 20 mm |
| Power Acceptance @ Ta > 23°C |
Admissible power acceptance at higher ambient temperature see derating curves |
| Line Switch |
Rocker switch 2-pole, non-illuminated or illuminated black, acc. to IEC 61058-1
Technical Details
|
|
Length of the terminal please find at the order code configuration table
|
6765 - H - A B C N - D - E G O P
The characters are placeholders for the correspondingly keys of selections from the key tables.
6765 - H - A B C N - D - E G O P = Type
| Type |
Configuration key |
| protection class 1 |
X |
| protection class 2 |
B |
6765 - H - A B C N - D - E G O P = Terminals
| Terminal L |
|
Configuration key |
| connection to fuse holder |
|
B |
| short solder terminal (L = 4.8 mm) |
|
2 |
| long solder terminal (L = 8.5 mm) |
|
3 |
| Blade terminal (4.8 x 0.8 mm) |
|
8 |
| Blade terminal (6.3 x 0.8 mm) |
|
9 |
6765 - H - A B C N - D - E G O P = Terminals
| Terminal N |
Configuration key |
| connection to fuse holder |
B |
| short solder terminal (L = 4.8 mm) |
2 |
| long solder terminal (L = 8.5 mm) |
3 |
| Blade terminal (4.8 x 0.8 mm) |
8 |
| Blade terminal (6.3 x 0.8 mm) |
9 |
| Symbols similar as in table A |
6765 - H - A B C N - D - E G O P = Terminals
| Terminal Ground |
Configuration key |
| without terminal |
0 |
| short solder terminal (L = 4.8 mm) |
2 |
| long solder terminal (L = 8.5 mm) |
3 |
| Blade terminal (4.8 x 0.8 mm) |
8 |
| Blade terminal (6.3 x 0.8 mm) |
9 |
| Symbols similar as in table A |
6765 - H - A B C N - D - E G O P = Terminal Fuseholder
| Terminal Fuseholder |
Configuration key |
| solder terminal |
1 |
6765 - H - A B C N - D - E G O P = Color
| Color |
Configuration key |
| Black |
A |
|
6765 - H - A B C N - D - E G O P = Style
| Style |
Configuration key |
| flange with countersunk holes |
1 |
6765 - H - A B C N - D - E G O P = Dimension X
| Dimension "X" |
Configuration key |
| 00 |
|
| The dimension "X" is dispalyed in (1/10 mm). This information is also valid for the order code |
6765 - H - A B C N - D - E G O P = Features
| Features |
Configuration key |
| dead cover |
1 |
| holder for 1 or 2 fuses (text legible, when inlet on top) |
4 |
| holder for 1 or 2 fuses (text legible, when inlet on bottom) |
5 |
|
6765 - H - A B C N - D - E G O P = Switches
| Switches |
Configuration key |
| not used |
0 |
| dead cover |
1 |
| bipolar switch, 4,8mm blade terminal, black rocker |
4 |
| bipolar switch, solder terminals, black rocker |
5 |
| bipolar switch, 4,8mm blade terminal, rocker red illuminated |
6 |
| bipolar switch, solder terminal, rocker red illuminated |
7 |
| bipolar switch, 4,8mm blade terminals, rocker green illuminated |
8 |
| bipolar switch, solder terminals, rocker green illuminated |
9 |
» Variants
|
Config. Code |
Description |
Order Number |
Most Popular
[?]
Term: Most Popular
Explanation:
Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact Form
Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER
|
MOQ
[?]
Term: MOQ
Explanation:
Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders.
Please contact us for assistance:
Contact Form
|
PU
[?]
Term: Packaging unit
Explanation:
The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity).
Please contact SCHURTER for further assistance:
Contact Form
|
e-Shop
[?]
Term: e-Shop
Explanation:
The e-Shop is intended as a simple and easy way to get samples. Please observe the MOQ (minimum order quantity).
The below listed links for the respective part numbers link to the current stock. To assure effective availability before entering the e-Shop.
e-Shop
The access to the e-Shop is also possible without the offered part number selection is possible if you enter the respective part number and the required amount.
You can place an inquiry if a product is currently not available. Products that are not listed with a link to the e-Shop are only available by placing a request. Please assure hereby to indicate the respective part number.
Contact Form
SCHURTER likes to assure with this approach the fastest way to get samples of current items on stock.
|
SCHURTER Stock Check
[?]
Term: SCHURTER Stock Check
Explanation:
The following links reffers to the inquiry form for current stock information of the selected products. It allows checking for the directly available amount as well as the expected delivery time if no or not enough stock is available.
The
SCHURTER Stock Check
Stock Check SCHURTER
|
Distributor Stock Check
[?]
Term: Distributor Stock Check
Explanation:
The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The
Distributor Stock Check
Stock Check Distributor
|

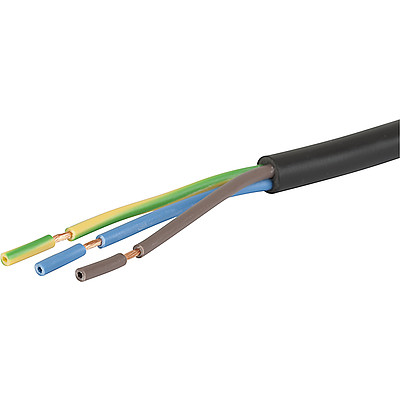

Wire Harness
[?]
Term: Wire Harness
Explanation:
SCHURTER offers various products with customer specific wire harness. These wire strands will be customized. The offered links leads to the specification form for wire harness for the selectected parts.
SCHURTER intends to simplify and speed-up the design in process as well as to reduce costs for sourcing. The specification form for wire harnesses can be opened separately for manually product selection.
Wire Harness
Please consider that the offered service will be offered for SCHURTER components only.
|
| 6765-B-BB01-A-10044 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: without terminal, fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6073 |
|
|
50 |
|
|
|
|
| 6765-B-BB01-A-10054 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: without terminal, fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on bottom), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6074 |
|
|
50 |
|
|
|
|
| 6765-X-B221-A-10045 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: short solder terminal (L = 4.8 mm), ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, solder terminals, black rocker |
4304.6075 |
|
|
50 |
|
|
|
|
| 6765-X-B221-A-10046 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: short solder terminal (L = 4.8 mm), ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, rocker red illuminated |
4304.6076 |
|
|
50 |
|
|
|
|
| 6765-X-B881-A-10044 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: Blade terminal (4.8 x 0.8 mm), ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6077 |
|
|
50 |
|
|
|
|
| 6765-X-BB21-A-10040 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), not used |
4304.6078 |
|
|
50 |
|
|
|
|
| 6765-X-BB21-A-10044 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6079 |
|
|
50 |
|
|
|
|
| 6765-X-BB21-A-10045 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, solder terminals, black rocker |
4304.6080 |
|
|
50 |
|
|
|
|
| 6765-X-BB21-A-10054 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on bottom), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6081 |
|
|
50 |
|
|
|
|
| 6765-X-BB21-A-10055 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on bottom), bipolar switch, solder terminals, black rocker |
4304.6082 |
|
|
50 |
|
|
|
|
| 6765-X-BB21-A-10056 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: short solder terminal (L = 4.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on bottom), bipolar switch, 4,8mm blade terminal, rocker red illuminated |
4304.6083 |
|
|
50 |
|
|
|
|
| 6765-X-BB31-A-10040 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: long solder terminal (L = 8.5 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), not used |
4304.6084 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10040 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), not used |
4304.6085 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10041 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), dead cover |
4304.6086 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10044 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6087 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10046 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, rocker red illuminated |
4304.6088 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10048 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminals, rocker green illuminated |
4304.6089 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10054 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on bottom), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6090 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10058 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on bottom), bipolar switch, 4,8mm blade terminals, rocker green illuminated |
4304.6091 |
|
|
50 |
|
|
|
|
| 6765-X-BB91-A-10044 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (6.3 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6092 |
|
|
50 |
|
|
|
|
| 6765-X-BB91-A-10045 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (6.3 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, solder terminals, black rocker |
4304.6093 |
|
|
50 |
|
|
|
|
| 6765-X-BB91-A-10046 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (6.3 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, rocker red illuminated |
4304.6094 |
|
|
50 |
|
|
|
|
| 6765-X-BB91-A-10054 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (6.3 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on bottom), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6095 |
|
|
50 |
|
|
|
|
| 6765-X-BB01-A-10040 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: without terminal, fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), not used |
4304.6122 |
|
|
50 |
|
|
|
|
| 6765-X-BB81-A-10044 |
6765, IEC Power Entry Module C14, 70°C, version: 1 or 2, L: connection to fuse holder, N: connection to fuse holder, ground: Blade terminal (4.8 x 0.8 mm), fuseholder: solder terminal, color: Black, design: flange with countersunk holes, dimension X: 00, features: holder for 1 or 2 fuses (text legible, when inlet on top), bipolar switch, 4,8mm blade terminal, black rocker |
4304.6123 |
|
|
50 |
|
|
|
|
| The listet variants should be available from stockOther versions on request www.schurter.com/contact |
|
Category / Description |
|
▲
| IEC Connector C15, Rewireable, Straight |
0101
|
| IEC Connector C15A, Rewireable, Straight |
0102
|
| IEC Connector C15A, Rewireable, Straight |
0102-G
|
| IEC Connector C15A, Rewireable, Angled |
0112
|
| IEC Connector C13, Rewireable, Angled |
4012
|
| IEC Connector C13, Rewireable, Angled |
4013
|
| IEC Connector C13, Rewireable, Straight |
4020
|
| IEC Connector C13, Rewireable, Angled |
4021
|
| IEC Connector C13, Rewireable, Straight |
4022
|
| IEC Connector C13, Rewireable, Angled |
4300-06
|
| IEC Connector C15, Rewireable, Straight |
4781
|
| IEC Connector C13, Rewireable, Straight |
4782
|
| IEC Connector C15, Rewireable, Angled |
4784
|
| IEC Connector C13, Rewireable, Angled |
4785
|
| IEC Connector C15, Rewireable, Straight |
8101
|
| IEC Connector C15, Rewireable, Angled |
8111
|
|
|
|
|
▲
| Interconnection Cord C13, 10 A |
|
| Interconnection Cord C13, 10 A |
|
|
|
|
|
▲
| Power Cord with IEC Connector C13, Angled |
0311
|
| Power Cord with IEC Connector C13, Angled |
3011
|
| Power Cord with IEC Connector C13, Angled |
3012
|
| Power Cord with IEC Connector C13, Angled |
3013
|
| Power Cord with IEC Connector C13 |
3020
|
| Power Cord with IEC Connector C13, Straight |
3027
|
| Power Cord with IEC Connector C13, Straight |
302U
|
| Power Cord with IEC Connector C13, Straight |
3030
|
| Power Cord with IEC Connector C13, Angled |
311L
|
| Power Cord with IEC Connector C13, Angled |
312L
|
| Power Cord with IEC Connector C15, Straight, 120°C |
3366
|
| Power Cord with IEC Connector C15, Angled, 120°C |
3368
|

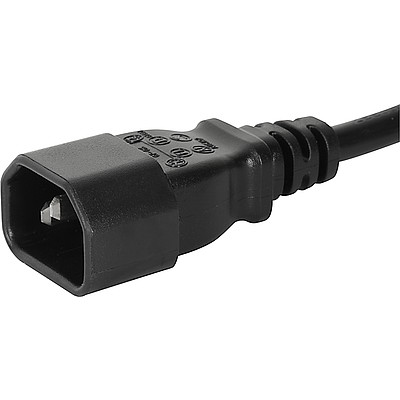

| Power Supply Cord with IEC plug C14, stripped end |
|
|
|
|
|
▲
| Power Supply Cord with IEC Connector C13 straight, stripped end |
|
| Power Supply Cord with IEC Connector C13 angled, stripped end |
|
| EU Power Supply Cord with IEC Connector C13, straight |
|
| EU Power Supply Cord with IEC Connector C13, straight |
|
| US Power Supply Cord with IEC Connector C13, straight |
|
| CH Power Supply Cord with IEC Connector C13, straight |
|
| IT Power Supply Cord with IEC Connector C13, straight |
|
| UK Power Supply Cord with IEC Connector C13, straight |
|
| UK Power Supply Cord with IEC Connector C13, straight |
|
| JP Power Supply Cord with IEC Connector C13, straight |
|
|
|
|
|
|
▲
| Diverse Power Supply and Interconnection Cords 10 A |
|
| Diverse Power Supply and Interconnection Cords 10 A |
|
| Diverse Power Supply and Interconnection Cords 10 A |
|
| UK Power Supply Cord with stipped ends |
|
| Diverse Power Supply and Interconnection Cords 10 A |
|
| Diverse Power Supply and Interconnection Cords 10 A |
|
|
|
|
|
Description |
|
|
|
|
|
|
|
|
| The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. |
04.04.2013
|
|
