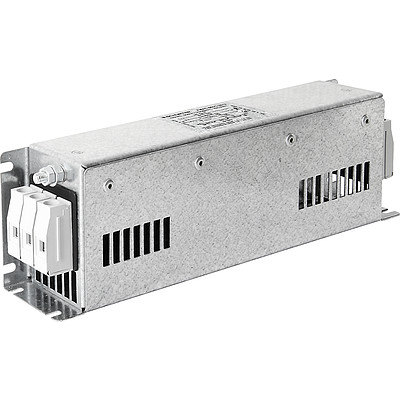

EMV 3-Phase Block Filter: Ultra compact and efficient 1-stage filter in ECO design for 3-phase systems

Description

Description

High attenuation value
Cost optimized filter design with excellent price / perfomance ratio
Very light due to partial potting

Approvals

- VDE Certificate Number: pending
- UL File Number: pending

Applications

Voltage rating 480 VAC for world wide acceptance
Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters
Suitable for use in equipment according to IEC/UL 60950

Weblinks

pdf-datasheet, General Product Information, Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings, Product News , Detailed request for product
Top

Technical Data

Rated Current 16 - 150 A @ Ta 40 °C
Rated voltage 480 VAC, 50/60 Hz
Approval for 16 - 150 A @ Ta 40 °C / 480 VAC; 50/60 Hz
Overload Current 1.5 x Ir
Leakage Current < 33 mA (440 V / 50 Hz)
Dielectric Strength 480 VAC:
> 2.25 kVDC between L-L
> 3 kVDC between L-PE
Test voltage 2 sec
Number of Filter Stages 1-stage
Weight 1 - 7 kg
Material: Housing Aluminum
Sealing Compound UL 94V-0
Mounting Screw-on mounting on chassis, upright or lengthwise
Terminal Bolts and nuts
Operating Temperature [°C] -25 °C to 100 °C
Climatic Category 25/100/21 acc. to IEC 60068-1
Degree of Protection IP 20 acc. to IEC 60529
Protection Class Suitable for appliances with protection class I acc. to IEC 61140
MTBF > 200'000 h acc. to MIL-HB-217 F
Top

Dimension

Dimension

Case 1C
FMAC_ECO_Massbild_Gehäuse_1C
1) Line
2) Load
Case 1D-6
FMAC_ECO_Massbild_Gehäuse_1D-6
1) Line
2) Load
Case 1D-10
FMAC_ECO_Massbild_Gehäuse_1D-10
1) Line
2) Load
Case 1E
FMAC_ECO_Massbild_Gehäuse_1E
1) Line
2) Load
Case 1T
FMAC_ECO_Massbild_Gehäuse_1T
1) Line
2) Load
Case 1G
FMAC_ECO_Massbild_Gehäuse_1G
1) Line
2) Load
Top

CAD


Your Results (0)

Picture(s) [?] Type [?] Order Number [?] Configuration key [?] Comment Model Description [?] CAD Format [?]
            IGS [?] Step [?] Parasolid [?] DXF [?] WRL [?]




Electrical Data

Diagrams

FMAC-ECO_Case_Schaltbild
1) Line
2) Load
Top

Technical data to the filter components

Rated Current [A] L [mH] C1 [μF] C2 [μF] C3 [μF] R1 [MΩ] R2 [MΩ] Filter-Type

110 0.55 6.6 6.6 3.3 1 1 Industrial Version
150 0.48 6.6 6.6 3.3 1 1 Industrial Version
16 0.55 2.2 2.2 3.3 1 1 Industrial Version
25 0.45 2.2 2.2 3.3 1 1 Industrial Version
36 0.57 2.2 2.2 3.3 1 1 Industrial Version
50 0.65 4.7 3.3 3.3 1 1 Industrial Version
55 0.75 4.7 3.3 3.3 1 1 Industrial Version
64 0.55 4.7 3.3 3.3 1 1 Industrial Version
80 0.55 4.7 4.7 3.3 1 1 Industrial Version
Top

Attenuation Loss

. . . . . 0.1/100Ω differential mode ........... 100/0.1Ω differential mode     - - - - differential mode   _____ common mode

Industrial version

16A (FMAC-091C-1610)
FMAC_ECO_Einfügungsdämpfung_16A
25A (FMAC-091C-2510)
FMAC_ECO_Einfügungsdämpfung_25A
36A (FMAC-091D-3610)
FMAC_ECO_Einfügungsdämpfung_36A
50A (FMAC-091D-5010)
FMAC_ECO_Einfügungsdämpfung_50A
55A (FMAC-091D-5510)
FMAC_ECO_Einfügungsdämpfung_55A
64A (FMAC-091E-6410)
FMAC_ECO_Einfügungsdämpfung_64A
80A (FMAC-091T-8010)
FMAC_ECO_Einfügungsdämpfung_80A
110A (FMAC-091G-H110)
FMAC_ECO_Einfügungsdämpfung_110A
150A (FMAC-091G-H210)
FMAC_ECO_Einfügungsdämpfung_150A
Top


All Variants

Tabel of Variants

Rated Current  @ Ta 40°C (75°C)  [A] Characteristic Rated Voltage [VAC] Tripped Power Dissipation [W] Leakage Current [mA] 1) Contact Resistance [mΩ] Weight [kg] Screw clamps [mm2] 2) Housing Order Number [?] A=Most Popular [?]
16 High attenuation - 6 96 7.6 1 kg 4 1C FMAC-091C-1610  A
25 High attenuation - 8 96 4.1 1 kg 4 1C FMAC-091C-2510  A
36 High attenuation - 10 96 2.5 1.3 kg 6 1D-6 FMAC-091D-3610  A
50 High attenuation - 13 103 1.7 1.7 kg 10 1D-10 FMAC-091D-5010  A
55 High attenuation - 14 103 1.5 1.7 kg 10 1D-10 FMAC-091D-5510
64 High attenuation - 17 103 1.4 2 kg 25 1E FMAC-091E-6410  A
110 High attenuation - 28 110 0.8 5.8 kg 50 1G FMAC-091G-H110
150 High attenuation - 40 110 0.6 7 kg 50 1G FMAC-091G-H210
80 High attenuation - 22 110 1.1 5.1 kg 25 1T FMAC-091T-8010
Most Popular.
Availability for all products can be searched real-time: http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex G4 (situation with two interrupted lines) can be much higher.
2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information www.schurter.com/emc_info
Top

Packaging unit

1 Pcs

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. 02.09.2014
