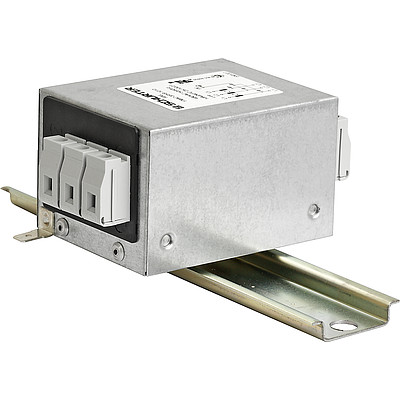

FMAC RAIL EMV 3-Phase Block Filter: 1- stage filter for 3-phase systems, DIN rail mounting
Description3 phase line filter with standard attenuation DIN rail mounting Easy and time saving handling Approvals
| - VDE Certificate Number: |
40030735 |
| - UL File Number: |
E72928 |
ApplicationsEspecially designed for electric switch and control cabinets Qualified for use in equipment according IEC/EN 60950 Weblinks
pdf-datasheet,
General Product Information , Approvals, CE declaration of conformity,
RoHS ,
CHINA-RoHS , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
CAD-Drawings
, Detailed request for product
| Rated Current |
3 - 20 A @ Ta 40 °C |
| Rated voltage |
480 VAC, 50/60 Hz |
| Approval for |
3 - 20 A @ Ta 40 °C / 480 VAC; 50/60 Hz |
| Overload Current |
1.5 x Ir |
| Leakage Current |
standard < 0.5 mA (440 V / 50 Hz) |
| Dielectric Strength |
480 VAC:
2.25 kVDC between L-L
3 kVDC between L-PE
Test voltage (2 sec) |
| Number of Filter Stages |
1-stage |
| Weight |
0.4 kg |
| Material: Housing |
Metal |
| Sealing Compound |
UL 94V-0 |
| Mounting |
DIN rail mounting |
| Terminal |
Bolts and nuts M4, Quick connect terminal for PE |
| Operating Temperature [°C] |
-25 °C to 100 °C |
| Climatic Category |
25/100/21 acc. to IEC 60068-1 |
| Degree of Protection |
IP 20 acc. to IEC 60529 |
| Protection Class |
Suitable for appliances with protection class I acc. to IEC 61140 |
| MTBF |
> 200'000 h acc. to MIL-HB-217 F |
|
1) Line
2) Load
3) Tightening torque 0.6-0.8 Nm, Screw 4mm²
4) Quick connect terminal 6.3x0.8mm
|
|
Rated Current [A] |
Tripped Power Dissipation [W] |
Leakage Current [mA] 1) |
Contact Resistance [mΩ] |
Weight [g] |
Screw clamps [mm2] 2) |
Order Number |
Most Popular
[?]
Term: Most Popular
Explanation:
Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact Form
Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER
|
MOQ
[?]
Term: MOQ
Explanation:
Minimum order quantity. It is necessary to meet the MOQ when placing orders, including sample orders.
Please contact us for assistance:
Contact Form
|
PU
[?]
Term: Packaging unit
Explanation:
The packaging unit is the amount of parts in a standard package. It can also be the multiple of the MOQ (minimum order quantity).
Please contact SCHURTER for further assistance:
Contact Form
|
e-Shop
[?]
Term: e-Shop
Explanation:
The e-Shop is intended as a simple and easy way to get samples. Please observe the MOQ (minimum order quantity).
The below listed links for the respective part numbers link to the current stock. To assure effective availability before entering the e-Shop.
e-Shop
The access to the e-Shop is also possible without the offered part number selection is possible if you enter the respective part number and the required amount.
You can place an inquiry if a product is currently not available. Products that are not listed with a link to the e-Shop are only available by placing a request. Please assure hereby to indicate the respective part number.
Contact Form
SCHURTER likes to assure with this approach the fastest way to get samples of current items on stock.
|
SCHURTER Stock Check
[?]
Term: SCHURTER Stock Check
Explanation:
The following links reffers to the inquiry form for current stock information of the selected products. It allows checking for the directly available amount as well as the expected delivery time if no or not enough stock is available.
The
SCHURTER Stock Check
Stock Check SCHURTER
|
Distributor Stock Check
[?]
Term: Distributor Stock Check
Explanation:
The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The
Distributor Stock Check
Stock Check Distributor
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10 |
2.6 |
0.5 |
8.5 |
395 g |
4 |
FMAC-3RYB-1010 |
A
|
1 |
5 |
|
|
|
| 20 |
4.9 |
2 |
4.1 |
395 g |
4 |
FMAC-3RYB-2010 |
|
1 |
5 |
|
|
|
| 3 |
1.1 |
0.5 |
40 |
355 g |
4 |
FMAC-3RYB-0310 |
|
1 |
5 |
|
|
|
| 6 |
2.3 |
0.5 |
21 |
375 g |
4 |
FMAC-3RYB-0610 |
|
1 |
5 |
|
|
|
1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex G4 (situation with two interrupted lines) can be much higher.
2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information www.schurter.com/emc_info |
| The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. |
02.05.2013
|
|
