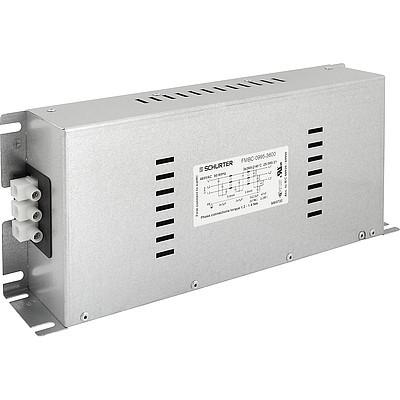

EMV 3-Phase Block Filter: Ultra compact and efficient 2-stage filter in ECO design for 3-phase systems

Environment_Safety RoHS   Environment_Safety China-RoHS Approval marks cURus   Approval marks ENEC 10

Description

Description

High attenuation value
Cost optimized filter design with excellent price / perfomance ratio
Very light due to partial potting

Standards

IEC 60939
UL 1283, Edition 5, CSA 22.2 No. 8-M1986, @ Ta 40 °C

Approvals

- VDE Certificate Number: 40023521
- UL File Number: E72928

Applications

Voltage rating 480 VAC for world wide acceptance
Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters
Suitable for use in equipment according to IEC/UL 60950

Weblinks

pdf-datasheet, General Product Information , Approvals, CE declaration of conformity, RoHS , CHINA-RoHS , REACH , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings , PCN , Detailed request for product
Top

Technical Data

Rated Current 10 - 115 A
Rated voltage 480 VAC, 50/60 Hz
Approval for 10 - 115 A @ Ta 40 °C / 480 VAC; 50/60 Hz
Overload Current 1.5 x Ir
Leakage Current industrial < 5 mA (440 V / 50 Hz)
Dielectric Strength 480 VAC:
> 2.25 kVDC between L-L
> 3 kVDC between L-PE
Number of Filter Stages 2-stage
Weight 1.1 - 5 kg
Material: Housing Aluminum
Sealing Compound UL 94V-0
Mounting Screw-on mounting on chassis, upright or lengthwise
Terminal Bolts and nuts
Operating Temperature [°C] -25 °C to 100 °C
Climatic Category 25/100/21 acc. to IEC 60068-1
Degree of Protection IP 20 acc. to IEC 60529
Protection Class Suitable for appliances with protection class I acc. to IEC 61140
MTBF > 200'000 h acc. to MIL-HB-217 F
Top

Dimension

Dimension

Case 94
FMBC_ECO_Gehäuse_94_3
1) Line
2) Load
Case 95
FMBC_ECO_Gehäuse_95_3
1) Line
2) Load
Case 96
FMBC_ECO_Gehäuse_96_3
1) Line
2) Load
Case 97
FMBC_ECO_Gehäuse_97_3
1) Line
2) Load
Top

CAD


Electrical Data

Diagrams

 FMBC_ECO_Case_Schaltbild
1) Line
2) Load
Top

Technical data to the filter components

Rated Current [A] L [mH] C1 [μF] C2 [μF] C3 [μF] C4 [nF] R1 [MΩ] R2 [MΩ] Netzfitler Auswahl [?]
10 2.3 1 1 1 10 1 1 Industrial Version
20 1.5 1 1 1 10 1 1 Industrial Version
36 0.9 1 1 2.2 47 1 2.2 Industrial Version
50 0.45 1 1 2.2 47 1 2.2 Industrial Version
66 0.45 1 1 2.2 47 1 2.2 Industrial Version
80 0.32 1 1 2.2 47 1 2.2 Industrial Version
115 0.24 1 2.2 2.2 100 1 2.2 Industrial Version
Top

Attenuation Loss

. . . . . 0.1/100Ω differential mode ........... 100/0.1Ω differential mode     - - - - differential mode   _____ common mode

Industrial version

10A (FMBC-0994-1000)
FMBC-ECO_Einfügungsdämpfung_10A
20A (FMBC-0994-2000)
FMBC-ECO_Einfügungsdämpfung_20A
36A (FMBC-0995-3600)
FMBC-ECO_Einfügungsdämpfung_36a
50A (FMBC-0996-5000)
FMBC-ECO_Einfügungsdämpfung_50A
66A (FMBC-0996-6600)
FMBC-ECO_Einfügungsdämpfung_66A
80A (FMBC-0996-8000)
FMBC-ECO_Einfügungsdämpfung_80A
115A (FMBC-0997-H115)
FMBC-ECO_Einfügungsdämpfung_115A
Top


All Variants

Tabel of Variants

Rated Current [A] Tripped Power Dissipation [W] Contact Resistance [mΩ] Leakage Current [mA] 1) Weight [kg] Screw clamps [mm2] 2) Housing Packaging unit [PCS] Order Number [?] A=Most Popular [?] MOQ [?] Free Sample [?] PU [?] e-Shop [?] SCHURTER Stock Check [?] Distributor Stock Check [?]

10 4 37 5 1.1 kg 10 94 1 FMBC-0994-1000  A  1 1 » » »
20 9 20 5 1.6 kg 10 94 1 FMBC-0994-2000  A  1 1 » » »
36 5 3.5 7.5 2.2 kg 16 95 1 FMBC-0995-3600  A  1 1 » » »
50 20 7.5 7.5 2.7 kg 16 95 1 FMBC-0995-5000  A  1 1 » » »
66 22 4.5 7.5 3.4 kg 25 96 1 FMBC-0996-6600 1 1 » » »
80 24 3.5 7.5 3.4 kg 25 96 1 FMBC-0996-8000 1 1 » » »
115 36 2.5 15.0 5 kg 35 97 1 FMBC-0997-H115 1 1 » » »
Most Popular.
Availability for all products can be searched real-time: http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex G4 (situation with two interrupted lines) can be much higher.
2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information www.schurter.com/emc_info
Top

Packaging unit

1 Pcs

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. 22.07.2014
