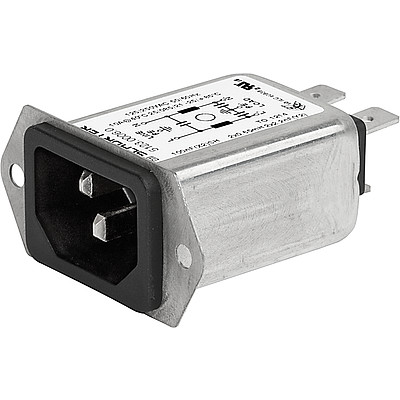

5123 EMV Power Entry Modules with Filter: IEC Appliance Inlet C14 or C18 with Filter, high attenuation, ECO design, Front- or Rear Side Mounting
Standard- or Medical-Filter
Description
| - |
Panel Mount: Screw-on version from front or rear side, snap-in version from front side, PCB Version from rear side |
| - |
2 Functions: Appliance Inlet protection class I or II, Line filter in standard and medical version |
| - |
Solder, quick connect or wire (stranded) |
| - |
PCB Mounting |
| - |
Earth Terminal |
Approvals
| - |
VDE Certificate Number:40016382 |
| - |
UL File Number:E72928 |
Characteristics
| - |
Compact filter with high asymmetrical attenuation
Optimal shielding due to completely closed filter case, unpotted |
| - |
Designed for standard and medical applications
Suitable for assembly in metal plated plastic housings |
| - |
Qualified for use in equipment according IEC/EN 60950 |
Other versions on request
| - |
Snap-in for panel thickness >2mm to 3mm |
| - |
flexible wire with various lenghts |
| - |
Class X1- and Y1-capacitors for enhanced withstand voltage |
| - |
Variant with notch for V-Lock mating Cordsets |
ReferencesAlternative: Standard version Weblinks
pdf-datasheet,
General Product Information , Approvals, CE declaration of conformity,
RoHS ,
CHINA-RoHS ,
Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
CAD-Drawings ,
Accessories ,

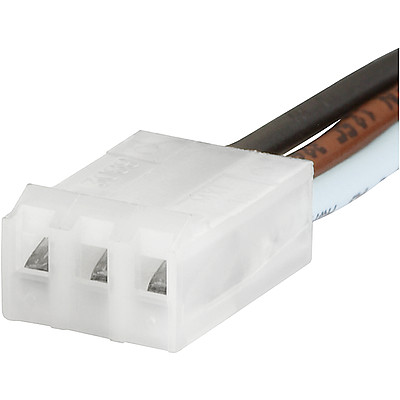

Wire Harness ,
Product News
, Detailed request for product

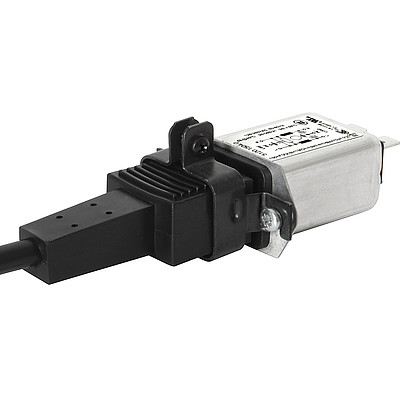

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
| Ratings IEC |
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz |
| Ratings UL/CSA |
1 - 15 A @ Ta 40 °C / 250 VAC; 60 Hz |
| Leakage Current |
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz) |
| Dielectric Strength |
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec) |
| Allowable Operation Temp. |
-25 °C to 85 °C |
| Climatic Category |
25/085/21 acc. to IEC 60068-1 |
Degree of Protection
[?]
Term: IP-Protection
Explanation:
The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects.
I. index number: protection from the penetration of foreign objects 0 non-protected
1 ≥ 50 mm diameter (back of hand)
2 ≥ 12.5 mm diameter (finger)
3 ≥ 2.5 mm diameter (tool)
4 ≥ 1 mm diameter (wire)
5 dust-protected
6 dust-tight
II. index number: protection from water penetration with harmful effects
0 non-protected
1 vertically dripping
2 dripping (15° tilted)
3 spraying
4 splashing
5 jetting
6 powerful jetting
7 temporary immersion (1 m, 30 min)
8 continous immersion 9K: water at high pressure / steam jet cleaning (Water that is addressed against the housing from any direction under increased pressure, should have no harmful effects.
|
from front side IP 40 acc. to IEC 60529 |
| Protection Class |
Suitable for appliances with protection class I or II acc. to IEC 61140 |
| Terminal |
Quick connect terminals 6.3 x 0.8 mm
Solder terminals
Flexible wire AWG18 (15A AWG16), 150 mm |
| Panel Thickness s |
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 2 mm
(all steps with one variant) |
| Material: Housing |
Themoplast / steel tin-plated, black / metallic, UL 94V-0 |
| Appliance-Inlet/-Outlet |
C14 / C18 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I or II |
| Line Filter |
Standard and Medical Version, IEC 60939, IEC 60601 1, UL 1283, UL 544, CSA C22.2 no. 8
Technical Details
|
| MTBF |
> 3'000'000 h acc. to MIL-HB-217 F |
|
Category / Description |
|
▲

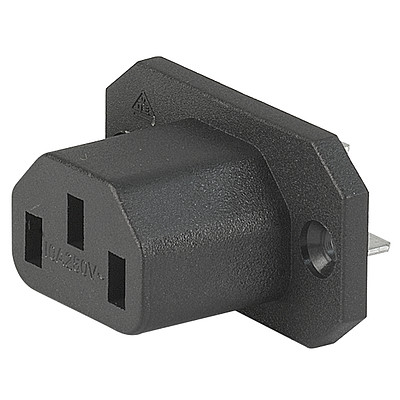

| IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal |
4787
|
| IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal |
4788
|
| IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal |
5091
|
|
|
|
|
▲
| IEC Connector C13, Rewireable, Angled |
4012
|
| IEC Connector C13, Rewireable, Angled |
4013
|
| IEC Connector C13, Rewireable, Straight |
4020
|
| IEC Connector C13, Rewireable, Straight |
4022
|
| IEC Connector C13, Rewireable, Angled |
4300-06
|
| IEC Connector C13, Rewireable, Straight |
4782
|
| IEC Connector C13, Rewireable, Angled |
4785
|
|
|
|
|
▲

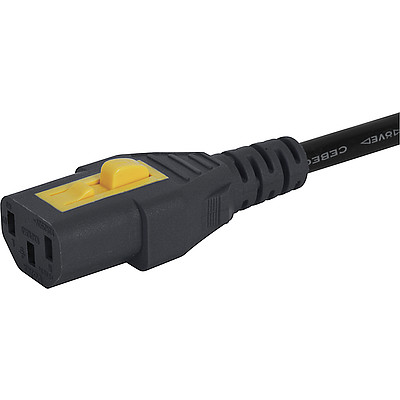

| Overview Power Supply Cord with IEC Connector C13, V-Lock, straight |
VAC13KS
|
|
|
|
|
▲
| Diverse Power Supply and Interconnection Cords 10 A |
|
|
|
|
