FMBB NEO General Information shop
Shop
pdf
pdf-datasheet

Order Number: toset


EMV Single Phase Block Filter: AC Filter 2-Stage, Broad Band Attenuation


Medical
New_Logo
FMBB_NEO_Katalogbild_1
Quick connect terminals 6.3x0.8 mm

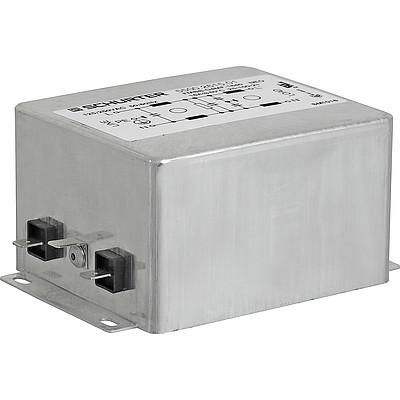

Case MF
FMBB_NEO_Katalogbild_2
Quick connect terminals 6.3x0.8 mm

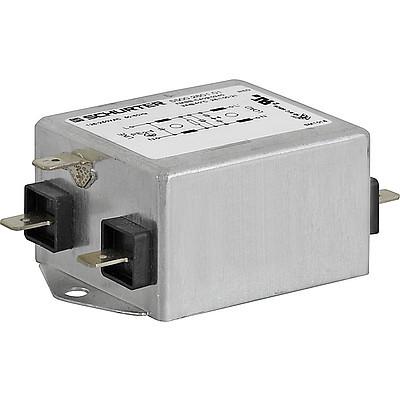

Case 09
FMBB_NEO_Katalogbild_3
Bolt and nut M4

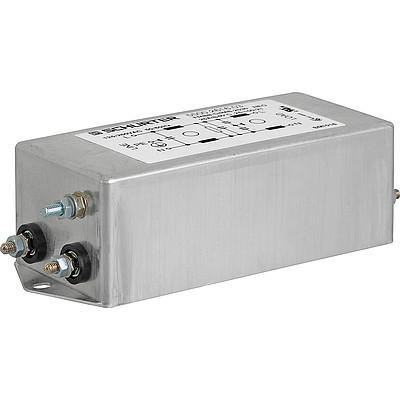

Case MB
Environment_Safety RoHS   Environment_Safety China-RoHS Approval marks cURus   Approval marks ENEC 10

Description

Description

- Chassis: Screw-on mounting, from top
- Line filter in standard and medical version,, 2 stages
- 3 designs: Design C, Design D, Design F
- Quick connect-, wired- or bolt terminals
- High symmetrical and asymmetrical attenuation in the frequency range of 100kHz up to 300MHz

Approvals

- VDE Certificate Number: 40030410
- UL File Number: E72928

Characteristics

- Designed for current applications of 1 - 36 A
- Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenuated
- Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 60950

Other versions on request

- Version with wire connection

References

Alternative: Standard version

Weblinks

pdf-datasheet, General Product Information , Approvals, CE declaration of conformity, RoHS , CHINA-RoHS , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings , Detailed request for product
Top

Technical Data

Ratings IEC 1 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz
Ratings UL/CSA 1 - 30 A @ Ta 40 °C / 125/250 VAC; 60 Hz
Leakage Current standard < 0.5 mA (250 V / 60 Hz)
medical (M5) < 5 µA resp. (M80) < 80 µA (250 V / 60 Hz)
Dielectric Strength 1.7 kVDC between L-N
2.75 kVDC between L/N-PE
Test voltage (2 sec)
Allowable Operation Temp. -25 °C to 100 °C
Climatic Category 25/100/21 acc. to IEC 60068-1
Degree of Protection [?] from rear-side IP 20 IEC 60529
Protection Class Suitable for appliances with protection class I acc. to IEC 61140
Terminal Quick connect terminal 6.3 x 0.8 mm
Bolt and nut M4
Material: Housing Aluminum
Line Filter Standard Version, IEC 60939, UL 1283 ed.5, CSA C22.2 no. 8
Technical Details
MTBF > 200'000 h acc. to MIL-HB-217 F
Top

Dimension

Dimension

Case 09 with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_09_Steck
1) Line2) Load
Case MB with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_MB_Steck
1) Line2) Load
Case MB with bolt and nut M4
FMBB_NEO_Massbild_Gehäuse_MB_Schraub
1) Line
2) Load
3) Nut torque 0.8...1 Nm, keep lock-nut fastened
4) Lock-nut do not unscrew
5) PE; M4x16; 1.2...1.5 Nm, keep lock-nut fastened
Case MC with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_MC_Steck
1) Line2) Load
Case MD with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_MD_Steck
1) Line2) Load
Case ME with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_ME_Steck
1) Line2) Load
Case MF with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_MF_Steck
1) Line2) Load
Case MF with bolt and nut M4
FMBB_NEO_Massbild_Gehäuse_MF_Schraub
1) Line
2) Load
3) Nut torque 0.8...1 Nm, keep lock-nut fastened
4) Lock-nut do not unscrew
5) PE; M4x16; 1.2...1.5 Nm, keep lock-nut fastened
Case with wire leads
FMBB_NEO_Gehäuse_mit_Litzen
1) Line
2) Load
3) Brown
4) Yellow-Green
5) Blue
Top

CAD


Electrical Data

Diagrams

Design C and D
FMBB_NEO_Schaltbild_1
1) Line, 2) Load
Bleeding resistor R = 1 MΩ
Medical (M5) without Cy
Design F
FMBB_NEO_Schaltbild_2
Top

Attenuation Loss

. . . . . 0.1/100Ω differential mode ........... 100/0.1Ω differential mode     - - - - differential mode   _____ common mode

Standard version

1 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_1A_Design_1
3 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_3A_Design_1
6 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_6A_Design_1
10 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_10A_Design_1
12 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_12A_Design_1
16 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_16A_Design_1
20 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_20A_Design_1
30 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_30A_Design_1
1 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_1A_Design_2
3 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_3A_Design_2
6 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_6A_Design_2
10 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_10A_Design_2
12 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_12A_Design_2
16 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_16A_Design_2
25 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_25A_Design_2
36 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_36A_Design_2
1 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_1A_Design_3
3 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_3A_Design_3
6 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_6A_Design_3
10 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_10A_Design_3
12 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_12A_Design_3
16 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_16A_Design_3

Medical version (M5)

1 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_1A_Design_C
3 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_3A_Design_C
6 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_6A_Design_C
10 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_10A_Design_C
12 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_12A_Design_C
16 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_16A_Design_C
20 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_20A_Design_C
30 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M5_30A_Design_C
1 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_1A_Design_D
3 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_3A_Design_D
6 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_6A_Design_D
10 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_10A_Design_D
12 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_12A_Design_D
16 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_16A_Design_D
25 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_25A_Design_D
36 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M5_36A_Design_D
1 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M5_1A_Design_F
3 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M5_3A_Design_F
6 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M5_6A_Design_F
10 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M5_10A_Design_F
12 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M5_12A_Design_F
16 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M5_16A_Design_F

Medical version (M80)

1 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_1A_Design_C
3 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_3A_Design_C
6 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_6A_Design_C
10 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_10A_Design_C
12 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_12A_Design_C
16 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_16A_Design_C
20 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_20A_Design_C
30 A / Design C
FMBB_NEO_Einfügungsdämpfungskurve_M80_30A_Design_C
1 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_1A_Design_D
3 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_3A_Design_D
6 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_6A_Design_D
10 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_10A_Design_D
12 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_12A_Design_D
16 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_16A_Design_D
25 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_25A_Design_D
36 A / Design D
FMBB_NEO_Einfügungsdämpfungskurve_M80_36A_Design_D
1 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M80_1A_Design_F
3 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M80_3A_Design_F
6 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M80_6A_Design_F
10 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M80_10A_Design_F
12 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M80_12A_Design_F
16 A / Design F
FMBB_NEO_Einfügungsdämpfungskurve_M80_16A_Design_F
Top


Variants

Tabel of Variants

Rated current Filter-Type Terminal Design L L1 Cx Cy Ri Power Loss Weight Housing Packaging Order Number A=Most Popular [?] MOQ [?] PU [?] e-Shop [?] SCHURTER Stock Check [?] Distributor Stock Check [?]
[A]         [mH]   [mH]   [µF]   [nF]   [mΩ]   [W]   [g]     [ST]

1 Standard Quick connect terminal 6.3 x 0.8 mm C 12 - 0.22 4.7 945 1.9 125 g 09 10 5500.2600.01 1 10 » » »
3 Standard Quick connect terminal 6.3 x 0.8 mm C 2.5 - 0.22 4.7 120 2.2 130 g 09 10 5500.2601.01  A  1 10 » » »
6 Standard Quick connect terminal 6.3 x 0.8 mm C 0.97 - 0.22 4.7 26.2 1.9 130 g 09 10 5500.2602.01  A  1 10 » » »
10 Standard Quick connect terminal 6.3 x 0.8 mm C 0.8 - 0.47 4.7 12.9 2.6 200 g MC 10 5500.2603.01 1 10 » » »
12 Standard Quick connect terminal 6.3 x 0.8 mm C 0.58 - 0.47 4.7 10.1 2.9 200 g MC 10 5500.2604.01 1 10 » » »
16 Standard Quick connect terminal 6.3 x 0.8 mm C 0.65 - 0.33 4.7 8 4.1 265 g MD 10 5500.2605.01  A  1 10 » » »
20 Standard Quick connect terminal 6.3 x 0.8 mm C 0.6 - 1 4.7 4.6 3.7 390 g ME 5 5500.2606.01  A  1 5 » » »
30 Standard Bolt and nut M4 C 0.6 - 1 10 2.5 4.5 855 g MF 3 5500.2607.03 1 3 » » »
1 Standard Quick connect terminal 6.3 x 0.8 mm D 22 - 0.33 4.7 1320 2.7 165 g MC 10 5500.2610.01 1 10 » » »
3 Standard Quick connect terminal 6.3 x 0.8 mm D 9.8 - 0.47 4.7 226 4.1 225 g MD 10 5500.2611.01  A  1 10 » » »
6 Standard Quick connect terminal 6.3 x 0.8 mm D 7.8 - 1 4.7 55.4 4 350 g ME 5 5500.2612.01  A  1 5 » » »
10 Standard Quick connect terminal 6.3 x 0.8 mm D 4.5 - 1 4.7 23.6 4.7 625 g MB 4 5500.2613.01 1 4 » » »
12 Standard Quick connect terminal 6.3 x 0.8 mm D 3.25 - 1 4.7 16 4.6 630 g MB 4 5500.2614.01 1 4 » » »
16 Standard Quick connect terminal 6.3 x 0.8 mm D 2.8 - 1 4.7 10.9 5.6 826 g MF 3 5500.2615.01 1 3 » » »
25 Standard Bolt and nut M4 D 2.0 - 2.2 4.7 4.8 6 830 g MB 4 5500.2616.03 1 4 » » »
36 Standard Bolt and nut M4 D 1.23 - 2.2 4.7 3.3 8.5 810 g MB 4 5500.2617.03 1 4 » » »
1 Standard Quick connect terminal 6.3 x 0.8 mm F 22 0.49 0.33 4.7 1200 2.4 180 g MC 10 5500.2620.01 1 10 » » »
3 Standard Quick connect terminal 6.3 x 0.8 mm F 9.8 0.16 0.47 4.7 194 3.5 240 g MD 10 5500.2621.01  A  1 10 » » »
6 Standard Quick connect terminal 6.3 x 0.8 mm F 7.8 0.11 1 4.7 60 4.3 400 g ME 5 5500.2622.01 1 5 » » »
10 Standard Quick connect terminal 6.3 x 0.8 mm F 4.5 0.06 1 4.7 21 4.2 645 g MB 4 5500.2623.01 1 4 » » »
12 Standard Quick connect terminal 6.3 x 0.8 mm F 3.25 0.05 1 4.7 14.6 4.2 695 g MB 4 5500.2624.01 1 4 » » »
16 Standard Quick connect terminal 6.3 x 0.8 mm F 2.8 0.043 1 4.7 13.7 7 950 g MF 3 5500.2625.01 1 3 » » »
1 Medical (M5) Quick connect terminal 6.3 x 0.8 mm C 12 - 0.22 - 945 1.9 125 g 09 10 5500.2600.04 10 10 » » »
3 Medical (M5) Quick connect terminal 6.3 x 0.8 mm C 2.5 - 0.22 - 120 2.2 130 g 09 10 5500.2601.04 10 10 » » »
6 Medical (M5) Quick connect terminal 6.3 x 0.8 mm C 0.97 - 0.22 - 26.2 1.9 130 g 09 10 5500.2602.04 10 10 » » »
10 Medical (M5) Quick connect terminal 6.3 x 0.8 mm C 0.8 - 0.47 - 12.9 2.6 200 g MC 10 5500.2603.04 10 10 » » »
12 Medical (M5) Quick connect terminal 6.3 x 0.8 mm C 0.58 - 0.47 - 10.1 2.9 200 g MC 10 5500.2604.04 10 10 » » »
16 Medical (M5) Quick connect terminal 6.3 x 0.8 mm C 0.65 - 0.33 - 8 4.1 265 g MD 10 5500.2605.04 10 10 » » »
20 Medical (M5) Quick connect terminal 6.3 x 0.8 mm C 0.6 - 1 - 4.6 3.7 390 g ME 5 5500.2606.04 5 5 » » »
30 Medical (M5) Bolt and nut M4 C 0.6 - 1 - 2.5 4.5 855 g MF 3 5500.2607.06 3 3 » » »
1 Medical (M5) Quick connect terminal 6.3 x 0.8 mm D 22 - 0.33 - 1320 2.7 165 g MC 10 5500.2610.04 10 10 » » »
3 Medical (M5) Quick connect terminal 6.3 x 0.8 mm D 9.8 - 0.47 - 226 4.1 225 g MD 10 5500.2611.04 10 10 » » »
6 Medical (M5) Quick connect terminal 6.3 x 0.8 mm D 7.8 - 1 - 55.4 4 350 g ME 5 5500.2612.04 5 5 » » »
10 Medical (M5) Quick connect terminal 6.3 x 0.8 mm D 4.5 - 1 - 23.6 4.7 625 g MB 4 5500.2613.04 4 4 » » »
12 Medical (M5) Quick connect terminal 6.3 x 0.8 mm D 3.25 - 1 - 16 4.6 630 g MB 4 5500.2614.04 4 4 » » »
16 Medical (M5) Quick connect terminal 6.3 x 0.8 mm D 2.8 - 1 - 10.9 5.6 826 g MF 3 5500.2615.04 3 3 » » »
25 Medical (M5) Bolt and nut M4 D 2.0 - 2.2 - 4.8 6 830 g MB 4 5500.2616.06 4 4 » » »
36 Medical (M5) Bolt and nut M4 D 1.23 - 2.2 - 3.3 8.5 810 g MB 4 5500.2617.06 1 4 » » »
1 Medical (M5) Quick connect terminal 6.3 x 0.8 mm F 22 0.49 0.33 - 1200 2.4 180 g MC 10 5500.2620.04 10 10 » » »
3 Medical (M5) Quick connect terminal 6.3 x 0.8 mm F 9.8 0.16 0.47 - 194 3.5 240 g MD 10 5500.2621.04 10 10 » » »
6 Medical (M5) Quick connect terminal 6.3 x 0.8 mm F 7.8 0.11 1 - 60 4.3 400 g ME 5 5500.2622.04 5 5 » » »
10 Medical (M5) Quick connect terminal 6.3 x 0.8 mm F 4.5 0.06 1 - 21 4.2 645 g MB 4 5500.2623.04 4 4 » » »
12 Medical (M5) Quick connect terminal 6.3 x 0.8 mm F 3.25 0.05 1 - 14.6 4.2 695 g MB 4 5500.2624.04 4 4 » » »
16 Medical (M5) Quick connect terminal 6.3 x 0.8 mm F 2.8 0.043 1 - 13.7 7 950 g MF 3 5500.2625.04 3 3 » » »
1 Medical (M80) Quick connect terminal 6.3 x 0.8 mm C 12 - 0.22 0.47 945 1.9 125 g 09 10 5500.2600.07 10 10 » » »
3 Medical (M80) Quick connect terminal 6.3 x 0.8 mm C 2.5 - 0.22 0.47 120 2.2 130 g 09 10 5500.2601.07 10 10 » » »
6 Medical (M80) Quick connect terminal 6.3 x 0.8 mm C 0.97 - 0.22 0.47 26.2 1.9 130 g 09 10 5500.2602.07 10 10 » » »
10 Medical (M80) Quick connect terminal 6.3 x 0.8 mm C 0.8 - 0.47 0.47 12.9 2.6 200 g MC 10 5500.2603.07 10 10 » » »
12 Medical (M80) Quick connect terminal 6.3 x 0.8 mm C 0.58 - 0.47 0.47 10.1 2.9 200 g MC 10 5500.2604.07 10 10 » » »
16 Medical (M80) Quick connect terminal 6.3 x 0.8 mm C 0.65 - 0.33 0.47 8 4.1 265 g MD 10 5500.2605.07 10 10 » » »
20 Medical (M80) Quick connect terminal 6.3 x 0.8 mm C 0.6 - 1 0.47 4.6 3.7 390 g ME 5 5500.2606.07 5 5 » » »
30 Medical (M80) Bolt and nut M4 C 0.6 - 1 0.47 2.5 4.5 855 g MF 3 5500.2607.09 3 3 » » »
1 Medical (M80) Quick connect terminal 6.3 x 0.8 mm D 22 - 0.33 0.47 1320 2.7 165 g MC 10 5500.2610.07 10 10 » » »
3 Medical (M80) Quick connect terminal 6.3 x 0.8 mm D 9.8 - 0.47 0.47 226 4.1 225 g MD 10 5500.2611.07 10 10 » » »
6 Medical (M80) Quick connect terminal 6.3 x 0.8 mm D 7.8 - 1 0.47 55.4 4 350 g ME 5 5500.2612.07 5 5 » » »
10 Medical (M80) Quick connect terminal 6.3 x 0.8 mm D 4.5 - 1 0.47 23.6 4.7 625 g MB 4 5500.2613.07 4 4 » » »
12 Medical (M80) Quick connect terminal 6.3 x 0.8 mm D 3.25 - 1 0.47 16 4.6 630 g MB 4 5500.2614.07 4 4 » » »
16 Medical (M80) Quick connect terminal 6.3 x 0.8 mm D 2.8 - 1 0.47 10.9 5.6 826 g MF 3 5500.2615.07 3 3 » » »
25 Medical (M80) Bolt and nut M4 D 2.0 - 2.2 0.47 4.8 6 830 g MB 4 5500.2616.09 4 4 » » »
36 Medical (M80) Bolt and nut M4 D 1.23 - 2.2 0.47 3.3 8.5 810 g MB 4 5500.2617.09 4 4 » » »
1 Medical (M80) Quick connect terminal 6.3 x 0.8 mm F 22 0.49 0.33 0.47 1200 2.4 180 g MC 10 5500.2620.07 10 10 » » »
3 Medical (M80) Quick connect terminal 6.3 x 0.8 mm F 9.8 0.16 0.47 0.47 194 3.5 240 g MD 10 5500.2621.07 10 10 » » »
6 Medical (M80) Quick connect terminal 6.3 x 0.8 mm F 7.8 0.11 1 0.47 60 4.3 400 g ME 5 5500.2622.07 5 5 » » »
10 Medical (M80) Quick connect terminal 6.3 x 0.8 mm F 4.5 0.06 1 0.47 21 4.2 645 g MB 4 5500.2623.07 4 4 » » »
12 Medical (M80) Quick connect terminal 6.3 x 0.8 mm F 3.25 0.05 1 0.47 14.6 4.2 695 g MB 4 5500.2624.07 4 4 » » »
16 Medical (M80) Quick connect terminal 6.3 x 0.8 mm F 2.8 0.043 1 0.47 13.7 7 950 g MF 3 5500.2625.07 3 3 » » »
Most Popular.
Availability for all products can be searched real-time: http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER

Design �?�C) high symmetrical and asymmetrical noise attenuation
�?�D) Excellent high frequency noise attenuation
�?�F) Excellent low frequency noise attenuation
Top

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. 11.03.2014
