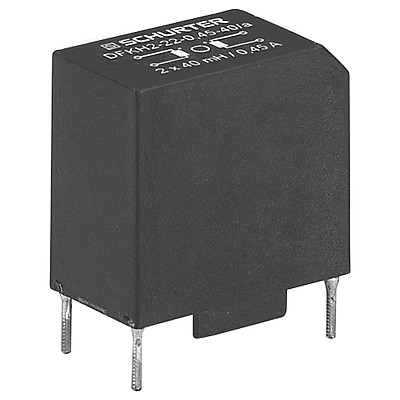

EMV Inductor: Magnetically Compensated Choke, 1-phase, high design

Description

Description

Current compensated choke
1-phase choke
THT-terminals
Inductor vertically positioned in housing

Standards

- EN 60938
- UL 1283
- CSA 22.2 no 8

Applications

Attenuation of common mode interferences
Designed for 230/400 VAC applications
Chopper amplifiers
DC drives and stepper motor controls
Switching power supplies

Weblinks

pdf-datasheet, General Product Information, Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-Drawings, Product News , Detailed request for product, SPICE Library
Top

Technical Data

Rated voltage up to 440 VAC
Rated Current 0.6 - 6.3 A @ Ta 40 °C
Rated inductance 0.6 - 50 mH, Tol. -30% +50%
Power Operating Frequency 50 - 400 Hz
Terminal technic THT
Weight 3 - 30 g
Material: Housing UL 94V-0
Sealing Compound UL 94V-0
Test Voltage 1.8 kV, 50 Hz, 1 min, winding to winding
Isolation Voltage 2 kV eff., winding to ambient
Climatic Category 25/100/21 acc. to IEC 60068-1
Allowable Operation Temp. -25 °C to 100 °C
Top

Dimension

Dimension

Case 50-2, 51-2, 52-2
DFKH_Massbild_Gehäuse_50-2
Case 09-2
DFKH_Massbild_Gehäuse_09-2
Case 19-2
DFKH_Massbild_Gehäuse_19-2
Top

CAD


Your Results (0)

Picture(s) [?] Type [?] Order Number [?] Configuration key [?] Comment Model Description [?] CAD Format [?]
            IGS [?] Step [?] Parasolid [?] DXF [?] WRL [?]




Electrical Data

Impedance curves

DFKH-14-xxxx
DFKH-14-xxxx_Impedanzkurven
DFKH-22-xxxx
DFKH-22-xxxx_Impedanzkurven
DFKH-31-xxxx
DFKH-31-xxxx_Impedanzkurven
Top


All Variants

Tabel of Variants

In [A] Ln [mH] Rcu [mΩ] Tripped Power Dissipation [W] fRES [MHz] Weight [g] Housing Packing unit [pcs.] Order Number [?] A=Most Popular [?]
0.6 11 600 0.5 0.5 3 g 50-2 100 DFKH-14-0001  A
0.6 50 1200 0.9 0.15 22 g 19-2 70 DFKH-31-0001  A
1 20 500 1 0.25 10 g 09-2 50 DFKH-22-0002  A
1 33 700 1.4 0.25 30 g 19-2 70 DFKH-31-0002
1 4 250 0.5 1.2 3 g 51-2 100 DFKH-14-0002  A
1.4 27 470 1.8 0.3 30 g 19-2 70 DFKH-31-0003
2 1 65 0.5 2.5 3 g 52-2 100 DFKH-14-0003  A
2 6 150 1.3 0.6 10 g 09-2 50 DFKH-22-0003  A
2 6.8 150 1.2 0.5 30 g 19-2 70 DFKH-31-0005
2.5 5.6 110 - - 30 g 19-2 70 DFKH-31-0006
4 1.5 36 1.2 1.5 10 g 09-2 50 DFKH-22-0004  A
4 3.3 58 1.8 0.8 30 g 19-2 70 DFKH-31-0007  A
6 2 24 1.8 1.2 30 g 19-2 70 DFKH-31-0008
6.3 0.6 15 1.4 2.5 10 g 09-2 50 DFKH-22-0005  A
Most Popular.
Availability for all products can be searched real-time: http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Top

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. 21.08.2014
