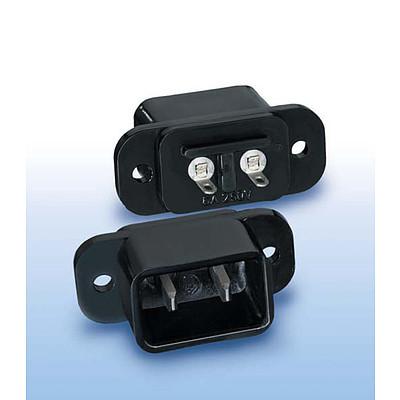

3017 GST Discontinued Products: IEC Connector C9, Rewireable Appliance Internal
Description
| - |
Connector: Screwing cable terminal, |
| - |

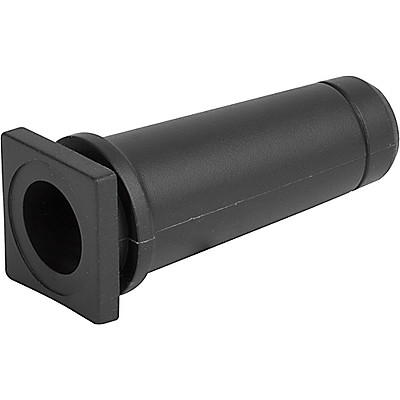

Note: strain relief has to be ordered separately, mating strain reliefs please find under accessories |
ReferencesThis type is Phase-out without alternate type Last order possibility: 31.05.2011 Weblinks
pdf,
General Product Information , Approvals,
RoHS ,
CHINA-RoHS ,
Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check,
Accessories ,
Product News
, Detailed request for product
| Ratings IEC |
6 A / 250 VAC; 50 Hz |
| Ratings UL/CSA |
6 A / 250 VAC; 60 Hz |
| Dielectric Strength |
> 4 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz) |
| Allowable Operation Temp. |
-25 °C to 70 °C |
| Degree of Protection |
from front side IP 20 acc. to IEC 60529 |
| Protection Class |
Suitable for appliances with protection class 2 acc. to IEC 61140 |
| Terminal |
Screw clamps |
| Material: Housing |
PA6, black / grey / white, UL 94V-0 |
3017 - H - A B C 0- D - E J
The characters are placeholders for the correspondingly keys of selections from the key tables.
3017 - H - A B C 0- D - E J = Type
| Type |
Configuration key |
| protection class 1 |
X |
3017 - H - A B C 0- D - E J = Terminals
| Terminal L |
|
Configuration key |
| screw terminal |
|
A |
3017 - H - A B C 0- D - E J = Terminals
| Terminal N |
Configuration key |
| screw terminal |
A |
3017 - H - A B C 0- D - E J = Terminals
| Terminal Ground |
Configuration key |
| without terminal |
0 |
3017 - H - A B C 0- D - E J = Color
| Color |
Configuration key |
| Black |
A |
| Grey |
B |
| White |
D |
3017 - H - A B C 0- D - E J = Style
| Style |
Configuration key |
| for cord assembly |
8 |
3017 - H - A B C 0- D - E J = Condition
| Condition |
Configuration key |
| assembled |
1 |
| disassembled |
2 |
» Variants
