6065 General Information pdf

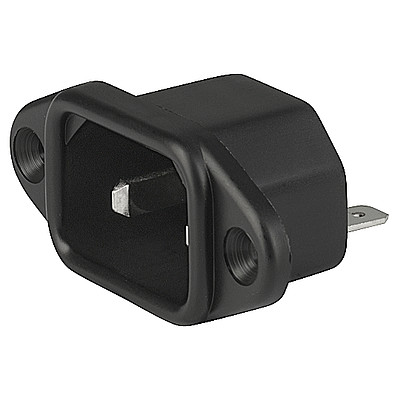

6065 GST Discontinued Products: IEC Appliance Inlet C18, Screw-on Mounting, Front Side, Solder or Quick-connect, PCB or Screw Terminal
C18
Connector Logo
70° C
Environment_Safety RoHS   Environment_Safety China-RoHS Approval marks UR   Approval marks CCSAUL   Approval marks ENEC 10

Description

Description

- Panel Mount: Screw-on mounting, Frontside
- Appliance Inlet, Pin temperature 70 °C, Protection class II
- Solder, quick-connect, screw, PCB

Approvals

- VDE Certificate Number:40011871
- UL File Number:E96454
- CSA File Number:27324

References

We recommend for new applications the type 6102-3
Last order possibility: 10.12.2010

Weblinks

pdf, General Product Information , Approvals, RoHS , CHINA-RoHS , Mating Connectors , e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, Accessories , Product News , Detailed request for product
Top

Technical Data

Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 15 A / 250 VAC; 60 Hz
Dielectric Strength > 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temp. -25 °C to 70 °C
Degree of Protection from front side IP 20 acc. to IEC 60529
Protection Class Suitable for appliances with protection class 2 acc. to IEC 61140
Terminal Solder, quick-connect, screw, PCB
Material: Housing PA6, black / grey / white, UL 94V-0
Top

Dimensions

6065_Massbild
Length of the terminal please find at the order code configuration table
Top

CAD


Order-Code Configuration

6065 - H - A B C 0- D - E

 The characters are placeholders for the correspondingly keys of selections from the key tables.

6065 -  H  - A B C 0- D - E  = Type
Type Configuration key
protection class 2 B


6065 - H -  A  B C 0- D - E  = Terminals
Terminal L Configuration key
screw terminal A
short solder terminal (L = 4.8 mm) Configuration key Logo 2
long solder terminal (L = 8.5 mm) Configuration key Logo 3
Blade terminal (2.8 x 0.8 mm) Configuration key Logo 7
Blade terminal (4.8 x 0.8 mm) Configuration key Logo 8
Blade terminal (6.3 x 0.8 mm) Configuration key Logo 9


6065 - H - A  B  C 0- D - E  = Terminals
Terminal N Configuration key
screw terminal A
short solder terminal (L = 4.8 mm) 2
long solder terminal (L = 8.5 mm) 3
Blade terminal (2.8 x 0.8 mm) 7
Blade terminal (4.8 x 0.8 mm) 8
Blade terminal (6.3 x 0.8 mm) 9


6065 - H - A B  C  0- D - E  = Terminals
Terminal Ground Configuration key
without terminal 0


6065 - H - A B C 0-  D  - E  = Color
Color Configuration key
Black A
White D


6065 - H - A B C 0- D -  E   = Style
Style Configuration key
flange with countersunk holes 1
flange with through holes 2

» Variants
Top

Variants

Tabel of Variants

Config. Code Description Order Number ABC-Code [?] MOQ [?] PU [?] e-Shop [?] SCHURTER Stock Check [?] Distributor Stock Check [?]
6065-X-2700-D-1  6065, IEC Appliance Inlet C18, 70°C, version: 2, L: short solder terminal (L = 4.8 mm), N: Blade terminal (2.8 x 0.8 mm), ground: without terminal, color: White, design: flange with countersunk holes, dimension X: , features: test 50 » » »
The listet variants should be available from stockOther versions on request www.schurter.com/contact
Top

Packaging unit

50 Pcs

Mating Components

Category / Description

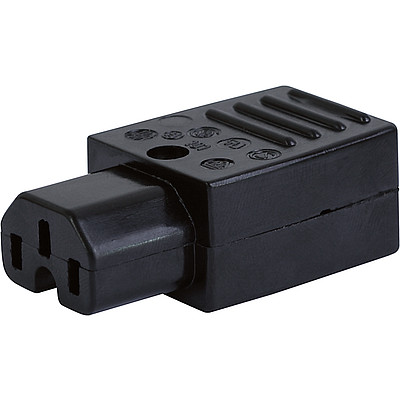

0101xaaa0a81_G_Steckdose_10A_120_Grad_SGE_GST_PG07
Connector Overview complete

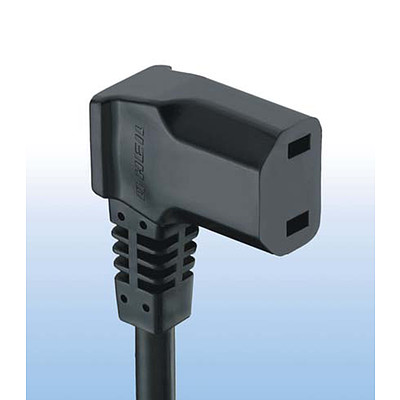

0301, SGE GST, PG07, Geräteanschlussleitung
Power Cord Overview complete

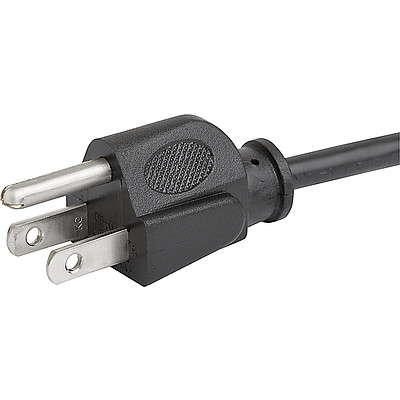

QP_02_6009_1204_SGE_GST_PG07_Netzstecker_US_Queen_Puo
Power Supply or Interconnection Cord Overview complete
Top
Description

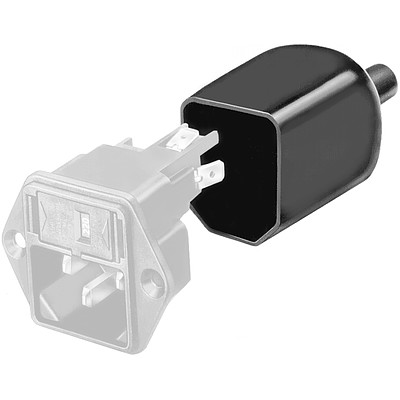

A_Schutzabdeckung_Diverse_Kombielemente
