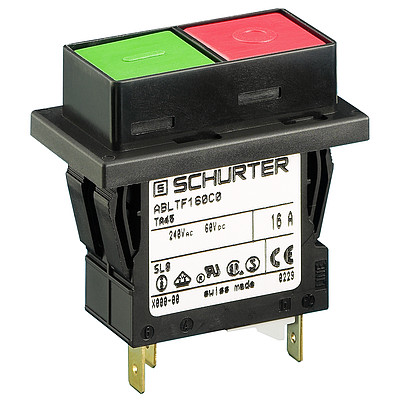

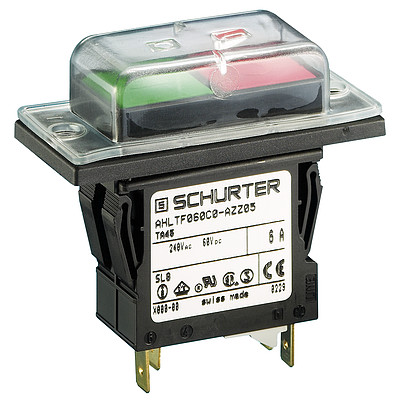

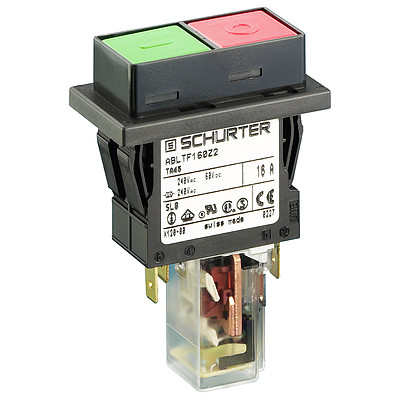

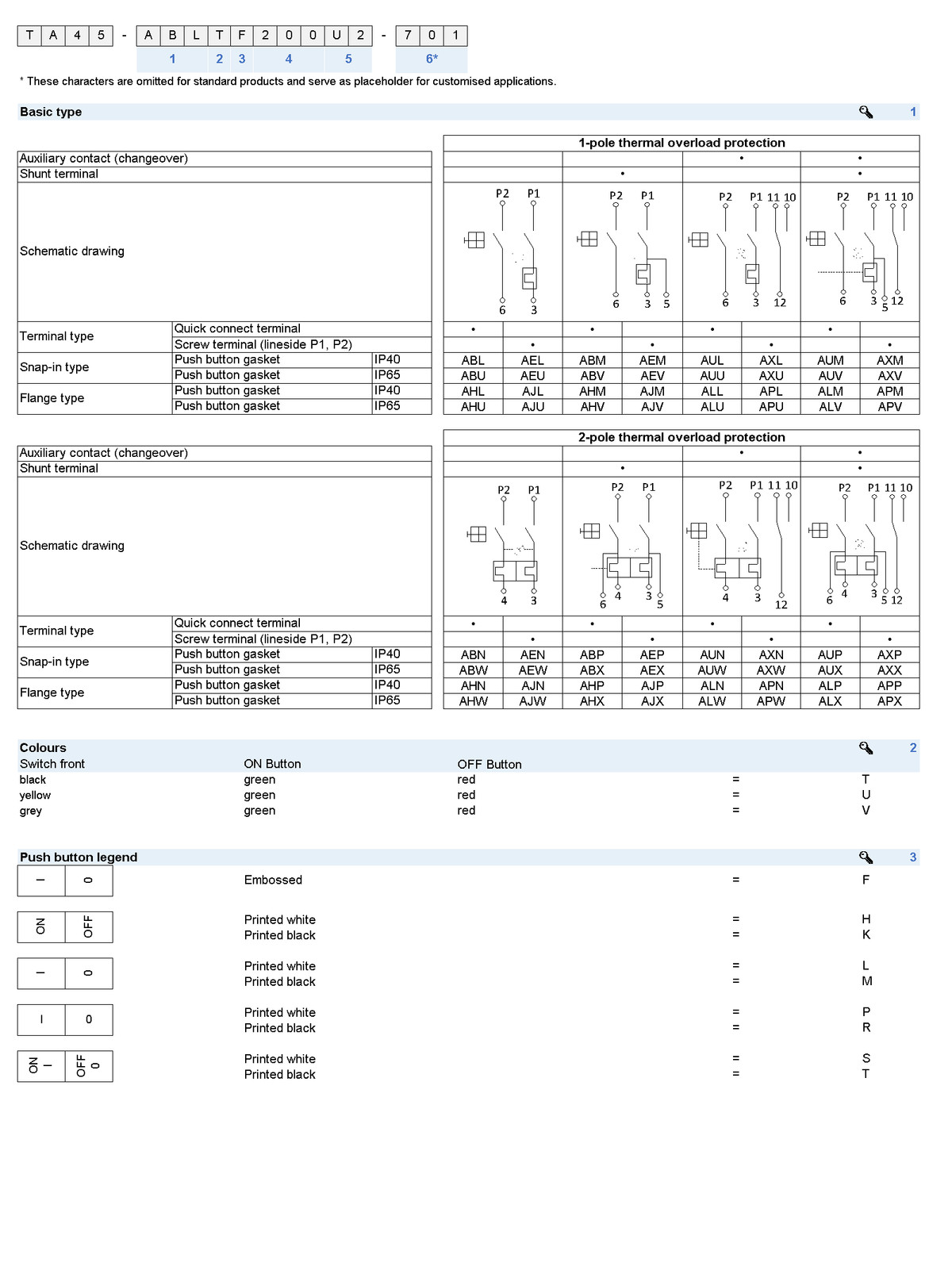

Description
- Thermal circuit breaker
- 1 or 2 pole thermal overload protection
- Positively trip-free release
- High configurability
- Snap-in or flange mounted
- Quick connect terminal 6.3 x 0.8 mm or screw clamp terminal M3.5 x 6 mm (lineside P1, P2)
Applications
- Power tools
- Industrial appliances
- Power supplies
- Equipment for construction
- Cleaning equipment
Rated Voltage AC
240 VAC
Rated Voltage DC
60 VDC
Rated current range AC
0.05 - 20 A
Conditional short circuit capacity Inc
IEC 60934: PC1, AC 240 V: 1 kA
Short circuit capacity Icn
IEC 60934:
At In < 3 A/ 240 VAC: 10xIn (max. 3 cycles)␍At In ≥ 3 A/ 240 VAC: 300A (max. 3 cycles)␍At In < 3 A/ 60 VDC: 10xIn (max. 3 cycles)␍At In ≥ 3 A/ 48 VDC: 120A (max. 3 cycles)
Degree of Protection
front side IP40 acc. to IEC 60529
Dielectric Strength
4 kV
Insulation Resistance
500 VDC > 100 MΩ
Lifetime
mechanical: 50'000 switching cycles
AC: 1 x Ir:
50'000 switching cycles
DC: 1 x Ir:
50'000 switching cycles
Overload
AC: min. 40 trips
@ 6 x Ir
DC: min. 50 trips
@ 4 x Ir
Allowable Operation Temp.
-10 °C to 55 °C
Storage Temperature
-10 °C to 55 °C
Vibration Resistance
± 0.75 mm @ 5 - 60 Hz
acc. to IEC 60068-2-6, test Fc
10 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Fc
Shock Resistance
30 G / 18 ms
acc. to IEC 60068-2-27, test Ea
Tripping Type
Thermal
Actuation Type
Pushbutton
Weight
35 - 60 g
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: TA45
Approval Logo | Certificates | Certification Body | Description |
---|---|---|---|
VDE | VDE Certificate Number: 40019880 | ||
UL | UR File Number: E71572 | ||
CCC | CCC Certificate Number: 2020970307001847 |
Product standards
Product standards that are referenced
Organization | Design | Standard | Description |
---|---|---|---|
Designed according to | IEC 60934 | Circuit-breakers for equipment (CBE) | |
Designed according to | UL 1077 | Standard for Supplementary Protectors for Use in Electrical Equipment | |
Designed according to | CSA C22.2 No. 235 | Supplementary Protectors | |
Designed according to | GB 17701 | Circuit-breaker for equipment |
Application standards
Application standards where the product can be used
Organization | Design | Standard | Description |
---|---|---|---|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
Identification | Details | Initiator | Description |
---|---|---|---|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | ||
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | ||
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | ||
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | ||
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |

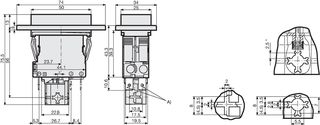

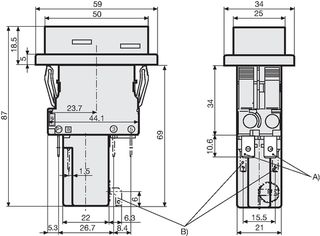

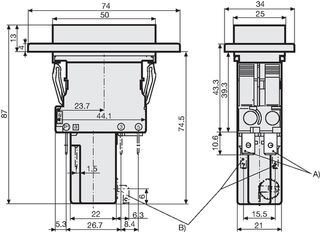

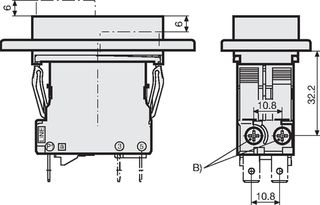

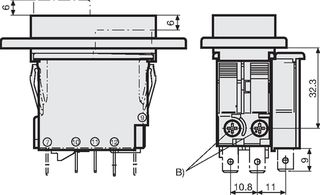

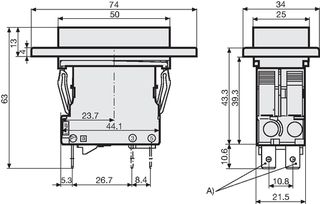

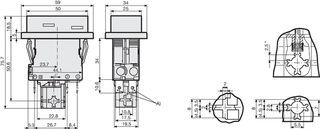

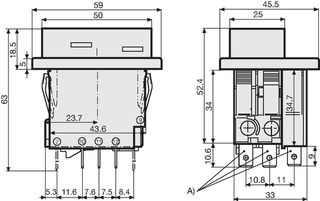

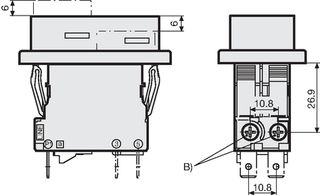

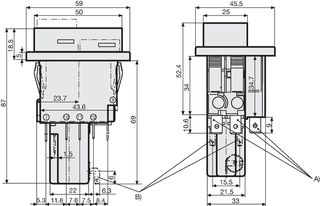

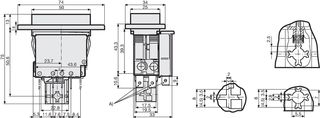

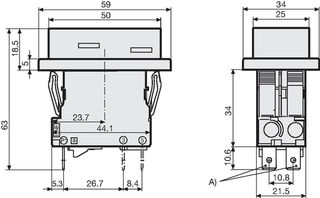

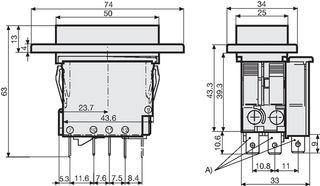

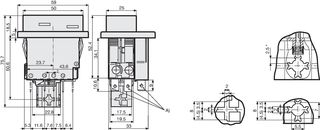

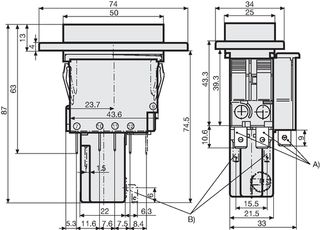

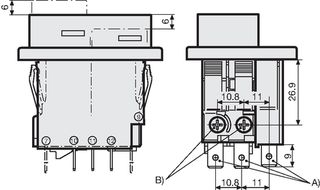

Dimension [mm]

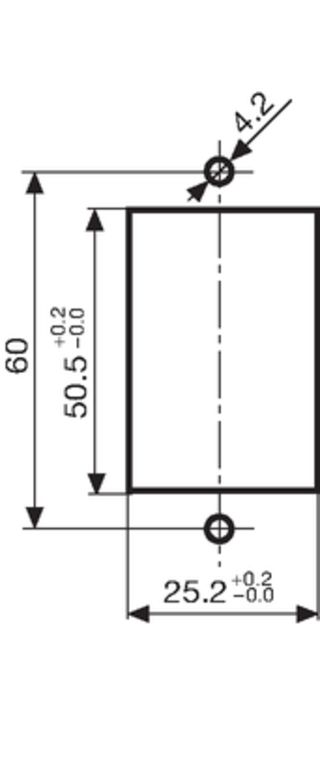

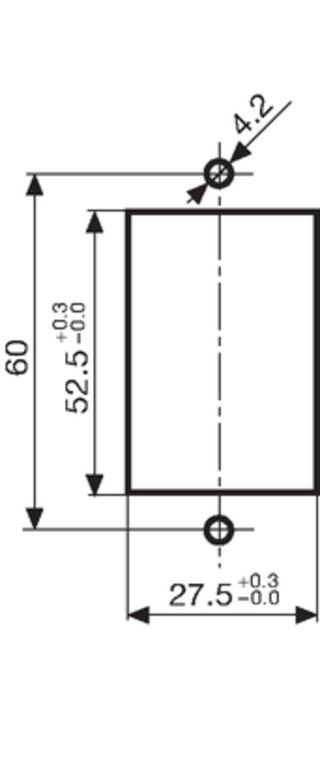

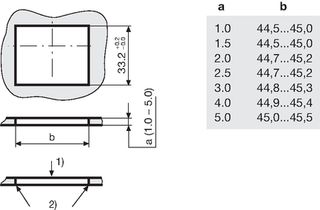

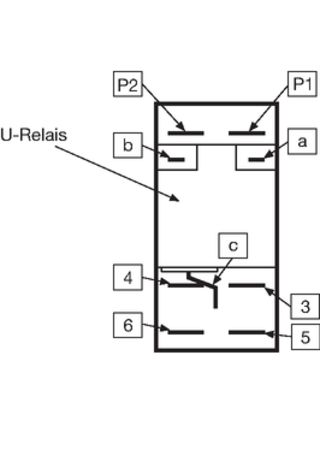

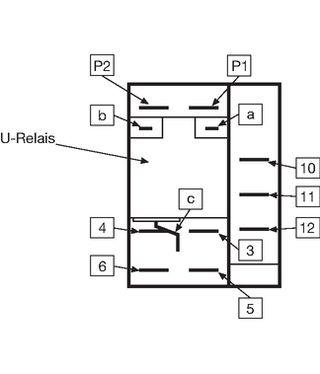

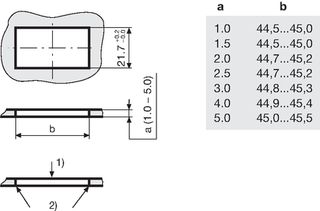

Cut-out and pin-out

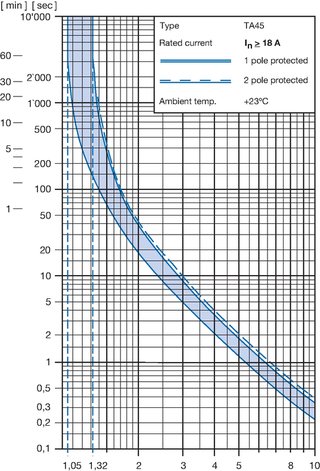

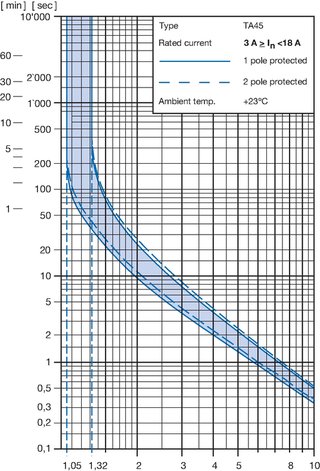

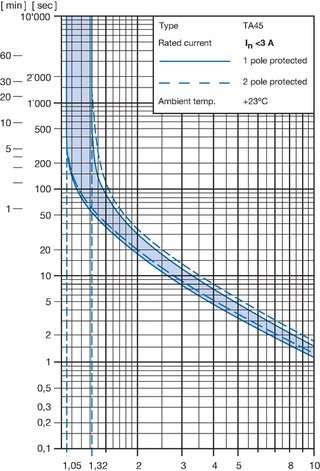

Time-Current-Curves
Effect of ambient temperature
Ambient Temperature [°C] | Correction factor |
-10 | 0.89 |
-5 | 0.91 |
0 | 0.92 |
+23 | 1.00 |
+30 | 1.03 |
+40 | 1.08 |
+55 | 1.16 |
Auxiliary contact (changeover)
Rated Voltage | 28 VDC | 60 VDC | 240 VAC |
Rated current | max. 10 A resistive load | max. 2 A resistive load | max. 2 A cos φ 0.7 |

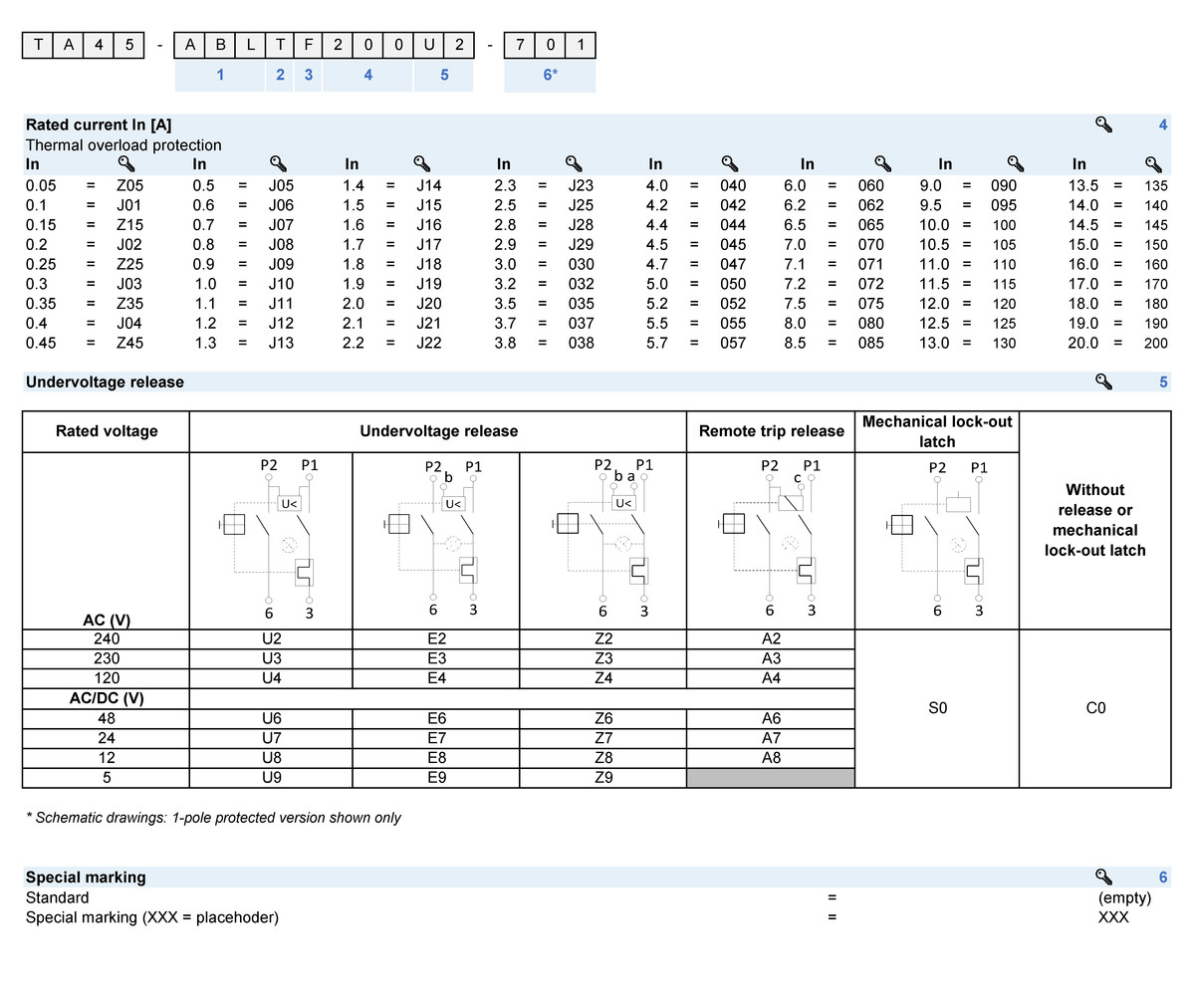

Undervoltage release
Max. operating voltage | 1.1 Ue | |||||
Rated operating voltage Ue | 5 V | 12 V | 24 V | 48 V | 120 V | 240 V |
Current consumption (± 10%) | 10.5 mA | 16.5 mA | 17.0 mA | 3.2 mA | 3.7 mA | 3.1 mA |
Highest reset level | 0.85 Ue | 0.85 Ue | 0.85 Ue | 0.85 Ue | 0.85 Ue | 0.85 Ue |
Lowest trip level | 0.20 Ue | 0.20 Ue | 0.20 Ue | 0.20 Ue | 0.20 Ue | 0.20 Ue |
Trip delay | 20 ms - 50 ms | 20 ms - 50 ms | 20 ms - 50 ms | 20 ms - 50 ms | 20 ms - 50 ms | 20 ms - 50 ms |
Impulse withstand voltage (1.2 / 50 µs) | ≥4 kV | ≥4 kV | ≥4 kV | ≥4 kV | ≥4 kV | ≥4 kV |
Remote trip
Permissible impuls duration of the make contact (no) | Between terminal C and P1 | unlimited |
Electrical load of the make contact (no) | Current max. 12 mA / power max. 1.1 W |
