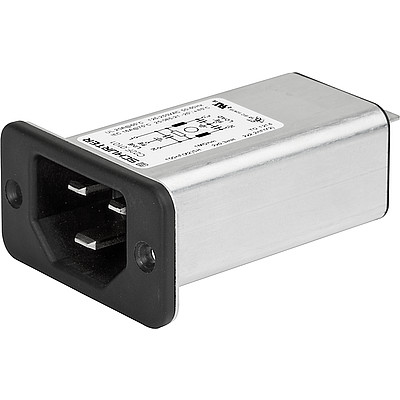

C22F C22F - IEC high temperature appliance connector C22 with filter for high temparatures en IM0012238

Series: C22F

IEC Appliance Inlet C22 for hot Conditions, with Filter for high Temperatures, front side Mounting

Free Sample Request

14 Variants


Connectors (Inlets/Outlets)

C22
Connector Logo
155° C

Description

  • Panel mount: Screw-on from front side
  • 2 Functions: Appliance Inlet Protection class I, Line filter in standard and medical version
  • Solder / quick connect / wires (stranded)

Unique Selling Proposition

  • For higher temperatures
  • Attractive flat front design
  • Highly resistant since fully potted
  • Various filter variants

Characteristics

  • Compact design with optimal shielding
    Suitable for high ambient temperatures up to 75°C
  • Version with class X1 and X2 (standard version) capacitors
  • Universal line filter for standard applications
  • Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)
    For applications according IEC/UL 62368-1 we recommend variants with bleed resistor

Other versions on request

  • flexible wire with various lenghts

Ratings IEC

Ratings IEC


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

16 A @ Ta 75 °C / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

20 A @ Ta 65 °C / 250 VAC; 60 Hz

Leakage Current

Leakage Current


The leakage current is an electric current flowing in an undesirable current path. In EMC filters this is done by the applied Y-capacitors, which are used for noise suppression. Information on the amount and classification of leakage currents are explained in detail and are listed in the data sheets.
Leakage Current

standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)

Dielectric Strength

Dielectric Strength


Information abou the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 1.7 kVDC between L-N (Cy2)
> 2.7 kVDC between L/N-PE (Cy2)
Test voltage (2 sec)

Impulse Withstand Voltage

Impulse Withstand Voltage


Information about the maximum permissible surge voltage. Thus, the operating limit with high energy pulses, such as Lightning strikes, short circuits or switching operations tested and classified.
Impulse Withstand Voltage

> 2.5 kV between L-N (CX2)
> 4 kV between L-N (CX1)
> 5 kV between L/N-PE (Cy2)
voltage (1.2/50 μs)

Allowable Operation Temperature

-25 °C to 100 °C

Climatic Category

Climatic Category


Disposition of components in categories for the assessment of mechanical and electrical properties.
Climatic Category

25/100/21 acc. to IEC 60068-1

IP-Protection

IP-Protection


The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects.
Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection Class

Protection Class


Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals


Terminals according IEC Standard.

Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Solder / quick connect / wires (stranded)

Panel Thickness S

Panel Thickness S



See details in drawing
Snapper

Screw: max 8 mm
Mounting screw torque max 0.5 Nm

Material

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Appliance inlet/-outlet


Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42

Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C22 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for hot conditions) pin-temperature 155 °C, 16 A, Protection Class I

Line Filter

Filter Type


Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medical: < 0.1 mA

Standard and Medical Version, IEC 60939, UL 1283, CSA C22.2 no. 8
Technical Details

MTBF

MTBF


The term MTBF is the English acronym Mean Time Between Failure and describes reliability of a component. The operating time of a system can be calculated based on thementioned value of the component. - The higher this value, the more reliable the component.
MTBF

> 1'400'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: C22F

Approval Logo Certificates Certification Body Description
Approval marks ENEC 10 VDE Certificate Number: 104884
Approval marks cURus UL UR File Number: E72928


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Partners IEC_Certification_Body Designed according to IEC 60939 Passive filters for suppressing electromagnetic interference
Partners IEC_Certification_Body Designed according to IEC 61058-1 Switches for appliances. Part 1. General requirements
Partners UL_Certification_Body Designed according to UL 498 Standard for Attachment Plugs and Receptacles
Partners UL_Certification_Body Designed according to UL 1283 Electromagnetic interference filters
Partners CSA_Certification_Body Designed according to CSA C22.2 no. 42 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Partners CSA_Certification_Body Designed according to CSA C22.2 no. 8 Electromagnetic interference (EMI) filters


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Designed for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Partners IEC_Certification_Body Designed for applications acc. IEC 60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Environment_Safety Medical.jpg SCHURTER AG Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

020060160000001653
LOADING...

Dimension [mm]

Screw-on mounting with quick connect terminals

Screw-on mounting with wire leads


Diagrams

Standard version

1) Line
2) Load
Medical Version (M5)

1) Line
2) Load

Technical Data of Filter-Components

Rated Current [A] Filter-Type Inductances L [mH] Capacitance CX [nF] Capacitance CY [nF] R [MΩ]
16 Standard version 2 x 0.6 100 2.2 1
16 Standard version 2 x 0.6 330 2.2 1
20 Standard version 2 x 0.3 100 2.2 1
20 Standard version 2 x 0.3 330 2.2 1
16 Medical Version (M5) 2 x 0.6 100 - 1
20 Medical Version (M5) 2 x 0.3 100 - 1
20 Medical Version (M5) 2 x 0.3 330 - 1
16 Medical Version (M80) 2 x 0.6 100 0.47 1
20 Medical Version (M80) 2 x 0.3 100 0.47 1

Attenuation Loss

16 A

20 A

16 A

20 A

16 A

20 A


Short Table of Variants C22F Open complete table C22F

Rated Current IEC

Rated Current IEC


Normally, the maximum rated current is given in accordance with the admission test of the respective inspection. Accordingly, the international test requirements apply primarily according to the IEC standard. Alternatively, the rated current details are briefly UL also specified by the test requirements of the American testing by Underwriters Laboratories.

  In the meantime it has been shown that the nominal current range of a product is of interest, so we will show newly the minimum value. This corresponds, if present, the smallest approved rating of the product. Otherwise, a blank value or also the value 0 is used.

It was also necessary to distinguish between the rated currents for alternating current (AC) and direct current (DC), since different products may be used in both applications.

Rated Current UL

Rated Current UL


Normally, the maximum rated current is given in accordance with the admission test of the respective inspection. Accordingly, the international test requirements apply primarily according to the IEC standard. Alternatively, the rated current details are briefly UL also specified by the test requirements of the American testing by Underwriters Laboratories.

  In the meantime it has been shown that the nominal current range of a product is of interest, so we will show newly the minimum value. This corresponds, if present, the smallest approved rating of the product. Otherwise, a blank value or also the value 0 is used.

It was also necessary to distinguish between the rated currents for alternating current (AC) and direct current (DC), since different products may be used in both applications.

Filter-Type

Filter Type


Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medical: < 0.1 mA

Order Number

V-Lock


V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
Details of the V-Lock system can be found in the general product information.
General Product Information V-Lock

A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...
[A]   [A]

16 16 Standard version C22F.1107 ...
16 20 Standard version C22F.0101 ...
16 16 Standard version C22F.1101 ...
16 20 Standard version C22F.0103 ...
16 20 Standard version C22F.0007 ...
16 20 Standard version C22F.0001 ...
16 16 Standard version C22F.1001 ...
16 20 Standard version C22F.0003 ...
16 20 Medical Version (M5) C22F.0102 ...
16 16 Medical Version (M5) C22F.1102 ...
16 20 Medical Version (M5) C22F.0008 ...
16 20 Medical Version (M5) C22F.0002 ...
16 16 Medical Version (M5) C22F.1002 ...
16 16 Medical Version (M80) C22F.1005 ...

Packaging unit 20 Pcs
