CFO THT nickel-plated en IM0017969
THT nickel-plated
CFO  M3 screw nickel-plated
M3 screw nickel-plated
CFO  THT tin-plated
THT tin-plated
CFO  M3 screw tin-plated
M3 screw tin-plated
CFO THT nickel-plated en IM0017969
CFO  M3 screw nickel-plated
CFO  THT tin-plated
CFO  M3 screw tin-plated

Series: CFO

Heavy Duty Fuse Clip, 10.3x38 mm, 1000 VDC/ 600 VAC - 15 A (UL)

New_Logo Free Sample Request

8 Variants


  • Solder, screw or rivet mounting
  • Suitable gPV fuse link ASO 10.3x38
  • Suitable E-Mobility fuse link AEO 10.3x38

Unique Selling Proposition

  • Designed for high rated voltages
  • Excellent price-performance ratio
  • Low mounting height


  • Photovoltaic applications
  • Industrial Equipment
  • Entertainment Equipment
  • Direct current (DC) High voltage applications
  • Chargers
  • Power distribution


10.3 x 38 / 10.3 x 85 mm




Solder THT / screw / rivet

Rated Voltage

1000 VDC/ 600 VAC

Rated current

15 A (UL)

Admissible Ambient Air Temp.

-40 °C to 125 °C

Material: Terminals

Brass, nickel-plated / tin-plated 1)

Storage Conditions

0 °C to 50 °C, max. 70% r.h.

Soldering Methods

Soldering Profile


245 °C / 3 sec acc. to IEC 60068-2-20, Test Ta, method 1

Resistance to Soldering Heat

260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 1A

Contact Resistance

≤ 20 mΩ at 100 mA

1) Details see table of variants

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: CFO

Approval Logo Certificates Certification Body Description
Approval marks cURus UL UR File Number: E312155

Product standards

Product standards that are referenced

Organization Design Standard Description
Partners UL_Certification_Body Designed according to UL 4248-1 Industrial Control Equipment
Partners CSA_Certification_Body Designed according to CSA C22.2 no. 4248.1 Industrial Control Equipment

Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.


Dimension [mm]

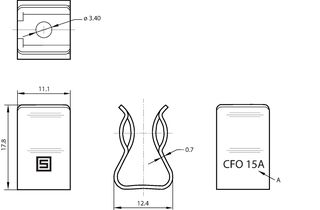

Screw or rivet version M3

A= Current Rating

Solder THT version

A= Current Rating

Drilling diagram M3

Holes specification (for 10x38 mm fuse)

Drilling diagram THT

Holes specification (for 10x38 mm fuse)

Short Table of Variants CFO Open complete table CFO

Weight Terminal Packaging Order Number

Variant Details

The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular

Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample

Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check

The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

3 g Solder / THT Bulk 275 x 205 x 21.5 mm (2000 pcs.) 8040.2012 ...
3 g Solder / THT Bulk 165 x 128 x 85 mm (200 pcs.) 8040.2012.01  A  ...
3 g Solder / THT Bulk 275 x 205 x 21.5 mm (2000 pcs.) 8040.2015 ...
3 g Solder / THT Bulk 165 x 128 x 85 mm (200 pcs.) 8040.2015.01 ...
3.1 g Screw / Rivet M3 Bulk 275 x 205 x 21.5 mm (2000 pcs.) 8040.2002 ...
3.1 g Screw / Rivet M3 Bulk 165 x 128 x 85 mm (200 pcs.) 8040.2002.01  A  ...
3.1 g Screw / Rivet M3 Bulk 275 x 205 x 21.5 mm (2000 pcs.) 8040.2005 ...
3.1 g Screw / Rivet M3 Bulk 165 x 128 x 85 mm (200 pcs.) 8040.2005.01 ...
