Series: DKIH-3

New_Logo Free Sample Request

Compensated High Current Choke, 3-phase

16 Variants



Approvals and Compliances

Description DKIH-3

Description

  • Current compensated choke
  • 3-phase choke
  • THT-terminals
  • Flange for mounting onto printed circuit board
  • Other versions on request:-4 wire versions-Customer specific pin outs

Unique Selling Proposition

  • Compact size and light weight
  • Open design for optimal cooling
  • Nanocrystalline or ferrite ring cores
  • Customer specific pin outs available

Standards

  • EN 60938

Approvals

  • Approval Reference Type: DKIH

Applications

  • Frequency converter
  • Charge stations
  • UPS-systems
  • Switching power supplies
Date Category Subcategory Title Download
12/10/2015 Products
PCS
DKIH-3 3352-XXXX
12/10/2015 Products
PCS
DKIH-3 3358-XXXX
23/06/2016 Products
EMC
PCB Library Chokes

Rated voltage

Corresponds to the electrical voltage during normal operation.The nominal voltage is specified as the rated voltage and referenced in most cases to an IEC standard, which is referenced as a test basis for the operating parameters.

The nominal voltage is called depending on the operating condition, with AC voltage it is indicated VAC, and in the case of DC voltage as VDC.

max 600 VAC

Rated Current

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.

General information on electrical characteristics colors of fuses

Ratings IEC, UL/CSA
General information on the rated current and the rated voltage at EMC products

Rated Voltage
Rated current
The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.

Search approval information for different families


Approvals

10 - 50 A @ Ta 40 °C

Rated inductance

0.08 - 10.8 mH, Tol. -30% +50%

Power Operating Frequency

0 - 400 Hz

Terminal Type

THT

Weight

90 - 160 g

Material: Housing

UL 94V-0

Test Voltage

3740 VDC, 2 sec, winding to winding

Climatic Category

Disposition of components in categories for the assessment of mechanical and electrical properties.

Climatic Category

40/100/21 acc. to IEC 60068-1

Allowable Operation Temp.

-40 °C to 100 °C


Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
General Product Information

Preview


Picture(s) Selection of product pictures to display a specific variant of the type

Type


Type Corresponds to a product series and includes various distinct variants. On the type of descriptive data are summarized, eg in the data sheet

Order Number


Order Number Unique part number for placing an order

Configuration key


Configuration key The configuration key of a product consists of the composite key values, which describe the different kinds of attribut distinction.

Comment

Model Description


Model Description Abbreviated description of the CAD model

IGS


IGS Also mentioned as IGES ( Initial Graphics Exchange Specification). Common program indipendent interchange format for 3D CAD data.

Step


Step Also mentioned as STEP ( Standard for the Exchange of Product Model Data). Common program indipendent interchange format for 3D CAD data standardized according ISO standard.

Parasolid


Parasolid Parasolid modeling kernel is a 3D CAD systems. It is developed by a separate business unit within the Unigraphics Solutions (UGS), now Siemens PLM Software.

DXF


DXF (Drawing Interchange Format) is a specified by the Autodesk file format for CAD data exchange, and was developed for the 2D-CAD program AutoCAD. A DXF file describes a CAD model as plain text to the ASCII standard.

DKIH-3
DKIH-3352-12D8
DKIH-3352-xxxx
DKIH-3
DKIH-3352-16D5
DKIH-3352-xxxx
DKIH-3
DKIH-3352-20D4
DKIH-3352-xxxx
DKIH-3
DKIH-3352-25D3
DKIH-3352-xxxx
DKIH-3
DKIH-3352-102J
DKIH-3352-xxxx
DKIH-3
DKIH-3358-32D3
DKIH-3358-xxxx
DKIH-3
DKIH-3358-40D2
DKIH-3358-xxxx
DKIH-3
DKIH-3358-50C8
DKIH-3358-xxxx

Dimension [mm]

52-12

52-16

52-20

52-25

52-10

58-32

58-40

58-50


Diagrams

3 phases

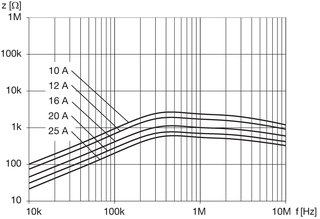

Impedance curves


Short Table of Variants DKIH-3


In [A] Ln [mH] Rcu [mΩ] Order Number

The link on the respective order number refers to a separat tab with specific detailed information .

This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.

This approach offers to use generic alias link to the product details:

www.schurter.xx/art/ [Order Number]

where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

Most popular products have the following customer benefits:

- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle

Contact us for availability on other product variants, lead-times vary:

Contact-Form
Availability for all products can be searched real-time. Enter part number and required quantity:

Stock Check SCHURTER

Free Sample

Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.

The
Distributor Stock Check

Stock Check Distributor

...

10 1.1 7.5 DKIH-3352-102J  A  ...
10 10.8 7.5 DKIH-3352-1011-NK  A  ...
12 0.75 4.5 DKIH-3352-12D8  A  ...
12 7.2 4.5 DKIH-3352-120Q-NK  A  ...
16 0.46 3 DKIH-3352-16D5  A  ...
16 4.4 3 DKIH-3352-162N-NK  A  ...
20 0.35 1.5 DKIH-3352-20D4  A  ...
20 3.1 1.5 DKIH-3352-204L-NK  A  ...
25 0.24 1.2 DKIH-3352-25D3  A  ...
25 2.2 1.2 DKIH-3352-254K-NK  A  ...
32 0.33 1.1 DKIH-3358-32D3  A  ...
32 2.6 1.1 DKIH-3358-326K-NK  A  ...
40 0.15 0.6 DKIH-3358-40D2  A  ...
40 1.1 0.6 DKIH-3358-401J-NK  A  ...
50 0.08 0.4 DKIH-3358-50C8  A  ...
50 0.7 0.4 DKIH-3358-50D7-NK  A  ...

Most Popular.
