Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
Description
- Rated currents to 10 A at 48 VDC

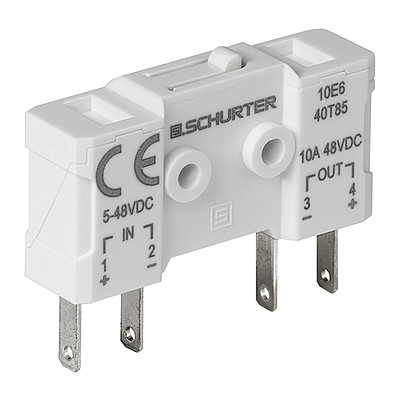

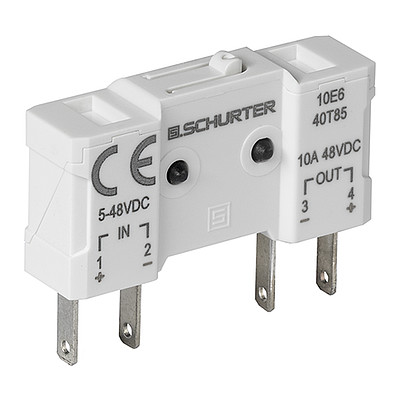

- 2 designs with attachment points for different applications and additional actuator MSM II

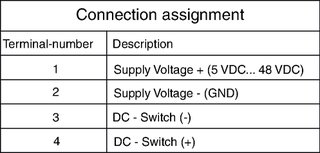

- Equipped with quick connect terminals to permit fast connection
Unique Selling Proposition

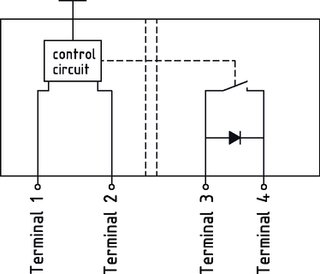

- No arcing due to electronic circuit
- Extremely long lifespan
Electrical Data
Supply Voltage
5 VDC - 48 VDC

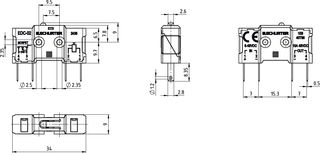

Mechanical Data
Actuating Force
3.0 N
Actuating Travel
1.0 mm
Lifetime
1 million actuations
Climatical Data
Operating Temperature
-40 to 85 °C
Storage Temperature
-40 to 85 °C
Protection Class
IP40
Material
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: MSMII
| Approval Logo | Certificates | Certification Body | Description |
|---|
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
Short Table of Variants EDC Open complete table EDC
| Designation | Rated current | Illumination |
Order Number
|
Symbols, Footprints, 3D-Models | Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |
|---|---|---|---|---|---|---|---|---|
| EDC-01 | 10 A | non-illuminated | 3-153-892 |
|
... | |||
| EDC-02 | 10 A | non-illuminated | 3-153-876 |
|
... |
| Packaging unit |
|
