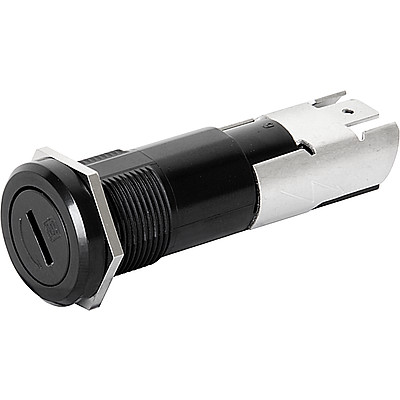

FUL  Socket with Slotted Cap
Socket with Slotted Cap

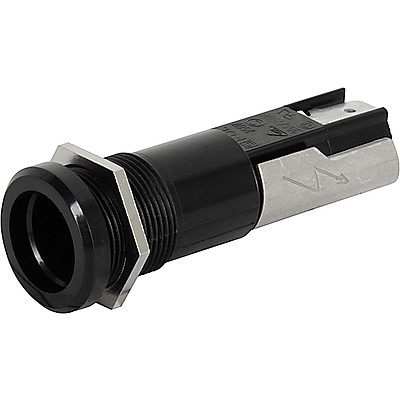

FUL  Socket without mounted Cap Caps must be ordered separately (see accessories)
Socket without mounted Cap
Caps must be ordered separately (see accessories)
FUL  Socket with Slotted Cap
FUL  Socket without mounted Cap Caps must be ordered separately (see accessories)

Series: FUL

FUL, Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slotted Cap

Free Sample Request

4 Variants


Description

  • Fuseholder for 600 VAC applications
  • Fuseholder with high rated power acceptance
  • Screw type fuse carrier

Unique Selling Proposition

  • Fuseholder for high performance applications
  • High rated power acceptance

Applications

  • Equipment with three-phase supply (400 VAC)
  • Applications with rated current up to 16 A (VDE)

Shock-Safe Category

PC2

Fuse-Link

5 x 20 / 6.3 x 32 mm

Mounting

Panel mount, Front Side

Attachment

Fixing Nut

Terminal

Solder / Quick-Connect 6.3 x 0.8 mm

Rated Voltage

250/500 VAC (VDE), 600 V (UL/CSA)

Rated current

16 A (VDE), 30 A (UL/CSA)

Rated Power Acceptance IEC

4 W / 16 A @ Ta 23 °C
Admissible power acceptance at higher ambient temperature see derating curves

Degree of Protection

IP40 / IP67

Protection Class

Suitable for appliances with protection class I or II acc. to IEC 61140

Admissible Ambient Air Temp.

-40 °C to 85 °C

Climatic Category

40/085/21 acc. to IEC 60068-1

Material: Socket

Thermoset, black, UL 94V-0

Material: Terminals

Tin-Plated Copper

Unit Weight

18 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

S_SCHURTER_Logo, Type, Rated Voltage, Power Rating, Rated current, Certification marks

Soldering Methods

Iron
Soldering Profile

Solderability

350 °C / 3 sec acc. to IEC 60068-2-20, Test Ta, method 2

Resistance to Soldering Heat

350 °C / 10 sec acc. to IEC 60068-2-20

Contact Resistance

≤ 10 mΩ at 100 mA acc. to IEC 60127-6

Dielectric Strength

> 3 kV between live parts
(50 Hz: 1 min)

Impulse Withstand Voltage

> 4 kV between live parts

Insulation Resistance

≥ 10 MΩ between live parts
(500 VDC: 1 min)

Overvoltage Category

III acc. to IEC 60664-1

Pollution Degree

2 (500 VAC), 3 (250 VAC) acc. to IEC 60664-1

Resistance to Vibration

acc. to IEC 60068-2-6, test Fc

Admissible Torque on Fixing Nut

max 1.2 Nm

Panel Thickness

max 10 mm

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: FUL

Approval Logo Certificates Certification Body Description
Approval marks VDE_Fertigungsüberwachung VDE VDE Certificate Number: 40045336
Approval marks cURus UL UR File Number: E39328


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners IEC_Certification_Body Designed according to IEC 60127-6 Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Partners UL_Certification_Body Designed according to UL 4248-1 Industrial Control Equipment
Partners CSA_Certification_Body Designed according to CSA C22.2 no. 4248.1 Industrial Control Equipment


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Partners IEC_Certification_Body Suitable for applications acc. IEC 60335-1 Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Environment_Safety Glow_Wire_Proof SCHURTER AG Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.

010020030000000528
LOADING...

Dimension [mm]

Variant 0031.2307 and 0031.2308
Mounting holes
Variant 0031.2303 and 0031.2304

Derating Curves

Admissible Power Acceptance in Watt
Ambient Air Temperature Ta °C


Short Table of Variants FUL Open complete table FUL

Holder Cap Fuse-Link Order Number A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

- 5 x 20 / 6.3 x 32 mm 0031.2307 ...
- 5 x 20 / 6.3 x 32 mm 0031.2308  A  ...
- 5 x 20 / 6.3 x 32 mm 0031.2303  A  ...
- 5 x 20 / 6.3 x 32 mm 0031.2304  A  ...

Most Popular.

Packaging Unit Bulk (25 pcs.)

010020030000000528
LOADING...
Required Accessory (2)

[Swipe to the left and right for more options]

Caps to FUL, FUP, FUA

Caps to Holder FUL, FUP, FUA

Caps to FUL (IP 67)

Caps to Holder FUL (IP 67)

Accessories (3)

[Swipe to the left and right for more options]

Nut for fuse holder

Mounting accessories for fuse holder

Cover FIZ, FUL

Insulation Cover for FIZ, FUL,FUS

Designation plates for fuse holders

Marking plate for Fuseholders
