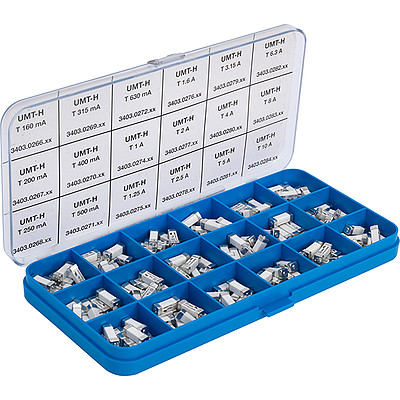

Series: Fuse Kit UMT-H

Fuse Kit Surface Mount Fuse UMT-H

Unique Selling Proposition

  • Suitable for pulse-shaped continuous currents

Application Note Primary Protection in Equipmentwith further information on increased   Pulse Strength and their test conditions according to international standards see   Impulse Withstand Voltage


Type Rated current Rated Voltage [VAC] Rated Voltage [VDC] Amount Part Number
UMT-H 160 mA 277 250 10 pieces 3403.0266.11
UMT-H 200 mA 277 250 10 pieces 3403.0267.11
UMT-H 250 mA 277 250 10 pieces 3403.0268.11
UMT-H 315 mA 277 250 10 pieces 3403.0269.11
UMT-H 400 mA 277 250 10 pieces 3403.0270.11
UMT-H 500 mA 277 250 10 pieces 3403.0271.11
UMT-H 630 mA 277 250 10 pieces 3403.0272.11
UMT-H 1 A 277 250 10 pieces 3403.0274.11
UMT-H 1.25 A 277 250 10 pieces 3403.0275.11
UMT-H 1.6 A 277 250 10 pieces 3403.0276.11
UMT-H 2 A 277 250 10 pieces 3403.0277.11
UMT-H 2.5 A 277 125 10 pieces 3403.0278.11
UMT-H 3.15 A 277 125 10 pieces 3403.0279.11
UMT-H 4 A 277 125 10 pieces 3403.0280.11
UMT-H 5 A 277 125 10 pieces 3403.0281.11
UMT-H 6.3 A 277 125 10 pieces 3403.0282.11
UMT-H 8 A 250 125 10 pieces 3403.0283.11
UMT-H 10 A 250 125 10 pieces 3403.0284.11

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
