productphoto

Series: RTS

New_Logo Free Sample Request

SMD thermal fuse for high currents

2 Variants


Description RTS

Description

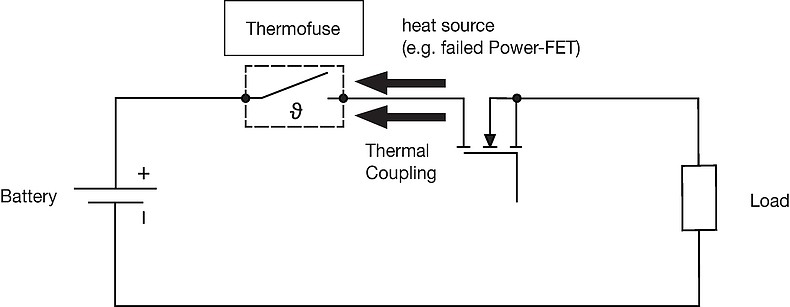

  • Patented surface mount thermal fuse to protect against thermal runaway of power semiconductors such as: MOSFET's, IC's, IGBT's, Triac's, SCR's, etc.
  • Provides physical protection in cases where all software-based security measures have failed

Unique Selling Proposition

  • Separates rated voltages up to 60VDC
  • Reflow compatible through mechanical activation procedure
  • Galvanic separation happens inside the RTS housing
  • Smallest footprint with just two contacts

Applications

  • Wherever power transistors are used
  • Automotive: Cooling fan applications, ABS power steering, PTC heaters, HVAC, Glow plugs, Diesel fuel heaters
  • Industrial: Battery Protection, Power supplies, Lighting ballasts, H-Bridge circuits, Motor drivers

Other versions on request

  • Thermal fuse with integrated shunt
  • Thermal fuse with integrated fuse
Date Category Subcategory Language Title Download
18/05/2018
Products White Paper English White Paper AEC-Q200
18/05/2018
Products Application Note English Application Note Thermal Runaway
29/01/2018
Products PCS English RTS PCS

Rated Voltage

60 VDC

Breaking Capacity

400 A

Operating current

up to 100 A

Mounting

PCB,SMT

Allowable Operation Temperature

-40 °C to +150 °C

Tripping temperature

210 °C

Material: Housing

Plastics

Material: Terminals

Tin-Plated Copper Alloy

Unit Weight

0.75 g

Storage Conditions

0 °C to 40 °C, max. 70% r.h.

Product Marking

Variant Code, Lot no.

Maximum reflow temperature

260 °C (peak)

Soldering Methods

Reflow
Soldering Profile

Solderability

245 °C / 3 sec acc. to IEC 60068-2-58

Resistance to Soldering Heat

260 °C / 30 sec acc. to IPC/JEDEC J-STD-020D, Level 1

Activation force

Fa = max. 50 N

Activation distance

Sa = 1.1 ± 0.1 mm

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals

SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 134485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Designed for applications acc. IEC/UL 60950 IEC 60950-1 includes the basic requirements for the safety of information technologyequipment.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG EU Directive RoHS 2011/65/EU
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
tableimage AECQ200 SCHURTER AG AEC-Q200 is a test standard for passive components used in automotive applications. SCHURTER tests components according to the customer's agreement and is certified according to IATF 16949.

Preview


Picture(s) Selection of product pictures to display a specific variant of the type

Type


Type Corresponds to a product series and includes various distinct variants. On the type of descriptive data are summarized, eg in the data sheet

Order Number


Order Number Unique part number for placing an order

Configuration key


Configuration key The configuration key of a product consists of the composite key values, which describe the different kinds of attribut distinction.

Comment

Model Description


Model Description Abbreviated description of the CAD model

IGS


IGS Also mentioned as IGES ( Initial Graphics Exchange Specification). Common program indipendent interchange format for 3D CAD data.

Step


Step Also mentioned as STEP ( Standard for the Exchange of Product Model Data). Common program indipendent interchange format for 3D CAD data standardized according ISO standard.

Parasolid


Parasolid Parasolid modeling kernel is a 3D CAD systems. It is developed by a separate business unit within the Unigraphics Solutions (UGS), now Siemens PLM Software.

DXF


DXF (Drawing Interchange Format) is a specified by the Autodesk file format for CAD data exchange, and was developed for the 2D-CAD program AutoCAD. A DXF file describes a CAD model as plain text to the ASCII standard.

RTS
3-104-513 3-104-514
RTS-AC100

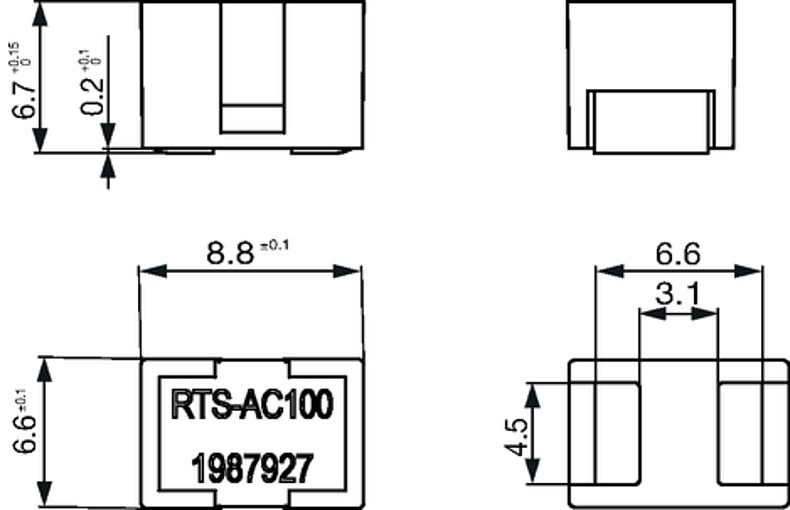

Dimension [mm]

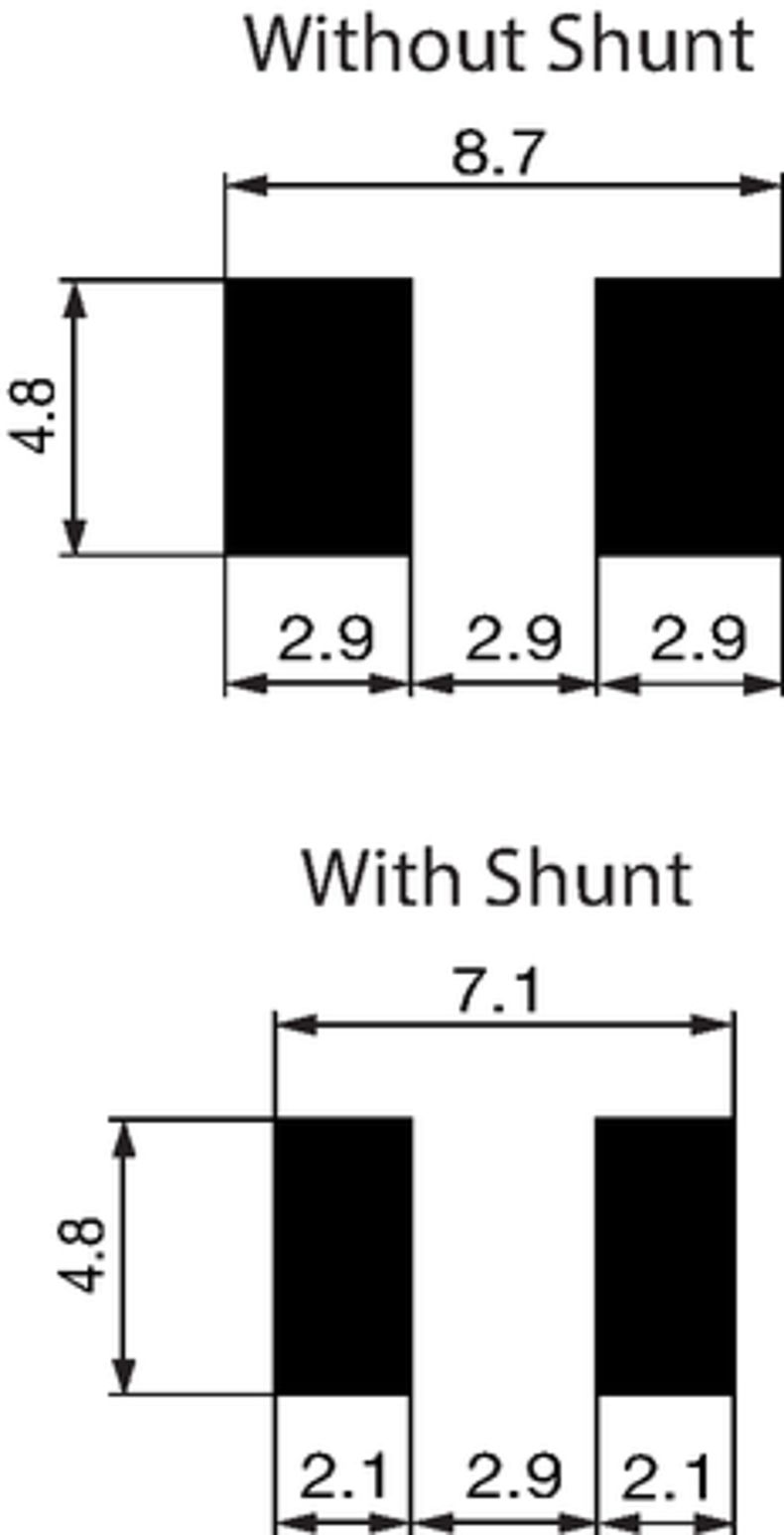

Reflow soldering pads

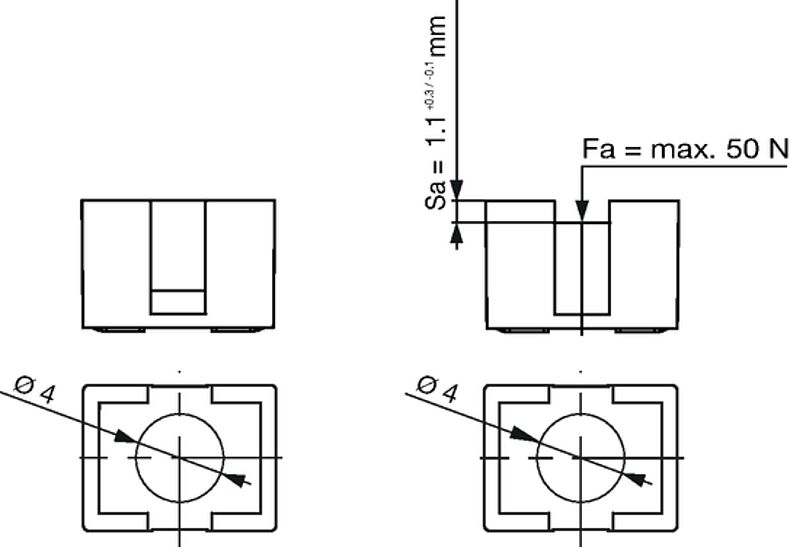

Activation status

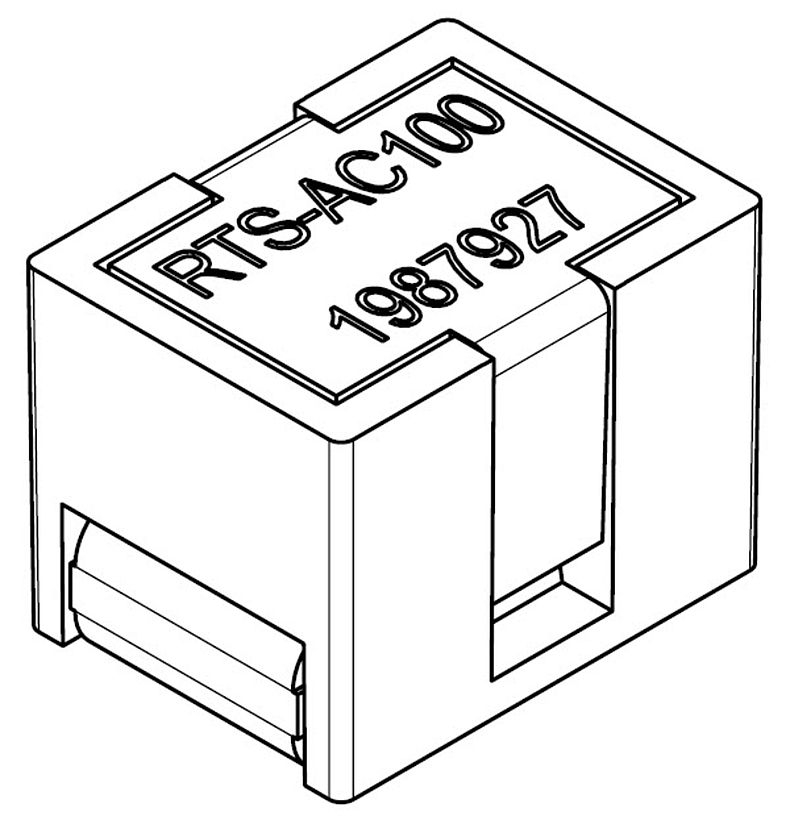

Deactivated

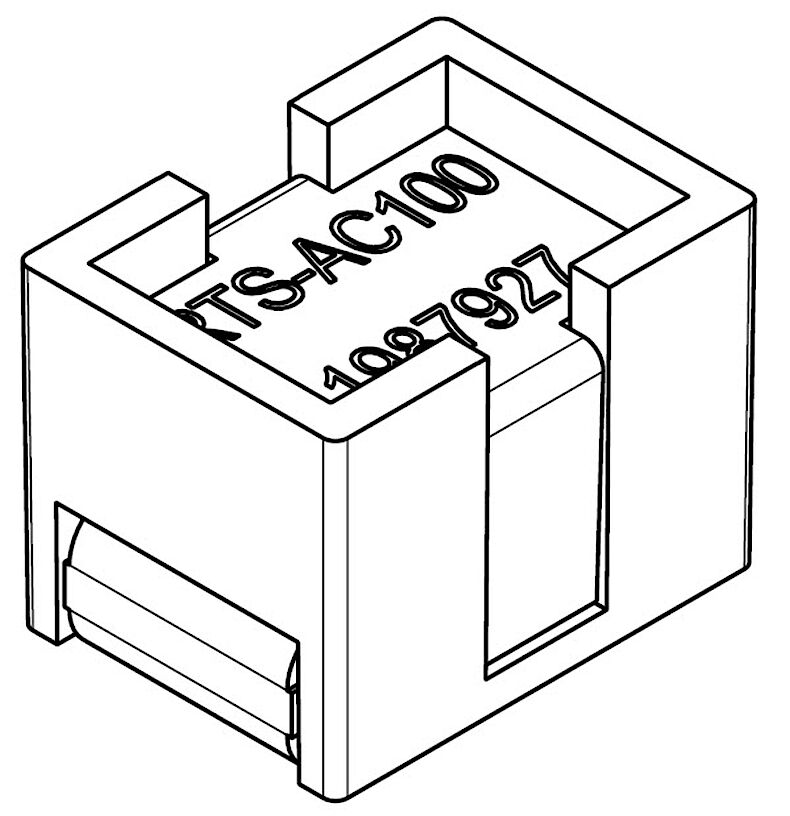

Activated: must be mechanically activated after reflow

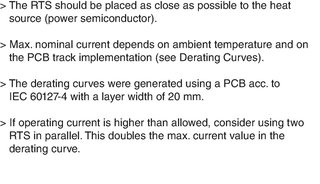

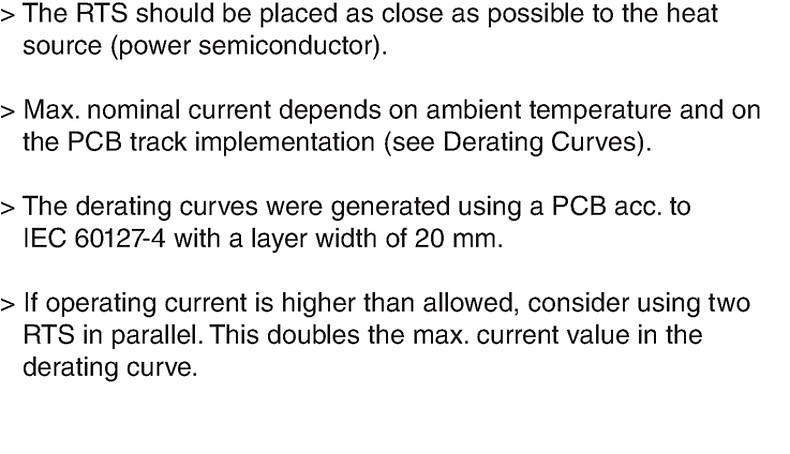

Activation specification

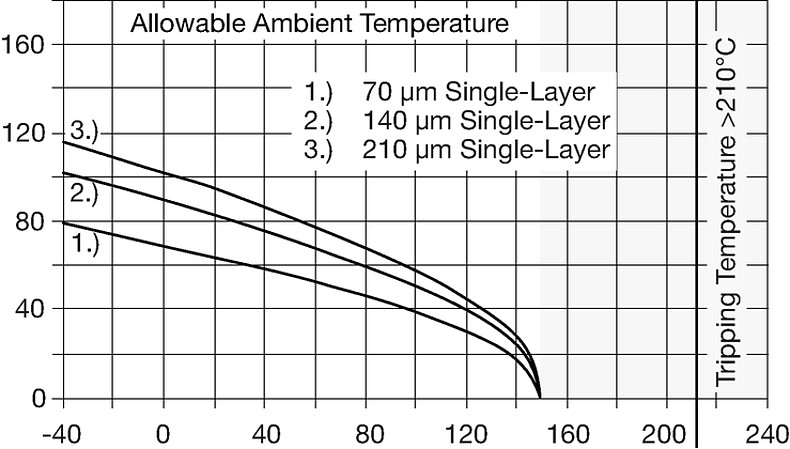

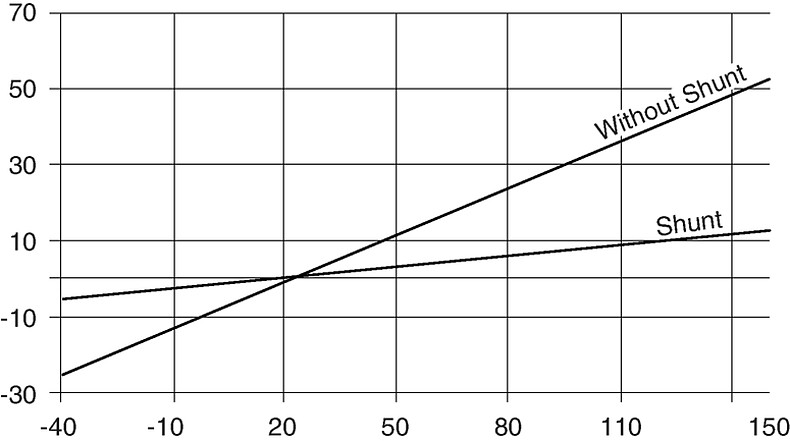

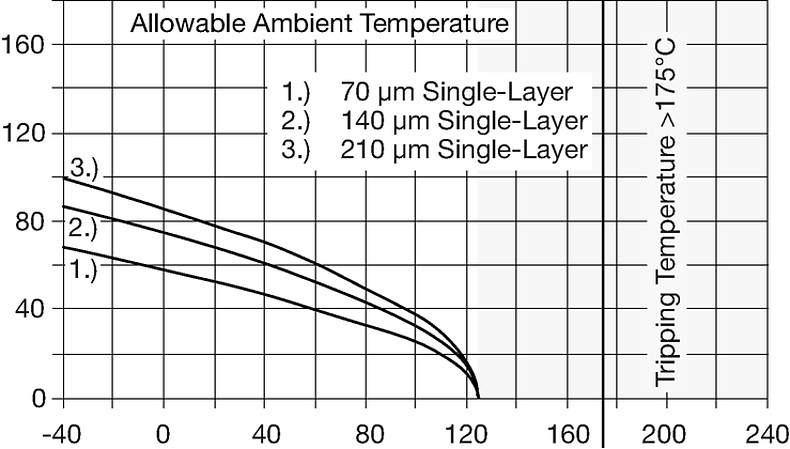

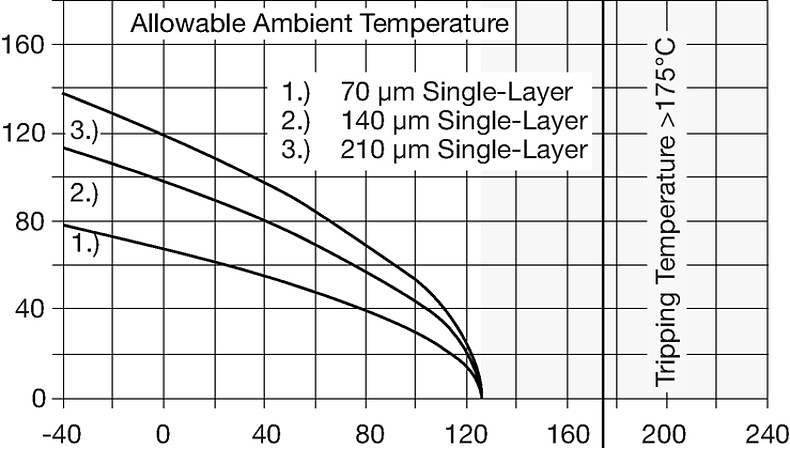

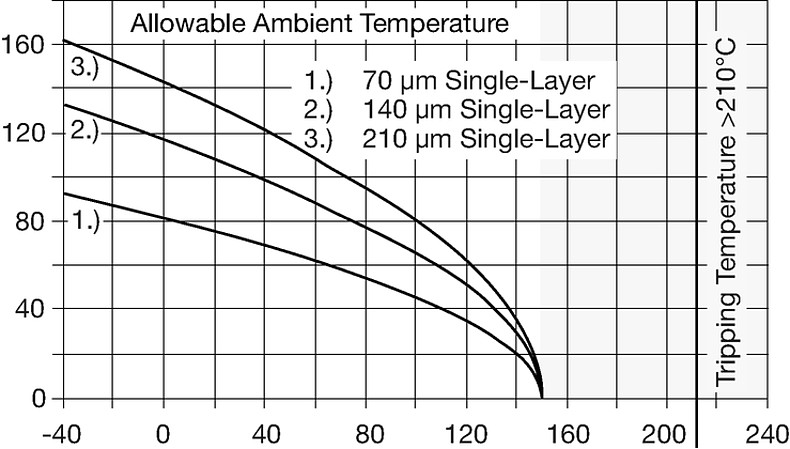

Diagrams


Short Table of Variants RTS


Cold Resistance typ. (max.) Packaging unit [PCS] Order Number

Variant Details


The link on the respective order number refers to a separat tab with specific detailed information .

This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.

This approach offers to use generic alias link to the product details:

www.schurter.xx/art/ [Order Number]

where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:

- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle

Contact us for availability on other product variants, lead-times vary:

Contact-Form
Availability for all products can be searched real-time. Enter part number and required quantity:

Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.

The
Distributor Stock Check

Stock Check Distributor

...

95 μΩ (120 μΩ) 100 3-104-513 ...
95 μΩ (120 μΩ) 750 3-104-514 ...

Nominal Current: < 100 A

Nominal Current depends on the implementation on the board (Cu area/ thickness)

Breaking Capacity: 400 A @ 24 VDC (> 18 μH) / 200 A @ 50 VDC (> 27 μH) / 170 A @ 60 VDC (> 32 μH)

All measurements carried out on a board based on IEC 60127-4 with 20 mm track width and 70 μm copper layer thickness
