T9-611  Circuit Breaker for Equipment thermal, Snap-in type, Fuseholder style, 1 pole

Series: T9-611

Circuit Breaker for Equipment thermal, Snap-in type, Fuseholder style, 1 pole

Free Sample Request

27 Variants


Description

  • Snap-in type from front side (0.8...2.0mm)
  • Thermal circuit breaker
  • 1 pole
  • On request available with elevaled glow-wire ratings
  • Quick connect terminals 6.3 x 0.8 mm

Unique Selling Proposition

  • Reset type
  • Cycling trip-free release
  • Compact design
  • Different mounting possibilities

Applications

  • Power supplies
  • Uninterruptible power supply
  • Power tools
  • Industrial appliances
  • HVAC
  • Household appliances

Rated Voltage AC

240 VAC

Rated Voltage DC

48/32 VDC

Rated current

3-16 A, see approbations

Conditional short circuit capacity Inc

IEC 60934: PC1, AC 240 V: 2 kA

UL / CSA: SC, AC 240 V DC 48 / 32 V: 2 kA, C1

Degree of protection front side

IP40

Endurance minimum

IEC: 200% Ir, cos φ 0.6: min. 50 switching cycles

Endurance typical

3-8 A: 150% Ir, cos φ 0.9:
2500 switching cycles

10-16 A: 150% Ir, cos φ 0.9:
6000 switching cycles

Dielectric Strength

1500 VAC

Insulation Resistance

500 VDC > 1000 MΩ

Allowable Operation Temp.

3 A: -5 °C to 60 °C

4 A: -5°C to 50 °C

5-16 A: -5 °C to 60 °C

Weight

9 - 13 g

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: T9

Approval Logo Certificates Certification Body Description
Approval marks VDE VDE VDE Certificate Number: 40038016
Approval marks cURus UL UR File Number: E71572
Approval marks ccc CCC CCC Certificate Number: 2020970307003348


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners IEC_Certification_Body Designed according to IEC 60934 Circuit-breakers for equipment (CBE)
Partners UL_Certification_Body Designed according to UL 1077 Standard for Supplementary Protectors for Use in Electrical Equipment
Partners CSA_Certification_Body Designed according to CSA C22.2 No. 235 Supplementary Protectors
Partners CCC_Certification_Body Designed according to GB 17701 Circuit-breaker for equipment


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

040170040000008034
LOADING...

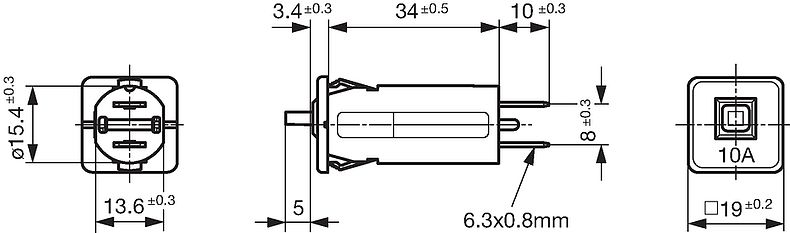

Dimension [mm]

​T9-611

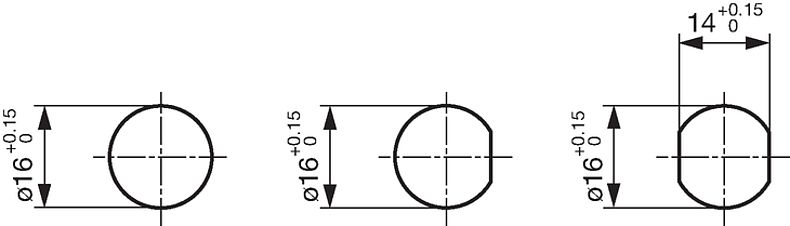

Pannel thickness s = 0.8 - 2.0 mm


Approval Rated current Rated Voltage AC Rated Voltage DC
curus UL 1077 3 - 12 A 14 - 16 A   240 V   32 V
curus CSA 22.2 235 3 - 12 A 14 - 16 A 240 V 240 V 48 V 32 V
VDE IEC 60934 3 - 12 A 14 - 16 A 240 V 240 V 48 V 32 V
ccc_s_Tabelle GB 17701 3 - 12 A 14 - 16 A 240 V 240 V 48 V 32 V

Typical internal resistance per pole

Rated Current [A] Internal Resistance [mΩ]
3 65.0
4 21.6
5 23.6
6 16.3
7 15.3
8 12.9
10 7.3
12 7.0
14 4.8
15 4.3
16 3.9

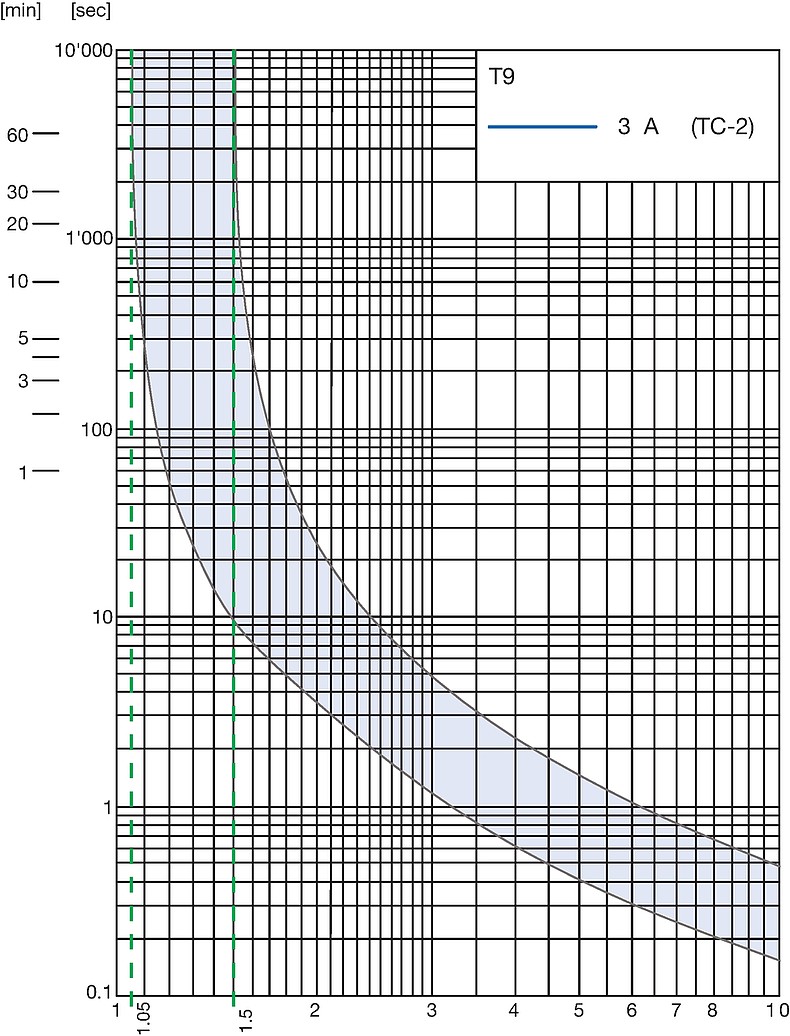

Time-Current-Curves

Time in Seconds
Multiple of Rated Current In


Ambient temperature +23°
Time in Seconds
Multiple of Rated Current In


Ambient temperature +23°

Effect of ambient temperature

Ambient Temperature [°C] Correction factor
-5 0,85
+10 0,95
+23 1,00
+40 1,08
+60 1,21

Short Table of Variants T9-611 Open complete table T9-611

Mounting Front printing Rated current

Rated current


Max. rated current according to IEC vs. UL/CSA- approval for the listed type.
Further details see data sheet

Order Number

Variant Details


The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...
    [A]

Snap-in mounting from front side Rated current printed on front 3.0 A 4404.0018  A  ...
Snap-in mounting from front side Rated current printed on front 4.0 A 4404.0001  A  ...
Snap-in mounting from front side Rated current printed on front 5.0 A 4404.0007  A  ...
Snap-in mounting from front side Rated current printed on front 6.0 4404.0002  A  ...
Snap-in mounting from front side Rated current printed on front 7.0 A 4404.0009  A  ...
Snap-in mounting from front side Rated current printed on front 8.0 A 4404.0003  A  ...
Snap-in mounting from front side Rated current printed on front 10.0 A 4404.0004  A  ...
Snap-in mounting from front side Rated current printed on front 12.0 A 4404.0005  A  ...
Snap-in mounting from front side Rated current printed on front 14.0 A 4404.0008  A  ...
Snap-in mounting from front side Rated current printed on front 15.0 A 4404.0010  A  ...
Snap-in mounting from front side Rated current printed on front 16.0 A 4404.0006  A  ...
Snap-in mounting from front side Rated current printed on front 90° shifted 4.0 A 4404.0066  A  ...
Snap-in mounting from front side Rated current printed on front 90° shifted 8.0 A 4404.0069 ...
Snap-in mounting from front side Rated current printed on front 90° shifted 10.0 A 4404.0059  A  ...
Snap-in mounting from front side Rated current printed on front 90° shifted 12.0 A 4404.0061 ...
Snap-in mounting from front side Rated current printed on front 90° shifted 16.0 A 4404.0062 ...
Snap-in mounting from front side Rated current not printed on front 3.0 A 4404.0088 ...
Snap-in mounting from front side Rated current not printed on front 4.0 A 4404.0089 ...
Snap-in mounting from front side Rated current not printed on front 5.0 A 4404.0090 ...
Snap-in mounting from front side Rated current not printed on front 6.0 4404.0091 ...
Snap-in mounting from front side Rated current not printed on front 7.0 A 4404.0065 ...
Snap-in mounting from front side Rated current not printed on front 8.0 A 4404.0092 ...
Snap-in mounting from front side Rated current not printed on front 10.0 A 4404.0093 ...
Snap-in mounting from front side Rated current not printed on front 12.0 A 4404.0063 ...
Snap-in mounting from front side Rated current not printed on front 14.0 A 4404.0094 ...
Snap-in mounting from front side Rated current not printed on front 15.0 A 4404.0095 ...
Snap-in mounting from front side Rated current not printed on front 16.0 A 4404.0087 ...

Most Popular.

Packaging Unit 100 Pcs
