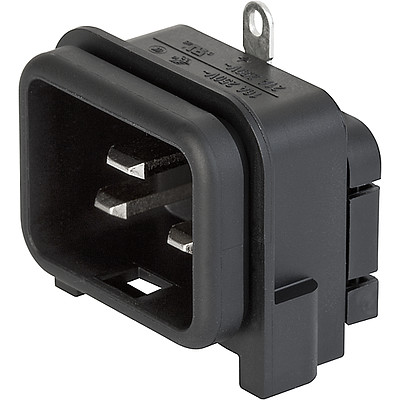

GSP4 Split panel mounting  Snap-in PCB 1.6 mm Additional earth terminal 90  to connector axis en IM0012367
Split panel mounting, Snap-in PCB 1.6 mm,
Additional earth terminal 90° to connector axis

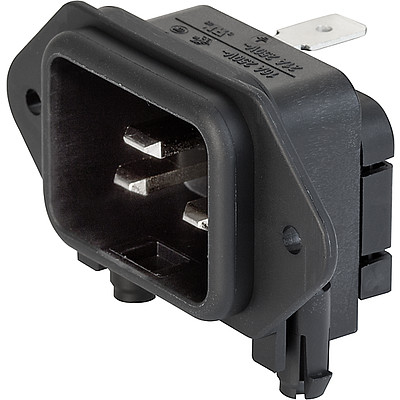

GSP4 Split panel mounting  Screw-on PCB Additional earth terminal 90  to connector axis en IM0012368
Split panel mounting, Screw-on PCB,
Additional earth terminal 90° to connector axis

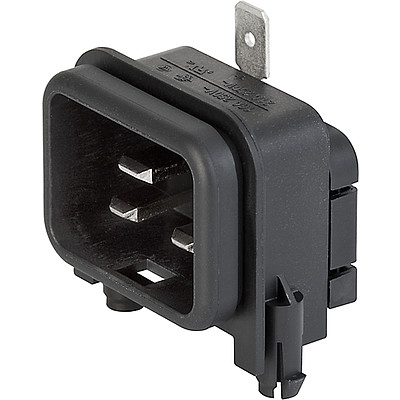

GSP4 Screw-on panel mounting  Snap-in PCB 1.6 mm Additional earth terminal in connector axis en IM0012369
Screw-on panel mounting,
Snap-in PCB 1.6 mm,
Additional earth terminal in connector axis
GSP4 Split panel mounting  Snap-in PCB 1.6 mm Additional earth terminal 90  to connector axis en IM0012367
GSP4 Split panel mounting  Screw-on PCB Additional earth terminal 90  to connector axis en IM0012368
GSP4 Screw-on panel mounting  Snap-in PCB 1.6 mm Additional earth terminal in connector axis en IM0012369

Series: GSP4

Free Sample Request

IEC Appliance Inlet C20 or C24, Split panel or screw-on mounting, PCB Terminal

11 Variants


Connectors (Inlets/Outlets)

C20
Connector Logo
70° C
C24
Connector Logo
70° C

Description GSP4

Description

  • Panel mount: Splitpanel (sandwich) or screw-on from backside
  • Appliance Inlet, Pin temperature 70 °C, protection class I or II
  • V-Lock notch standard
  • Additional ground terminal
  • Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
  • Variants with protection cover on rear side
  • For PCB mounting: screw-on or snap-in 1.6 mm

Other versions on request

  • Further colours on request
Date Category Subcategory Language Title Download
09/08/2018
Products White Paper English White Paper Cord retention
09/08/2018
Products Flyers English Flyer V-Lock cord-retention safeguard
13/07/2018
Products PCN English All connectors PG07 PCN Change of configuration code PG07
06/04/2018
Products White Paper English White Paper Mating Connectors English
15/12/2017
Products White Paper English White Paper Components and IEC 60335-1
24/11/2017
Products White Paper English White Paper Components and IEC 60335-1
20/04/2016
Products PCS English GSP4 Split panel / PC II
20/04/2016
Products PCS English GSP4 Rear panel / PC II
20/04/2016
Products PCS English GSP4 Split panel / PC I
20/04/2016
Products PCS English GSP4 Rear panel / PC I
20/04/2016
Products PCN English GSP4

Ratings IEC

Ratings IEC


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.

General information on electrical characteristics colors of fuses

Ratings IEC, UL/CSA
General information on the rated current and the rated voltage at EMC products

Rated Voltage
Rated current
The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.

Search approval information for different families


Approvals

16 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.

General information on electrical characteristics colors of fuses

Ratings IEC, UL/CSA
General information on the rated current and the rated voltage at EMC products

Rated Voltage
Rated current
The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.

Search approval information for different families


Approvals

20 A / 250 VAC; 60 Hz

Dielectric Strength

Dielectric Strength


Information abou the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.


Dielectric Strength

> 1.5 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

IP-Protection


The IP code consists of a two-digit number, which indicates the respective degree of protection.

The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects.

Details about IP protection degree can be looked up in the general product information

IP-Protection

from front side IP 20 acc. to IEC 60529

Insulation cover

Protection Class


Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information


Insulation cover

Suitable for appliances with protection class I or II acc. to IEC 61140

Terminal

Terminals


Terminals according IEC Standard.

Detailed information about terminals can be looked up in the date sheet or in the general product information.

Terminal

PCB terminals , additional ground terminal

Panel Thickness S

Panel Thickness S



See details in drawing

Snapper

for sandwich mounting 1/1.2/1.5/2/2.5/3/4 mm

Material: Housing

Thermoplastic, black, UL 94V-0

appliance inlet/-outlet

appliance inlet/-outlet


Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42

Details on connectors and their names can be found in the general product information

Appliance Couplers
Mating Connectors
Term explanation
Special Connector Designs

C20 or C24 acc. to IEC 60320-1
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 16 A, Protection Class I or II

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: GSP4

Approval Logo Certificates Certification Body Description
Approval marks ENEC 10 VDE Certificate Number: 40035923
Approval marks cURus UL UL File Number: E96454
Approval marks ccc CQC CCC Certificate Number: 2013010204591237


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Partners UL_Certification_Body Designed according to UL 60320-1 Standard for Attachment Plugs and Receptacles
Partners CSA_Certification_Body Designed according to CSA C22.2 no. 60320-1 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Designed for applications acc. IEC/UL 60950 IEC 60950-1 includes the basic requirements for the safety of information technology equipment.
Partners IEC_Certification_Body Designed for applications acc. IEC 60335-1 Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG EU Directive RoHS 2011/65/EU
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
 V_Lock_Logo SCHURTER AG V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
Environment_Safety Glow_Wire_Proof SCHURTER AG Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.

Preview


Picture(s) Selection of product pictures to display a specific variant of the type

Type


Type Corresponds to a product series and includes various distinct variants. On the type of descriptive data are summarized, eg in the data sheet

Order Number


Order Number Unique part number for placing an order

Configuration key


Configuration key The configuration key of a product consists of the composite key values, which describe the different kinds of attribut distinction.

Comment

Model Description


Model Description Abbreviated description of the CAD model

IGS


IGS Also mentioned as IGES ( Initial Graphics Exchange Specification). Common program indipendent interchange format for 3D CAD data.

Step


Step Also mentioned as STEP ( Standard for the Exchange of Product Model Data). Common program indipendent interchange format for 3D CAD data standardized according ISO standard.

Parasolid


Parasolid Parasolid modeling kernel is a 3D CAD systems. It is developed by a separate business unit within the Unigraphics Solutions (UGS), now Siemens PLM Software.

DXF


DXF (Drawing Interchange Format) is a specified by the Autodesk file format for CAD data exchange, and was developed for the 2D-CAD program AutoCAD. A DXF file describes a CAD model as plain text to the ASCII standard.

GSP4
GSP4.0205.13 GSP4.0207.13 GSP4.0207.16 GSP4.020E.13 GSP4.0210.13 GSP4.0217.13 GSP4.0217.16
GSP4.02XX.XX GSP4.09XX.XX CAD-Model shows variant split panel 1.0mm panel thickness, protection class I, protective conductor with quick connect terminal 6.3x0.8mm in appl. connector axis, mounted insulation cover
GSP4
GSP4.0107.13 GSP4.010C.11 GSP4.010C.13
GSP4.00XX.XX GSP4.01XX.XX CAD-Model shows variant split panel 1.0mm panel thickness, protection class I, protective conductor with quick connect terminal 6.3x0.8mm in appl. connector axis, mounted insulation cover
GSP4
GSP4.0205.10 GSP4.0207.10 GSP4.020C.10 GSP4.0217.10
GSP4.02XX.X0 GSP4.09XX.X0 CAD-Model shows variant protection class I, protective conductor with quick connect terminal 6.3x0.8mm in appl. connector axis, mounted insulation cover
GSP4
GSP4.0107.10
GSP4.00XX.X0 GSP4.01XX.X0 CAD-Model shows variant protection class I, protective conductor with quick connect terminal 6.3x0.8mm in appl. connector axis, mounted insulation cover

Dimensions [mm]

Split panel mounting / Snap-in on PCB

Dimension␉␉␉A␉B␉Y␉Z
Quick connect 6.3x0.8 mm␉40.3␉15.0␉30.0␉25.9
Solder␉␉␉37.3␉15.0␉30.0␉22.9

2) with protection cover␉
Split panel mounting / Screw-on mounting on PCB

Dimension␉␉␉A␉B␉Y␉Z
Quick connect 6.3x0.8 mm␉40.3␉15.0␉30.0␉25.9
Solder␉␉␉37.3␉15.0␉30.0␉22.9

1) Mounting screw torque max. 0.3 Nm
2) with protection cover␉
Screw-on rear side / Snap-in on PCB

Dimension␉␉␉A␉B␉Y␉Z
Quick connect 6.3x0.8 mm␉40.3␉17.1␉30.0␉28.0
Solder␉␉␉37.3␉17.1␉30.0␉25.0

2) with protection cover␉
Screw-on rear side / Screw-on mounting on PCB

Dimension␉␉␉A␉B␉Y␉Z
Quick connect 6.3x0.8 mm␉40.3␉17.1␉30.0␉28.0
Solder␉␉␉37.3␉17.1␉30.0␉25.0

1) Mounting screw torque max. 0.3 Nm
2) with protection cover␉

Short Table of Variants GSP4


Protection Class Panel mounting Panel Thickness s [mm] Order Number

Variant Details


The link on the respective order number refers to a separat tab with specific detailed information .

This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.

This approach offers to use generic alias link to the product details:

www.schurter.xx/art/ [Order Number]

where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:

- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle

Contact us for availability on other product variants, lead-times vary:

Contact-Form
Availability for all products can be searched real-time. Enter part number and required quantity:

Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links reffers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.

The
Distributor Stock Check

Stock Check Distributor

...


I Sandwich 1.0 GSP4.010C.11  A  ...
I Sandwich 1.5 GSP4.0107.13 ...
I Sandwich 1.5 GSP4.010C.13  A  ...
I Sandwich 1.5 GSP4.0207.13  A  ...
I Sandwich 3.0 GSP4.0207.16 ...
I Sandwich 3.0 GSP4.0217.16  A  ...
I Screw - GSP4.0107.10 ...
I Screw - GSP4.0205.10  A  ...
I Screw - GSP4.0207.10 ...
I Screw - GSP4.0217.10 ...
II Sandwich 1.5 GSP4.0210.13  A  ...

Most Popular.

With screw mounting on PCB, 2 screws are included
